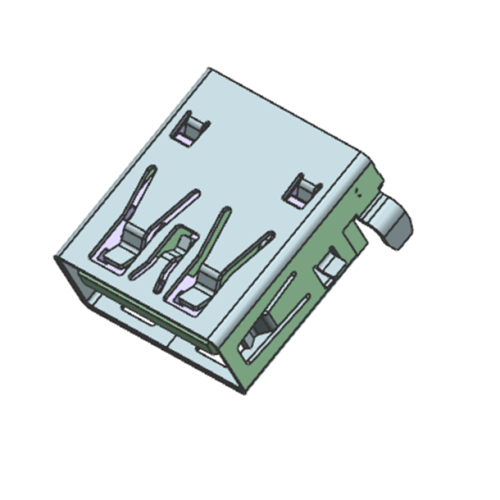

USB Type Receptacle Sink SMT With Fork Pegs

Get Latest Price

Min. Order:

Transportation:

Ocean,Air

Port:

shenzhen,huizhou

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: U3AFM05

Brand: Antenk

Supply Ability & Additional Information

Packaging: tray packing

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 100000/month

Certificate: ISO9001/ISO14001

Port: shenzhen,huizhou

Packaging & Delivery

Package Type:: tray packing

1.product introduction

The Universal Serial Bus (USB) connector is an interface standard used to connect computers to external devices.It allows the connection of external devices such as mice, keyboards, storage devices, printers, etc., through a single port.With convenience and reliability, USB connectors are widely used in personal computers and mobile devices.

Today, various device types use Universal Serial Bus (USB) as the standard connection type.They have created a compact, low-cost interface that facilitates computer communication and plays a pivotal role in the electrical appliance industry.

At present, there are different types of USB connectors available, and have different functional characteristics, mainly divided into the following:

USB Type-A: Universal, common USB interface, often used to connect computers or chargers.

USB Type-B: Mainly used to connect external devices, such as printers or scanners.

USB Type-C: The latest USB interface standard, with higher data transfer speed and more features, such as two-way data transfer and charging.

Micro-USB: Commonly used in mobile devices such as smartphones and tablets.

Mini-USB: A smaller USB port, commonly used in digital cameras and MP3 players.

Lightning cable: It is a relatively durable data cable. The exterior of the data cable is made of high-strength steel material, and the durability reaches industrial level.

2.product parameter

1.MATERIAL:

1.1 INSULATOR:HIGH TEMPERATURE PLASTIC UL 94 V-0;

1.2 CONTACT:COPPER ALLOY(T=0.20mm)

1.3 SHELL:SUS201(T=0.30mm)

2.ELECTRICAL CHARACTERISTICS;

2.1 CONTACTRESISTANCE:30mΩ Max

2.2 CONTACT CURRENT RATING:1.5A

2.3 DIELECTRIC WITHSTANDING VOLTAGE:500 V R.M.S.

2.4 INSULATION RESISTANCE 100 MEGOHMS Min

2.5 OPERATING TEMPEROTURE:-40°C ～ 85°C

3 MECHANICAL CHARACTERISTICS:

3.1 MATING FORCE:35 N Max

3.2 UNMATED FORCE:10 N Min INITIAL; 8 N Min AFTER TEST

3.3 DURABILITY:5,000 CYCLES

4.PLATING

4.1 TERMINAL CONTACT:(SEE TAB) GOLD PLATING ALL OVER 50u"

MIN NICKEL AND 80u"MIN Tin ALL OVER 50u" MIN NICKEL

ON SOLDER AREA

4.2 SHELL:50u"MIN.NICEL ALL OVER

3.product picture

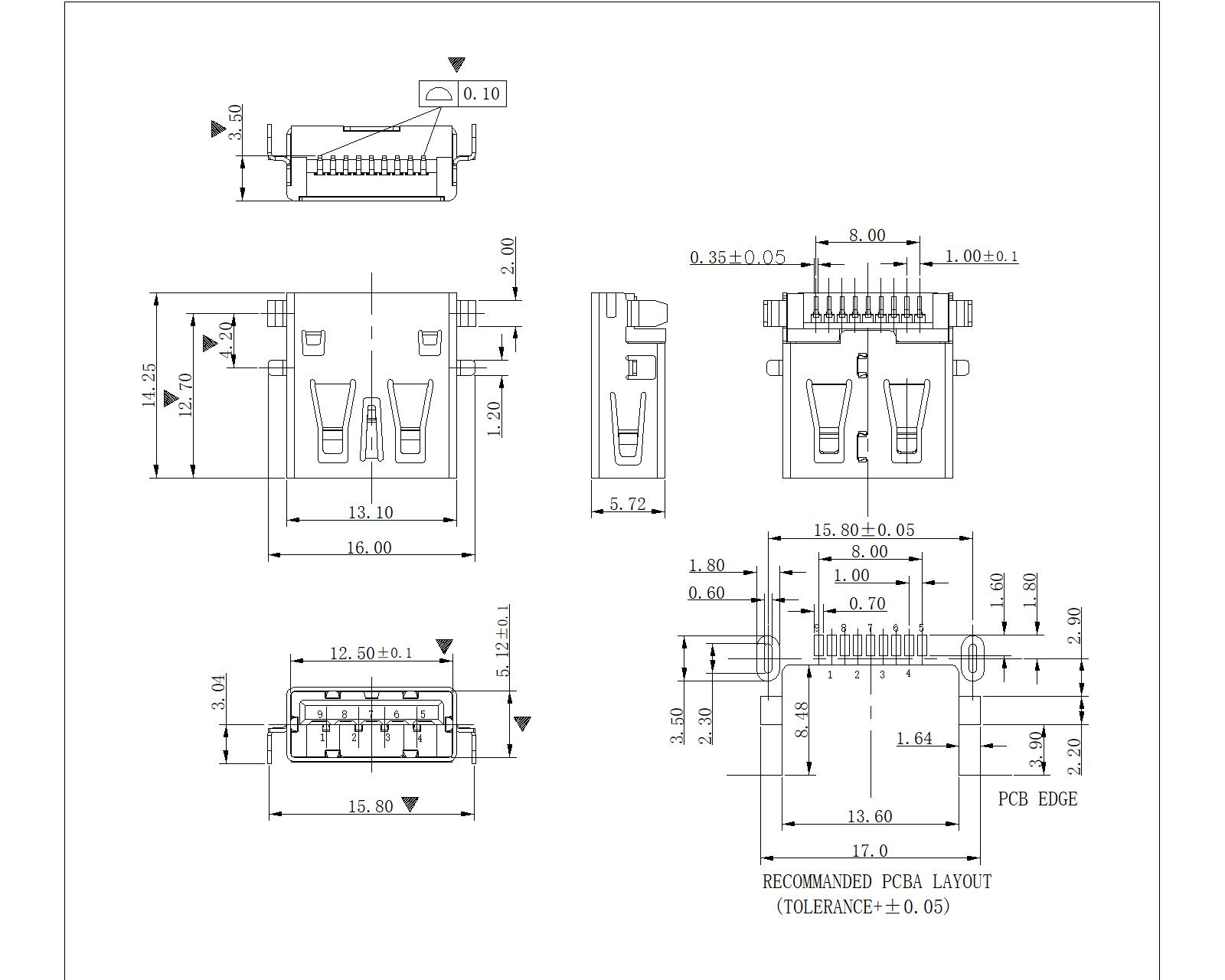

U3AFM05 USB 3.0 A Type Receptacle Sink SMT Wi

4.FAQ

Q: Do you have the test and audit service?

A: Yes, we can assist to get the designated test report for product and the designated factory audit report.

Q: What’s is your shipping service?

A: We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the shipping port.

Q: Can you provide the FBA shipping service?

A: Yes, we have the good experience in providing the professional FBA service.
