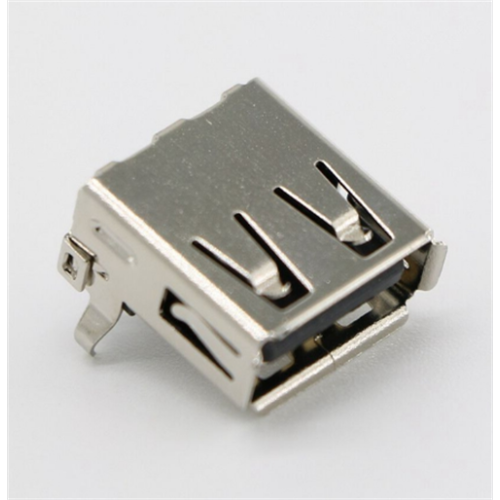

USB3.0 A FEMALE RIGHT ANGLE,Heighten type

Get Latest Price

Min. Order:

Transportation:

Ocean,Air

Port:

shenzhen,huizhou

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: U3AFR05

Brand: Antenk

Supply Ability & Additional Information

Packaging: tray packing

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 100000/month

Certificate: ISO9001/ISO14001

Port: shenzhen,huizhou

Packaging & Delivery

Package Type:: tray packing

1.product introduction

The Universal Serial Bus (USB) connector is an interface standard used to connect computers to external devices.It allows the connection of external devices such as mice, keyboards, storage devices, printers, etc., through a single port.With convenience and reliability, USB connectors are widely used in personal computers and mobile devices.

Today, various device types use Universal Serial Bus (USB) as the standard connection type.They have created a compact, low-cost interface that facilitates computer communication and plays a pivotal role in the electrical appliance industry.

At present, there are different types of USB connectors available, and have different functional characteristics, mainly divided into the following:

USB Type-A: Universal, common USB interface, often used to connect computers or chargers.

USB Type-B: Mainly used to connect external devices, such as printers or scanners.

USB Type-C: The latest USB interface standard, with higher data transfer speed and more features, such as two-way data transfer and charging.

Micro-USB: Commonly used in mobile devices such as smartphones and tablets.

Mini-USB: A smaller USB port, commonly used in digital cameras and MP3 players.

Lightning cable: It is a relatively durable data cable. The exterior of the data cable is made of high-strength steel material, and the durability reaches industrial level.

2.product parameter

1.MATERIAL:

(1)INSULATOR: LCP UL 94V-0

(2)CONTACT: BRONZE(T=0.2mm)

(3)SHELL: BRASS(T=0.3mm)

2.MECHANICAL CHARACTERISTICS:

(1)MATING FORCE: 3.57kg MIN

(2)UNMATING FORCE: 1.02kg MIN

3.PALTING:

1)TERMINAL: GOLD FLASH ALL OVER 50u"

MIN NICKEL AND 100u"MIN TIN

(2)SHELL: 100uMIN NICEL ALL OVER

3.product picture

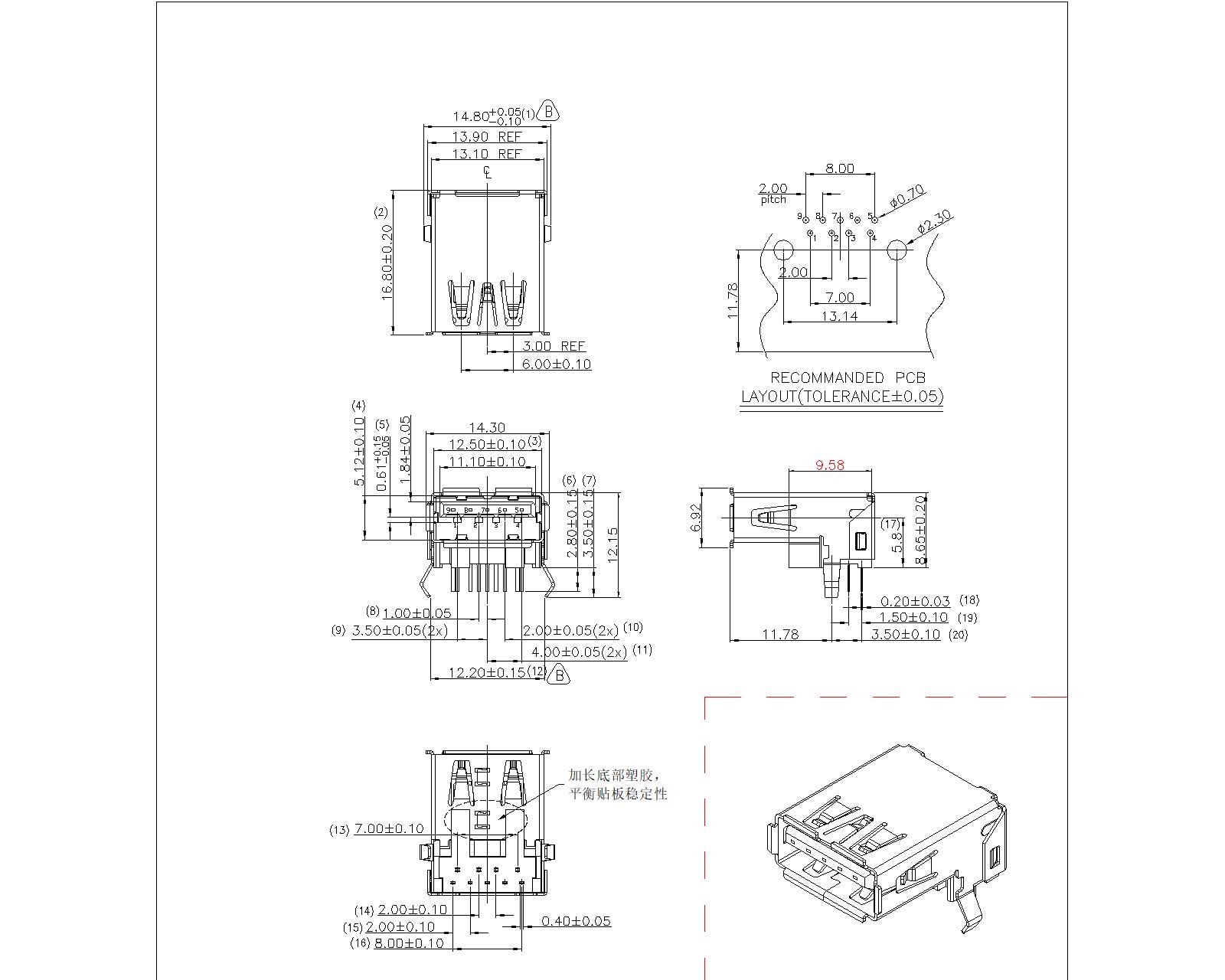

U3AFR05 USB3.0 A FEMALE RIGHT ANGLE DIP,Heigh

4.FAQ

Q: What’s your tem of the delivery?
A: Our ordinary delivery term is FOB Xiamen. We also accept EXW, CFR, CIF, DDP, DDU etc. We’ll offer you the shipping charges and you can choose the one which is the most convenient and effective for you.

Q: Which shipping way can you provide?

A: We can provide shipping by sea, by air and by express.

Q: What’s your after-sale service?

A: Our quality warranty period is one year. Any quality problem will be solved to customer satisfactions.
