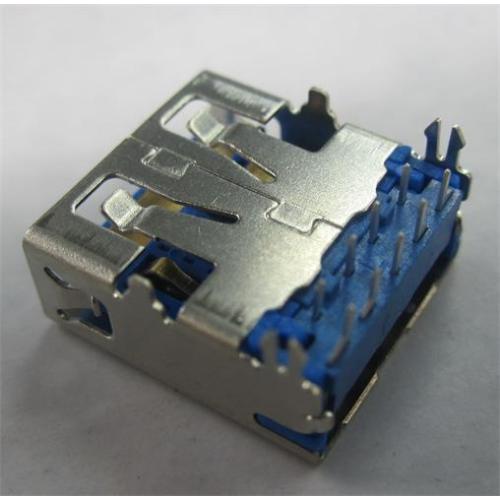

USB 3.0 A Angel DIP short type

Get Latest Price

Min. Order:

Transportation:

Ocean,Air

Port:

shenzhen,huizhou

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: U3AFR04

Brand: Antenk

Supply Ability & Additional Information

Packaging: tray packing

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 100000/month

Certificate: ISO9001/ISO14001

Port: shenzhen,huizhou

Packaging & Delivery

Package Type:: tray packing

1.product introduction

The Universal Serial Bus (USB) connector is an interface standard used to connect computers to external devices.It allows the connection of external devices such as mice, keyboards, storage devices, printers, etc., through a single port.With convenience and reliability, USB connectors are widely used in personal computers and mobile devices.

Today, various device types use Universal Serial Bus (USB) as the standard connection type.They have created a compact, low-cost interface that facilitates computer communication and plays a pivotal role in the electrical appliance industry.

At present, there are different types of USB connectors available, and have different functional characteristics, mainly divided into the following:

USB Type-A: Universal, common USB interface, often used to connect computers or chargers.

USB Type-B: Mainly used to connect external devices, such as printers or scanners.

USB Type-C: The latest USB interface standard, with higher data transfer speed and more features, such as two-way data transfer and charging.

Micro-USB: Commonly used in mobile devices such as smartphones and tablets.

Mini-USB: A smaller USB port, commonly used in digital cameras and MP3 players.

Lightning cable: It is a relatively durable data cable. The exterior of the data cable is made of high-strength steel material, and the durability reaches industrial level.

2.product parameter

1.MATERIAL:

1.1 INSULATOR:HIGH TEMPERATURE PLASTIC LCP UL 94V-0;BLUE/BLACK

1.2 CONTACT:Phosphor Copper C5210 T=0.20±0.01mm

1.3 SHELL:Brass H65 T=0.3±0.01mm

2.ELECTRICAL CHARACTERISTICS;

2.1 CONTACT RESISTANCE:30mΩ Max

2.2 CONTACT CURRENT RATING:1.5A

2.3 DIELECTRIC WITHSTANDING VOLTAGE:500 V AC R.M.S.

2.4 INSULATION RESISTANCE:100 MEGOHMS Min

2.5 OPERATING TEMPEROTURE:-40°C ～ 85°C

3.MECHANICAL CHARACTERISTICS:

3.1 MATING FORCE:35 N Max

3.2 UNMATED FORCE:10 N Min INITIAL; 8 N Min AFTER TEST

3.3 DURABILITY:5,000 CYCLES

4.PLATING

4.1 TERMINAL CONTACT:ALL OVER 50u" MIN NICKEL,CONTACT AREA OF GOLD PLATED AU 1U" MIN, SOLDER AREA OF GOLD PLATED TIN 50U" MIN.

4.2 SHELL:50u"MIN.NICEL ALL OVER

5.Materials meet the RoHS requirements

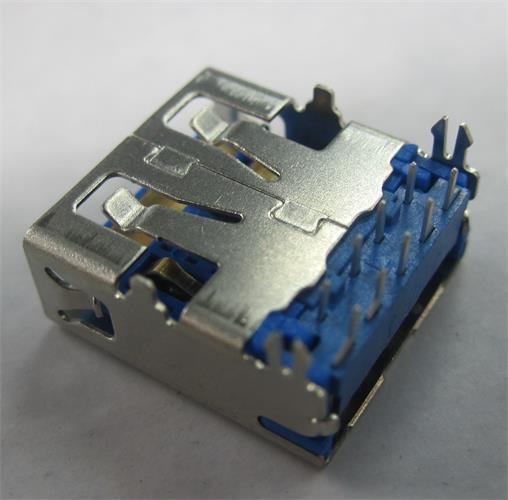

3.product picture

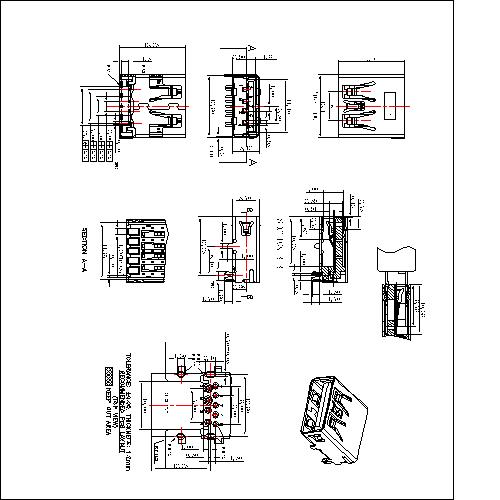

U3AFR04 USB 3.0 A TYPE Receptacle Angel DIP s

4.FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

Q: When can I get the price?

A: Usually we quote within 8 hours after we get your inquiry.
