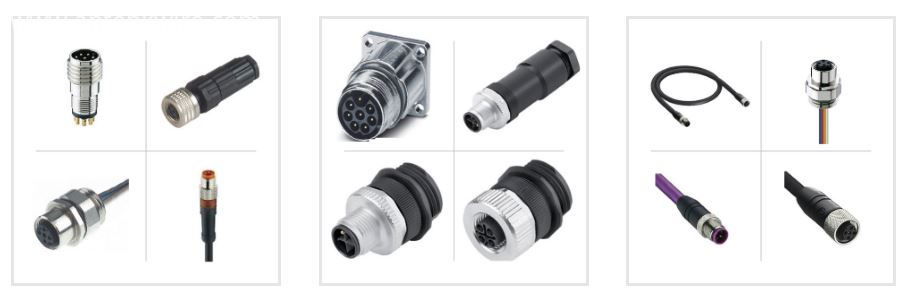

Circular Automation Connectors Antenk `s M-Series connector range is the ideal connectivity solution for industrial automation technologies that require fast, secure and reliable connections with a high degree of environmental protection. Our automation interconnect range includes field-attachable circular connectors with industry standard M5, M8, M12, M16 & M23 threads in addition to panel mount receptacles, overmolded cable variants and power/signal distribution units.
I
ndustrial & Automation Circular Connectors Application:
Factory Automation
Robotics
Measurement & Instrumentation
Manufacturing
Process Control
Medical
Food & Beverage Processing
Industrial Network
M5 Connectors The most compact connector type in the M-Series range, our waterproof M5 sensor connectors come in straight and angled forms with PVC or PUR overmolded
Cable Connector options and a variety of panel mount receptacles.
With a screw coupling mechanism and IP67 rating, this M5 circular connector product line is particularly suited to automotive, process control, commercial electronics & instrumentation applications that require reliable and robust miniature sensors.
M8 circular connectors Our M8 circular connectors and cables are designed to fulfil the ever growing demand for sensor, actuator and data connections in process control, industrial machinery and factory automation applications.
These compact sensor and automation connectors with screw lock coupling are mechanically and chemically robust, easy to install, minimise downtime and help to increase production efficiency. Rated to the IP67 standard, our M8 Series ensure safe, secure and reliable protection from liquids, dust, moisture and dirt whilst also providing great resistance against vibrations to ensure that connections are not disrupted.
M8 connectors Key Features Straight and right-angled configurations
Quick and secure screw coupling mechanism
A and B coded
Environmental protection class IP67
Field installable, panel mount and overmolded connectors
PVC or PUR jacketed cable variants with lengths 1m – 15m
3, 4 or 5 contacts
Metal and plastic shell options
M12 connectors M12 connectors are established as one of the most reliable and efficient connection standards for Industrial Machinery and Factory Automation applications. With a small footprint, extremely low failure rate and high performance capabilities, this range is ideal not only for sensor connections but also for various fieldbus systems.
With a high degree of mechanical and electrical stability, our M12 connectors and cables provide a cost effective and flexible plug & play connectivity solution for onsite installations, helping to decrease downtime in process control, manufacturing automation and industrial instrumentation applications.
M12 Circular connectors Key Features Industry standard screw locking mechanism
IP67 degree of protection
A, B, D and X Coded versions
Field installable, cable and panel mount options
Plastic and metal, straight and right-angled variants
Pole variants from 3 – 12
Shielded options
Overmolded PVC or PUR cable connectors

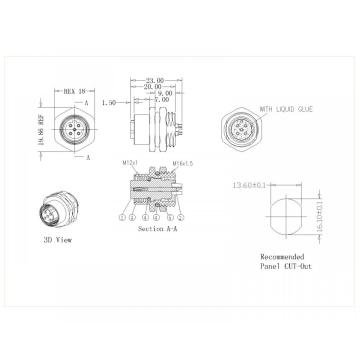

M16 Connectors With a rugged metal housing and environmental protection rating of IP67 when mated, this robust M16
Din Connector range is an ideal solution for ensuring that power and signal connections are not compromised in harsh environments and industrial applications.
M16 Circular Connectors Key Features Screw locking compliant with DIN EN 61076-2-106
IP67 degree of protection
Robust metal connector shells
A-Coded field installable and panel mount variants
Pole variants from 3 – 12
Excellent EMI shielding
M23 Connectors Typically used for providing high performance, reliable and robust connections in commercial and industrial automation applications, these IP67 rated signal and power connectors offer a high degree of protection against environmental factors such as water, dirt and moisture.
Antenk`s range of M23 Connectors includes field installable male and female connectors and front panel mount options from 12-pole to 19-pole in straight and right angle versions.
M23 Circular Connectors Key Features A-Coded
Straight and angled configurations
Male and female variants, 12 or 19 pin
Robust metal housing
IP67 protection rating (when mated)
Voltages up to 200 V and currents up to 8 A
