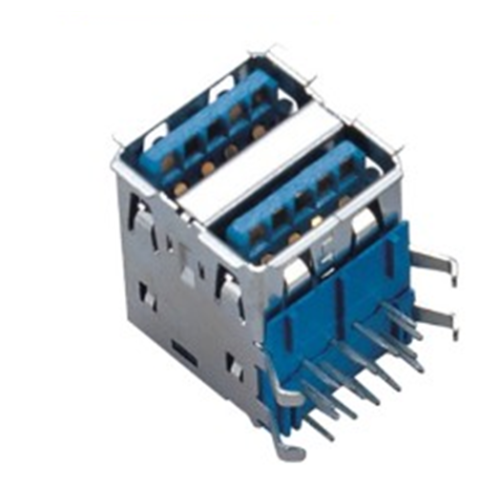

USB 3.0 A Type Receptacle Double Angle DIP
  • USB 3.0 A Type Receptacle Double Angle DIP

USB 3.0 A Type Receptacle Double Angle DIP

1
Min. Order:
1
Transportation:
Ocean,Air
Port:
shenzhen,huizhou
Share:
Chat Now
  • Product Description
< >
Overview
Product Attributes

Model No.: U3AFR03

Brand: Antenk

Supply Ability & Additional Information

Packaging: tray packing

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 100000/month

Certificate: ISO9001/ISO14001

Port: shenzhen,huizhou

Packaging & Delivery
Package Type:
tray packing
1.product introduction
The Universal Serial Bus (USB) connector is an interface standard used to connect computers to external devices.It allows the connection of external devices such as mice, keyboards, storage devices, printers, etc., through a single port.With convenience and reliability, USB connectors are widely used in personal computers and mobile devices.
Today, various device types use Universal Serial Bus (USB) as the standard connection type.They have created a compact, low-cost interface that facilitates computer communication and plays a pivotal role in the electrical appliance industry.
At present, there are different types of USB connectors available, and have different functional characteristics, mainly divided into the following:
USB Type-A: Universal, common USB interface, often used to connect computers or chargers.
USB Type-B: Mainly used to connect external devices, such as printers or scanners.
USB Type-C: The latest USB interface standard, with higher data transfer speed and more features, such as two-way data transfer and charging.
Micro-USB: Commonly used in mobile devices such as smartphones and tablets.
Mini-USB: A smaller USB port, commonly used in digital cameras and MP3 players.
Lightning cable: It is a relatively durable data cable. The exterior of the data cable is made of high-strength steel material, and the durability reaches industrial level.

2.product parameter
Current Rating：　             1.5A Max
Contact Resistance：           50 milliohms MAX
Dielectric Withstanding Voltage: 500V AC AT Sea Levol
Insulation Resistance：        1000 Megaohms MIN
Housing：Temperature Thermoplastics,PBT UL 94V-0
Contact: Copper Alloy T=0.20mm Piated Gold in Mating Area;
                Tin On Solder Talls
Shell:Iron  T=0.30mm Nickel/Plating


3.product picture
U3AFR03 USB 3.0 A Type Receptacle Double Angl

4.FAQ

Q: Are you trading company or manufacturer?

A: We are professional manufacturer specialized in orthopedic and sport products. And we trade our products with our clients directly.

Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.

Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request.
