Home > Products > USB Connector > USB 3.0 Interfaces Section > Micro USB 3.0 Male DIP Type Connector

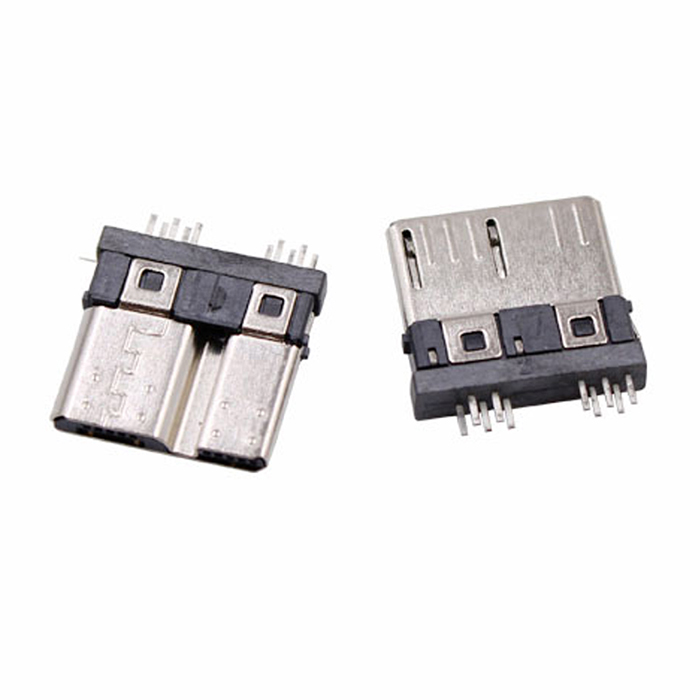

Micro USB 3.0 Male DIP Type Connector

"Finally, a USB connector that won't play hide-and-seek with your laptop!"

  • $500
    ≥1000
    Piece/Pieces
Payment Type:
T/T,Paypal
Incoterm:
FOB,CIF,EXW
1000
Min. Order:
1000 Piece/Pieces
Transportation:
Ocean,Air,Express
Port:
Shenzhen
Share:
Chat Now
  • Product Description
Overview
Product Attributes

Model No.MU3MS04-XXXXX

BrandAntenk

Place Of OriginChina

TypeUsb Adapter

CertificationUl

Supply Ability & Additional Information

Packagingbag packing,Tube packing, reel packing

Productivity2000K/Month

TransportationOcean,Air,Express

Place of OriginChina

Supply Ability2000K/Month

CertificateISO9001-2015

HS Code853609000

PortShenzhen

Payment TypeT/T,Paypal

IncotermFOB,CIF,EXW

Packaging & Delivery
Selling Units:
Piece/Pieces
Package Type:
bag packing,Tube packing, reel packing

Introducing the "Micro USB 3.0 Male DIP Type Connector" - the superhero of all connectors! This little guy is here to save the day, connecting your devices faster than a speeding bullet! With its sleek design and lightning-fast data transfer speeds, it'll make your old USB 2.0 connectors look like snails in a race. Need to charge your phone in a flash? Boom, done! Want to transfer files at the speed of light? Consider it done! This connector is so efficient, it practically has its own cape. So, say goodbye to slow connections and hello to the superhero of connectors - the Micro USB 3.0 Male DIP Type Connector!

Micro USB 3.0 Male DIP Type Connector



Specifications

 Contact current rating:0.5 A
 Contact  voltage rating:250V AC
 Contact resistance:30 milliohms max
 Dielectaic withsanding voltage:500V AC RMS
 Insulation resistance: 5000 megohms min
 Mechanical  characteristics durability:5000 cycles

 Environment  characteristics:

Operating temperature:-55℃ ~ +105℃

 Intermatable  with standard H/D 15P male D-sub
 Recommanded PCB thickness 1.00~1.20mm

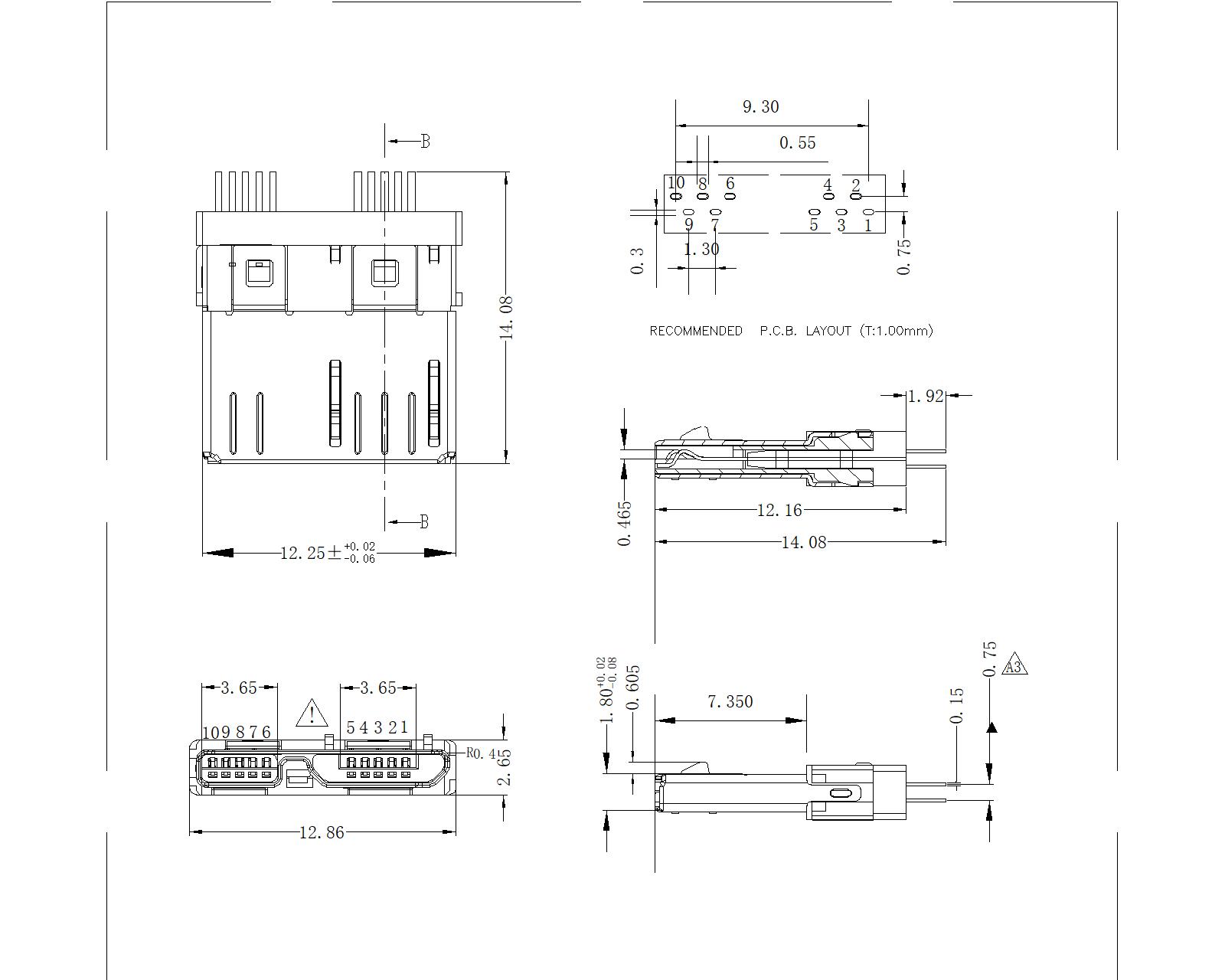

MU3MS04 Micro USB 3.0 B male DIP
