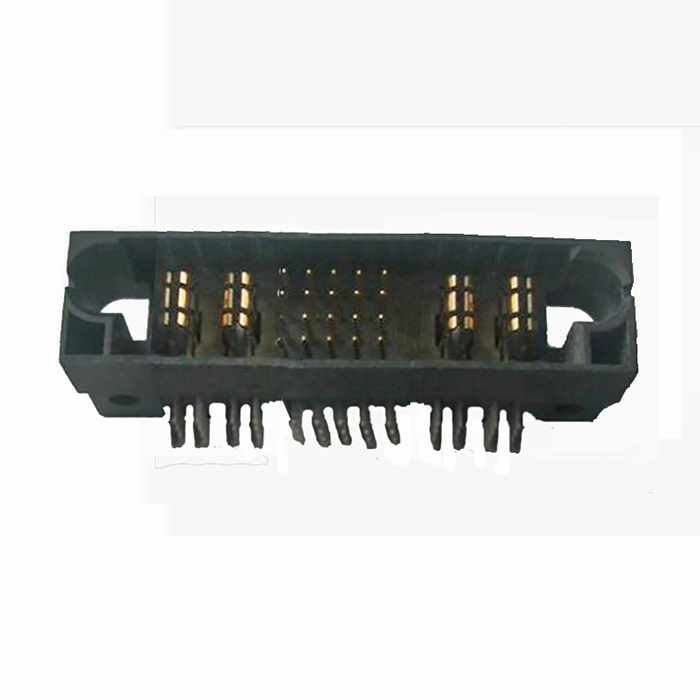

6.35mm 20P Male Straight DIP Power Connector

Introducing our latest innovation, the 6.35mm 20P Male Straight DIP Power Connector! Designed to revolutionize power connectivity, this cutting-edge connector ensures seamless and reliable power transmission in any application. With its male straight DIP design, it effortlessly fits into various devices, providing a secure and stable connection. Crafted with precision and durability in mind, this connector guarantees long-lasting performance and exceptional conductivity. Whether you're in the electronics, automotive, or industrial sector, our 6.35mm 20P Male Straight DIP Power Connector is the ultimate solution for all your power needs. Upgrade your power connectivity today and experience the difference!

6.35mm 20P Male Straight DIP Power Connector

Specifications:
1.Material:
 A.Terminal:Phosphor Copper C5191
 B.Housing:PPA UL94V-0 Color: Black
2.Plating:
 Signal Contact: 30u-50u Nickel Plated, 1U Gold Plated
 Power Contact: 30u-50u Nickel Plated, 1U Gold Plated3.
3.Electrical Performance Requirements:
 Rated Voltage: Signal Contact: 50V; Power Contact: 250V
 Rated Current: Power Contact Max 40A; Signal Contacts Max 2.5A;
 Withstand  Voltage:Leakage Current: Signal Contact Voltage: 1000 VDC Less
 Than 1 mA / 1Min, Between Power Contacts and Between Powerand Contacts:2500Vdc 1MIN
 Insulation Resistance: Between Signal Contacts: 2000MΩ;
                        Between Power Contacts: 2000M Ω.
Contact Resistance:Power Contact≤2mΩ   Signal Contact:20mΩ
Solder Temperature：260°C 10S
4.Mechanical Properties:
 Plugging Life:500 Times.
 Insertion Force:40N MAX  Withdrawal Force:10N MIN
5.Working Temperature: -40~+125℃
