6.35MM 5P 16P Signal Power Conenctor

Introducing the 6.35MM 5P 16P Signal Power Connector, the ultimate solution for professionals seeking seamless connectivity in their audio and video setups. This high-quality connector ensures reliable signal transmission, making it perfect for professionals in the entertainment and broadcasting industry. With its 5P and 16P configuration, it effortlessly handles power and signal transmission simultaneously, reducing clutter and improving efficiency. Crafted with precision and durability in mind, this connector guarantees long-lasting performance even in demanding environments. Compatible with a wide range of devices, the 6.35MM 5P 16P Signal Power Connector is the go-to choice for professionals who demand nothing but the best.

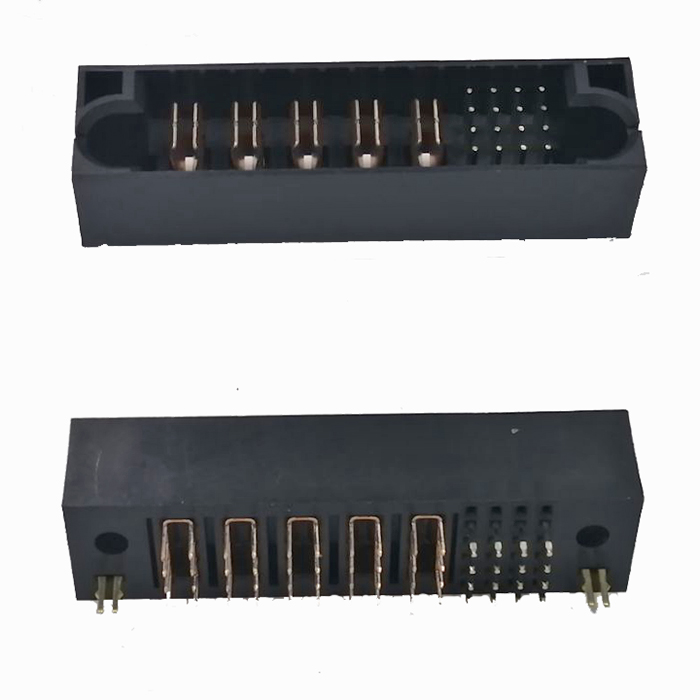

6.35MM 5P Power+16P Signal Male Straight Dip Power Connector

Specifications:
1.Material:
 A.Terminal:Phosphor Copper C5191
 B.Housing:PA9T+30% G/F UL94V-0 Color: Black
2.Plating:
 Signal Contact: 30u-50u Nickel Plated, 1U Gold Plated
 Power Contact: 30u-50u Nickel Plated, 1U Gold Plated3.
3.Electrical Performance Requirements:
 Rated Voltage: Signal Contact: 60V; Power Contact: 250V
 Rated Current: Single Power Contact Max 40A; All Power Contacts
 Max 1.5A; Single Signal Contact Max 3A; All Signal Contacts Max 1.5A
 Withstand  Voltage:Leakage Current: Contact Voltage: 1000 VDC Less
 Than 1 mA / Min, Between Power Contacts and Between Power and Signal
 Contacts:2500Vdc / Min, Leakage Current Less Than 1mA
 Insulation resistance: Between Signal Contacts: 500MΩ;
                        Between Power Contacts: 500M Ω
                        And Signal Contact: 10000M Ω

 Working Temperature: -40~+125℃(Including The Temperature Rise of 40 ℃);
