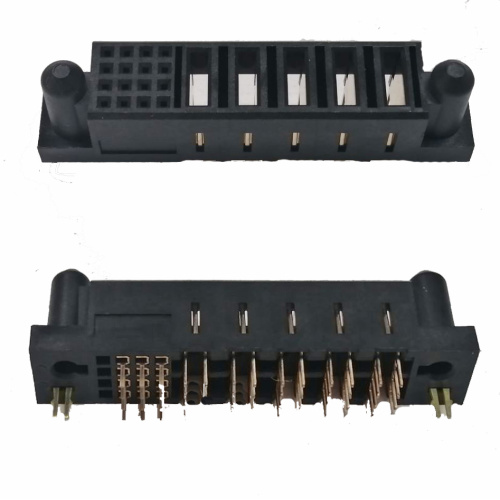

6.35MM 5P 16P Signal Power Connector

Introducing the 6.35MM 5P 16P Signal Power Connector, an innovative solution designed to revolutionize power connectivity in various industries. This high-quality connector offers exceptional durability and reliable performance, ensuring uninterrupted power transmission in critical applications. With its 5-pin and 16-pin configuration, it provides seamless signal and power integration, reducing the need for multiple connectors and simplifying installation processes. Crafted with precision and engineered to meet stringent industry standards, this connector guarantees optimal electrical conductivity and efficient power delivery. Upgrade your power connectivity infrastructure with the 6.35MM 5P 16P Signal Power Connector and experience enhanced reliability and productivity like never before.

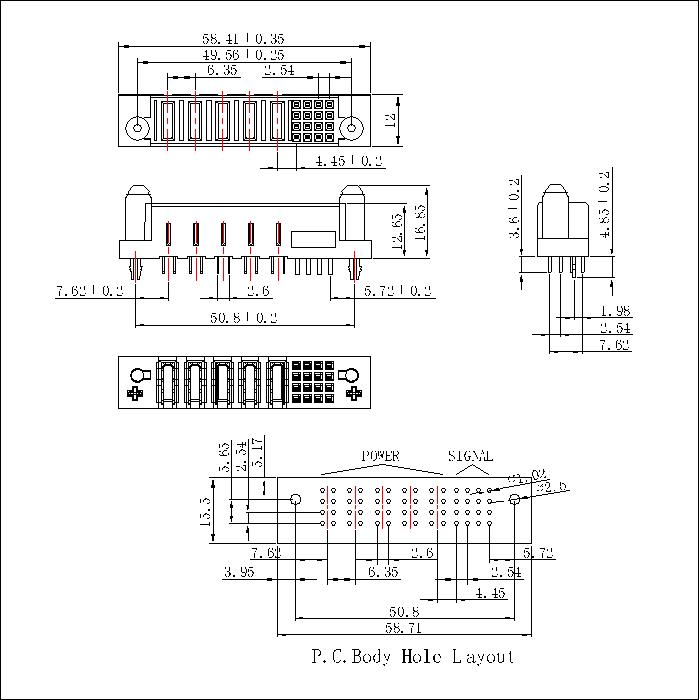

6.35MM 5P Power+16P Signal Female Straight Dip Power Connector

Specifications:
1.Material:
 A.Terminal:Phosphor Copper C5191
 B.Housing:PA9T+30% G/F UL94V-0 Color: Black
2.Plating:
 Signal Contact: 30u-50u Nickel Plated, 1U Gold Plated
 Power Contact: 30u-50u Nickel Plated, 1U Gold Plated3.
3.Electrical Performance Requirements:
 Rated Voltage: Signal Contact: 60V; Power Contact: 250V
 Rated Current: Single Power Contact Max 40A; All Power Contacts
 Max 1.5A; Single Signal Contact Max 3A; All Signal Contacts Max 1.5A
 Withstand  Voltage:Leakage Current: Contact Voltage: 1000 VDC Less
 Than 1 mA / Min, Between Power Contacts and Between Power and Signal
 Contacts:2500Vdc / Min, Leakage Current Less Than 1mA
 Insulation resistance: Between Signal Contacts: 500MΩ;
                        Between Power Contacts: 500M Ω
                        And Signal Contact: 10000M Ω
 Working Temperature: -40~+125℃(Including The Temperature Rise of 40 ℃);
