6.35MM 4P 20P Straight Signal Connector

Introducing our 6.35MM 4P 20P Straight Signal Connector, the ultimate solution for seamless and efficient signal transmission. This high-quality connector is designed to provide a secure and reliable connection for all your audio and video devices. With its 4P and 20P configuration, it ensures optimal compatibility with a wide range of equipment. The straight design allows for easy installation and a clean, streamlined look. Crafted with precision and durability in mind, this connector guarantees superior performance and long-lasting reliability. Upgrade your signal transmission experience with our 6.35MM 4P 20P Straight Signal Connector and enjoy uninterrupted connectivity like never before.

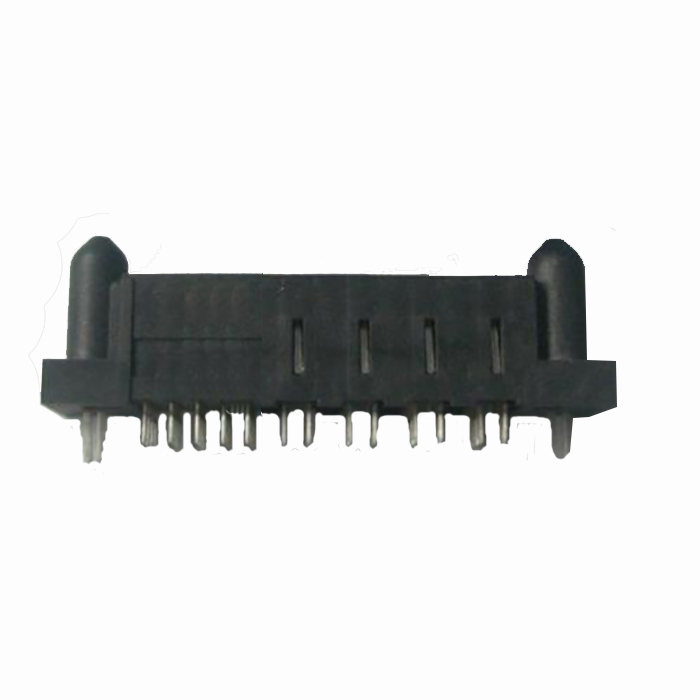

6.35MM 4P Power+20P Signal Female Straight Dip Power Connector

Specifications:

Note:
1.Material:
 A.Terminal:Phosphor Copper C5191
 B.Housing:PA9T+30% G/F UL94V-0 Color: Black
2.Plating:
 Signal Contact: 30u-50u Nickel Plated, 1U Gold Plated
 Power Contact: 30u-50u Nickel Plated, 1U Gold Plated3.
3.Electrical Performance Requirements:
 Rated Voltage: Signal Contact: 60V; Power Contact: 250V
 Rated Current: Single Power Contact Max 40A; All Power Contacts
 Max 1.5A; Single Signal Contact Max 3A; All Signal Contacts Max 1.5A
 Withstand  Voltage:Leakage Current: Contact Voltage: 1000 VDC Less
 Than 1 mA / Min, Between Power Contacts and Between Power and Signal
 Contacts:2500Vdc / Min, Leakage Current Less Than 1mA
 Insulation resistance: Between Signal Contacts: 500MΩ;
                        Between Power Contacts: 500M Ω
                        And Signal Contact: 10000M Ω

 Working Temperature: -40~+125℃(Including The Temperature Rise of 40 ℃);
