6.35MM 2Pin 36Pin Signal Power Connector

Introducing our latest innovation - the 6.35MM 2Pin 36Pin Signal Power Connector! This high-quality connector is designed to provide seamless and reliable connectivity for all your power and signal needs. With 36 pins, it offers extensive compatibility and versatility, making it ideal for a wide range of applications. Its compact and durable design ensures long-lasting performance, even in demanding environments. Whether you need to connect audio equipment, video devices, or power sources, our 6.35MM 2Pin 36Pin Signal Power Connector guarantees exceptional signal transmission and power delivery. Upgrade your connectivity experience with this must-have connector today!

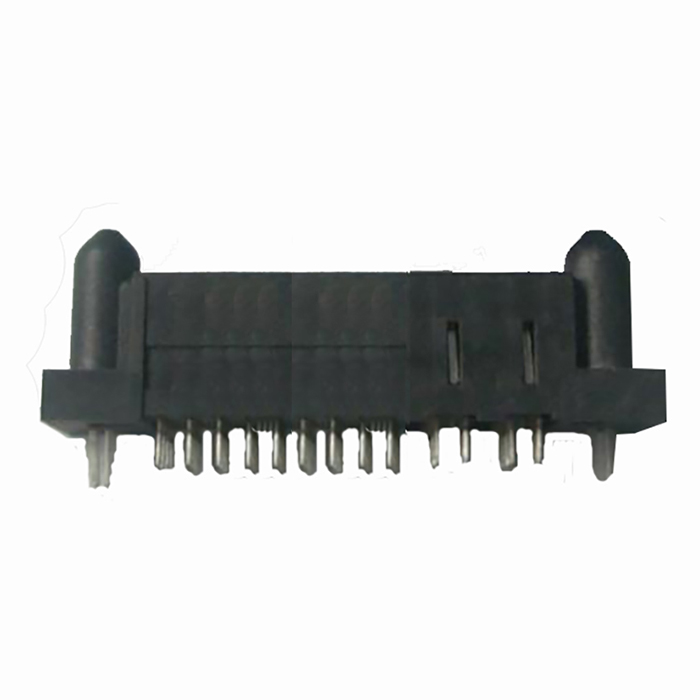

6.35MM 2P Power+36P Signal Female Straight Dip Power Connector

Specifications:
1.Material:
 A.Terminal:Phosphor Copper C5191
 B.Housing:PA9T+30% G/F UL94V-0 Color: Black
2.Plating:
 Signal Contact: 30u-50u Nickel Plated, 1U Gold Plated
 Power Contact: 30u-50u Nickel Plated, 1U Gold Plated3.
3.Electrical Performance Requirements:
 Rated Voltage: Signal Contact: 60V; Power Contact: 250V
 Rated Current: Single Power Contact Max 40A; All Power Contacts
 Max 1.5A; Single Signal Contact Max 3A; All Signal Contacts Max 1.5A
 Withstand  Voltage:Leakage Current: Contact Voltage: 1000 VDC Less
 Than 1 mA / Min, Between Power Contacts and Between Power and Signal
 Contacts:2500Vdc / Min, Leakage Current Less Than 1mA
 Insulation resistance: Between Signal Contacts: 500MΩ;
                        Between Power Contacts: 500M Ω
                        And Signal Contact: 10000M Ω
 Working Temperature: -40~+125℃(Including The Temperature Rise of 40 ℃);
