RJ45 Jack 10P10C side entry 1X1P Full Plastic

Introducing the RJ45 Jack 10P10C Side Entry 1X1P Full Plastic - the ultimate solution for all your internet connection woes! This little gem is like a superhero in disguise, ready to save you from the clutches of slow internet speeds and tangled cables. Made entirely of sturdy plastic, this jack is like the Chuck Norris of connectors - it can withstand any accidental kicks or karate chops without breaking a sweat. And speaking of sweat, say goodbye to those frustrating moments of trying to fit your chubby fingers into tight spaces. The side entry design ensures a smooth and easy connection, even for the clumsiest of hands. So, if you're tired of buffering screens and the endless spinning wheel of doom, grab the RJ45 Jack 10P10C Side Entry 1X1P Full Plastic today and experience internet bliss like never before. It's time to say goodbye to slow connections and hello to lightning-fast browsing, streaming, and gaming.

RJ45 Jack side entry,1X1P, Full Plastic

Specifications

MATERIAL:
  1.HOUSING MATERIAL:GLASS FILLED POYESTER UL94V-0.
  2.CONTACT MATERIAL:PHOSPHOR BRONZE t=0.3mm
  3.PLATING:SELECTING GOLD PLATING 1μ~50μ"OVER
            NICKEL  IN CONTACT AREA.150μ" TIN
            PLATIN.OVER NICKEL IN SOLDER AREA
  4.SHIELD:0.2mmTHICKNESS COPPER WITH NICKEL PLATEI
ELECTRICAL
  1.VOLTAGE RATING:125VAC RMS
  2.CURRENT RATING:1.5AMP
  3.CONTACT RESISTANCE:30MILLIOHMS MAX
  4.INSULATION RESISTANCE 500MEGOHMS MIN @500V DC
  5.DIELECTRIC WITHSTANDING RESISTANCE:1000V AC RMS 50Hz. 1MIN
MECHANICAL
  1.DURRABILITY:750 CYCLES MIN
  2.PCB RETENTTON PRB-SOLDER:1 LB MIN
REVIRONMENTAL
  1.STORAGE:-40°C TO 85°C
  2.OPERATION:0°C  TO 70°C

RJ45 Jack side entry,1X1P, Full Plastic ATRJ5521-10P10C-X-A-X

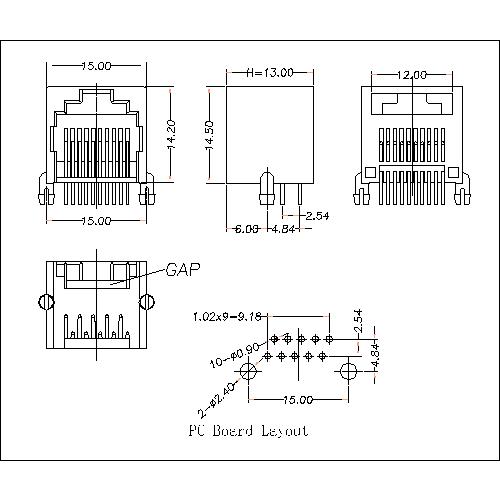

Dimensions:
