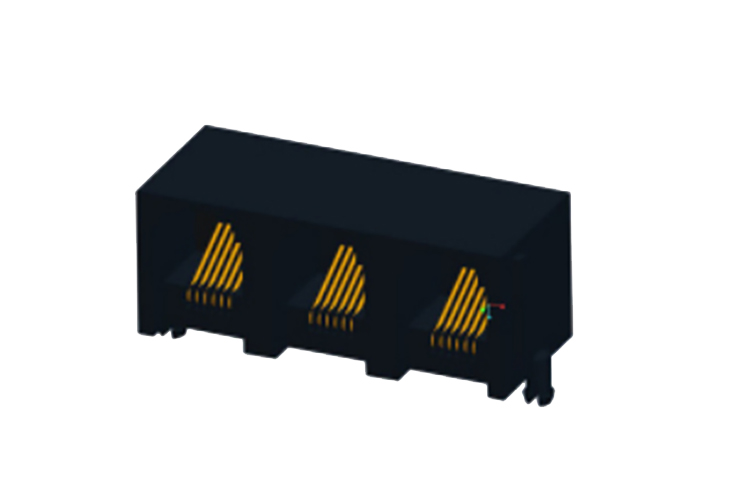

RJ11 Jack side entry Full Plastic1X3P

The RJ11 Jack side entry Full Plastic 1X3P is a high-quality product designed to provide seamless connectivity for your telecommunication needs. This product features a durable full plastic construction, ensuring long-lasting performance and reliability. With its side entry design, it allows for easy installation and hassle-free connections. The RJ11 Jack supports a 1X3P configuration, making it ideal for various applications such as telephone systems and data communication. Whether you're setting up a new office or upgrading your existing infrastructure, the RJ11 Jack side entry Full Plastic 1X3P is the perfect choice for a smooth and efficient telecommunication experience.

RJ11 Jack side entry, Full Plastic 1X3P with panel

Specifications

MATERIAL:
  1.HOUSING MATERIAL:GLASS FILLED POYESTER UL94V-0.
  2.CONTACT MATERIAL:PHOSPHOR BRONZE t=0.3mm
  3.PLATING:SELECTING GOLD PLATING 1μ~50μ"OVER
            NICKEL  IN CONTACT AREA.150μ" TIN
            PLATIN.OVER NICKEL IN SOLDER AREA
  4.SHIELD:0.2mmTHICKNESS COPPER WITH NICKEL PLATEI
ELECTRICAL
  1.VOLTAGE RATING:125VAC RMS
  2.CURRENT RATING:1.5AMP
  3.CONTACT RESISTANCE:30MILLIOHMS MAX
  4.INSULATION RESISTANCE 500MEGOHMS MIN @500V DC
  5.DIELECTRIC WITHSTANDING RESISTANCE:1000V AC RMS 50Hz. 1MIN
MECHANICAL
  1.DURRABILITY:750 CYCLES MIN
  2.PCB RETENTTON PRB-SOLDER:1 LB MIN
REVIRONMENTAL
  1.STORAGE:-40°C TO 85°C
  2.OPERATION:0°C  TO 70°C

RJ11 Jack side entry, Full Plastic 1X3P with panel

Dimensions:
