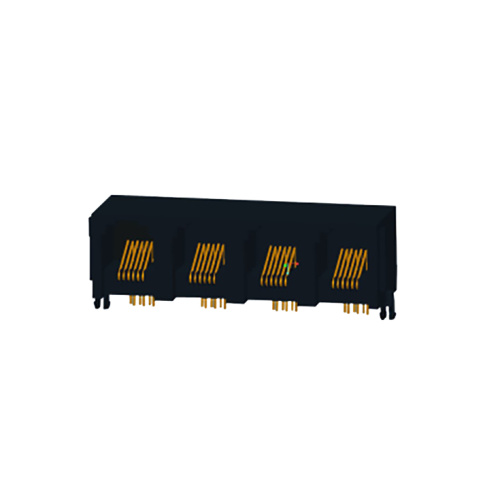

RJ11 Jack side entry Full Plastic 1X4P

Introducing the RJ11 Jack side entry Full Plastic 1X4P, the ultimate tool for professionals who love a good laugh! This quirky little gadget will have you giggling in no time. With its side entry design, it's like the jack is saying, "Hey, I'm here to party, but I'll enter from the side, just to keep things interesting!" Made from high-quality plastic, this 1X4P jack is as durable as it is hilarious. So, whether you're a serious tech guru or just enjoy a good chuckle, this RJ11 Jack is the perfect addition to your collection. Get ready to plug in, have a blast, and unleash your inner comedian!

RJ11 Jack side entry,  Full Plastic 1X4P with panel

Specifications

MATERIAL:
  1.HOUSING MATERIAL:GLASS FILLED POYESTER UL94V-0.
  2.CONTACT MATERIAL:PHOSPHOR BRONZE t=0.3mm
  3.PLATING:SELECTING GOLD PLATING 1μ~50μ"OVER
            NICKEL  IN CONTACT AREA.150μ" TIN
            PLATIN.OVER NICKEL IN SOLDER AREA
  4.SHIELD:0.2mmTHICKNESS COPPER WITH NICKEL PLATEI
ELECTRICAL
  1.VOLTAGE RATING:125VAC RMS
  2.CURRENT RATING:1.5AMP
  3.CONTACT RESISTANCE:30MILLIOHMS MAX
  4.INSULATION RESISTANCE 500MEGOHMS MIN @500V DC
  5.DIELECTRIC WITHSTANDING RESISTANCE:1000V AC RMS 50Hz. 1MIN
MECHANICAL
  1.DURRABILITY:750 CYCLES MIN
  2.PCB RETENTTON PRB-SOLDER:1 LB MIN
REVIRONMENTAL
  1.STORAGE:-40°C TO 85°C
  2.OPERATION:0°C  TO 70°C
