RJ11 Jack side entry Full Plastic with panel

Introducing the RJ11 Jack side entry Full Plastic with panel - the ultimate solution for those who have a knack for tangled wires and a love for frustration! This innovative product takes the concept of simplicity and turns it upside down, literally! With its side entry design, you'll find yourself contorting your body like a yoga master just to plug in your phone. But wait, there's more! Made entirely of plastic, this jack is guaranteed to break at the slightest touch, providing you with endless hours of entertainment as you attempt to fix it. Say goodbye to functionality and hello to a never-ending circus of confusion with the RJ11 Jack side entry Full Plastic with panel!

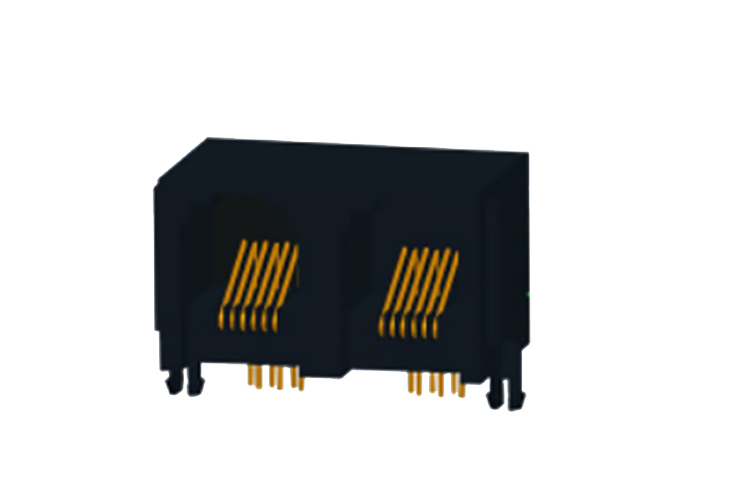

RJ11 Jack 1X2P side entry Full Plastic with panel

Specifications

MATERIAL:
  1.HOUSING MATERIAL:GLASS FILLED POYESTER UL94V-0.
  2.CONTACT MATERIAL:PHOSPHOR BRONZE t=0.3mm
  3.PLATING:SELECTING GOLD PLATING 1μ~50μ"OVER
            NICKEL  IN CONTACT AREA.150μ" TIN
            PLATIN.OVER NICKEL IN SOLDER AREA
  4.SHIELD:0.2mmTHICKNESS COPPER WITH NICKEL PLATEI
ELECTRICAL
  1.VOLTAGE RATING:125VAC RMS
  2.CURRENT RATING:1.5AMP
  3.CONTACT RESISTANCE:30MILLIOHMS MAX
  4.INSULATION RESISTANCE 500MEGOHMS MIN @500V DC
  5.DIELECTRIC WITHSTANDING RESISTANCE:1000V AC RMS 50Hz. 1MIN
MECHANICAL
  1.DURRABILITY:750 CYCLES MIN
  2.PCB RETENTTON PRB-SOLDER:1 LB MIN
REVIRONMENTAL
  1.STORAGE:-40°C TO 85°C
  2.OPERATION:0°C  TO 70°C
