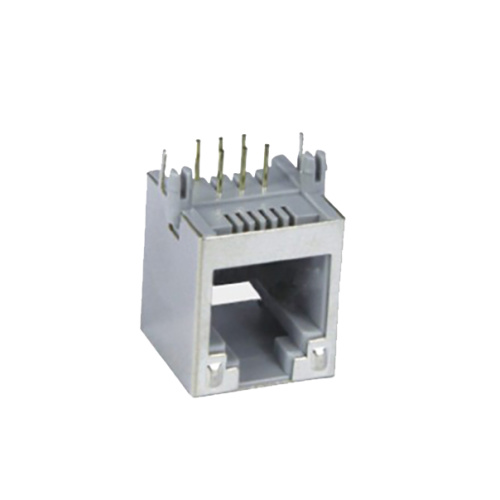

RJ45 Jack Side entry 1X1P Full Plastic

Introducing our latest innovation, the RJ45 Jack Side Entry 1X1P Full Plastic connector! Designed to revolutionize your networking experience, this cutting-edge product offers seamless connectivity and exceptional performance. With its compact size and durable full plastic construction, this connector ensures a secure and reliable connection for all your Ethernet needs. Say goodbye to messy cables and hello to effortless installation, thanks to the convenient side entry design. Whether you're setting up a home network or managing a large-scale enterprise, our RJ45 Jack Side Entry 1X1P Full Plastic connector is the ultimate solution for efficient and hassle-free networking. Upgrade your connectivity game today!

ATRJ5521-6P6C-X-D-A RJ45 6P6C Jack Side entry, 1X1P,Full Plastic

Specifications

MATERIAL:
  1.HOUSING MATERIAL:GLASS FILLED POYESTER UL94V-0.
  2.CONTACT MATERIAL:PHOSPHOR BRONZE t=0.3mm
  3.PLATING:SELECTING GOLD PLATING 1μ~50μ"OVER
            NICKEL  IN CONTACT AREA.150μ" TIN
            PLATIN.OVER NICKEL IN SOLDER AREA
  4.SHIELD:0.2mmTHICKNESS COPPER WITH NICKEL PLATEI
ELECTRICAL
  1.VOLTAGE RATING:125VAC RMS
  2.CURRENT RATING:1.5AMP
  3.CONTACT RESISTANCE:30MILLIOHMS MAX
  4.INSULATION RESISTANCE 500MEGOHMS MIN @500V DC
  5.DIELECTRIC WITHSTANDING RESISTANCE:1000V AC RMS 50Hz. 1MIN
MECHANICAL
  1.DURRABILITY:750 CYCLES MIN
  2.PCB RETENTTON PRB-SOLDER  :1 LB MIN
REVIRONMENTAL
  1.STORAGE:-40°C TO 85°C
  2.OPERATION:0°C  TO 70°C

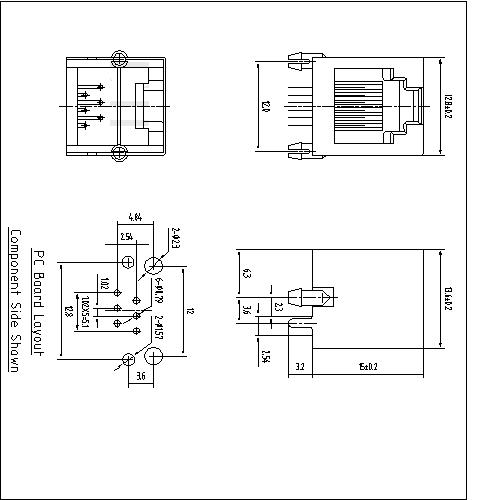

ATRJ5521-6P6C-X-D-A RJ45 Jack Side entry, 1X1P,Full Plastic

Dimensions:
