6P4C RJ11 Telephone Modular Jack PCB Contectors

Introducing the 6P4C RJ11 Telephone Modular Jack PCB Connectors, the ultimate solution for professionals seeking seamless telecommunication connectivity. Designed with precision and reliability in mind, these connectors offer exceptional performance for a wide range of applications. With a compact and durable PCB design, they ensure secure connections and minimize signal loss. The 6P4C configuration allows for easy installation and compatibility with various telephone systems. Whether you're a telecommunications engineer or a tech-savvy professional, these connectors guarantee efficient and uninterrupted voice communication. Upgrade your telephony setup with the 6P4C RJ11 Telephone Modular Jack PCB Connectors and experience unparalleled connectivity like never before.

6P4C RJ11 Telephone Modular Jack PCB Contectors

Specifications

MATERIAL:
  1.HOUSING MATERIAL:GLASS FILLED POYESTER UL94V-0.
  2.CONTACT MATERIAL:PHOSPHOR BRONZE t=0.3mm
  3.PLATING:SELECTING GOLD PLATING 1μ~50μ"OVER
            NICKEL  IN CONTACT AREA.150μ" TIN
            PLATIN.OVER NICKEL IN SOLDER AREA
  4.SHIELD:0.2mmTHICKNESS COPPER WITH NICKEL PLATEI
ELECTRICAL
  1.VOLTAGE RATING:125VAC RMS
  2.CURRENT RATING:1.5AMP
  3.CONTACT RESISTANCE:30MILLIOHMS MAX
  4.INSULATION RESISTANCE 500MEGOHMS MIN @500V DC
  5.DIELECTRIC WITHSTANDING RESISTANCE:1000V AC RMS 50Hz. 1MIN
MECHANICAL
  1.DURRABILITY:750 CYCLES MIN
  2.PCB RETENTTON PRB-SOLDER:1 LB MIN
REVIRONMENTAL
  1.STORAGE:-40°C TO 85°C
  2.OPERATION:0°C  TO 70°C

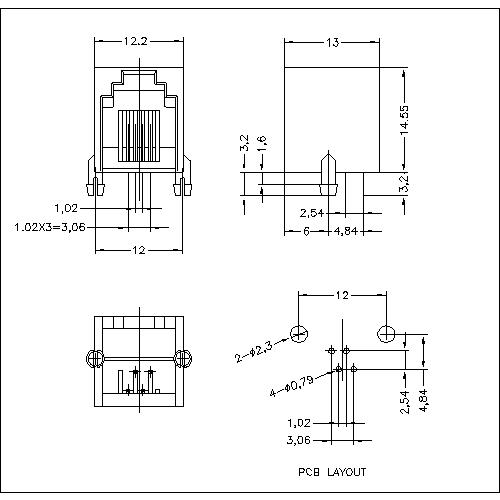

RJ11 Jack side entry, Full plastic, without panel  ATRJ5521-6P4C-X-A

Dimensions:
