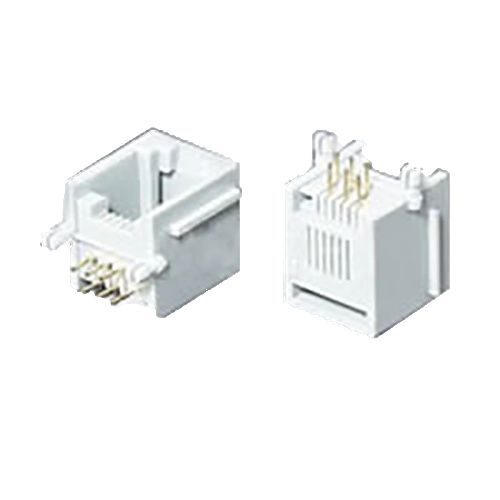

6P6C RJ11 Jack Side entry Full Plastic

Introducing the "SneakyTalker 3000" - the ultimate solution for all your sneaky office communication needs! Our 6P6C RJ11 Jack Side entry Full Plastic is like a secret agent disguised as a phone jack. With its full plastic construction, it's so lightweight and nimble that it can slip past even the most vigilant boss without raising any suspicion. Need to make a personal call during work hours? No problem! The SneakyTalker 3000 has got you covered. Just plug in your phone, lean back, and enjoy covert conversations while your boss remains clueless. It's time to outsmart the boss and have a laugh while doing it!

RJ11 Jack Side entry, Full Plastic, with panel

Specifications

MATERIAL:
1.HOUSING MATERIAL:GLASS FILLED POLYESTER UL94V-0.
2.CONTACT MATERIAL:PHOSPHOR BRONZE t=0.30mm.
3.PLATING:SELECTING GOLD PLATING 3u"~50u"OVER
    NICKEL IN CONTACT AREA.150u" TIN
    PLATING OVER NICKEL IN SOLDER AREA
4.SHIELD: 0.20mmTHICKNESS COPPER ALLY WITH NICKEL PLATE

ELECTRICAL:
1.VOLTAGE RATING :125 VAC RMS.
2.CURRENT RATING :1.5AMP.
3.CONTACT RESISTANCE:30 MILLIOHMS MAX.
4.INSULATION RESISTANCE:500 MEGOHMS MIN @500V DC.
5.DIELECTRIC WITHSTANDING RESISTANCE
   MECHANICAL:1000V AC RMS 50Hz. 1MIN.
1.DURRABILITY:750 CYCLES MIN.
2.PCB RETENTION PRE-SOLDER :1 LB MIN.
   ENVIRONMENTAL:
1.STORAGE:-40°C TO 85°C.
2.OPERATION :0°C TO 70°C.

RJ11 Jack Side entry, Full Plastic, with panel ATRJ5521-6P6C-X-A-A

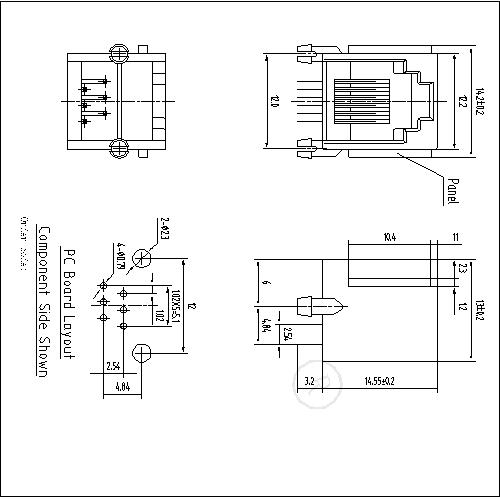

Dimensions:
