Type-C 2P Female Waterproof With Wire 24AWG
  • Type-C 2P Female Waterproof With Wire 24AWG

Type-C 2P Female Waterproof With Wire 24AWG

Payment Type:
L/C,T/T,Paypal
Incoterm:
CFR,EXW
1000
Min. Order:
1000 Piece/Pieces
Transportation:
Ocean,Air,Express
Port:
shenzhen,huizhou
Share:
Chat Now
  • Product Description
< >
Overview
Product Attributes

Model No.: WU3.1FW04-S-L-X-X-X-X

Brand: Antenk

Supply Ability & Additional Information

Packaging: bag/tray packing

Transportation: Ocean,Air,Express

Place of Origin: China

Supply Ability: 100000/month

Certificate: ISO14001/ISO9001

Port: shenzhen,huizhou

Payment Type: L/C,T/T,Paypal

Incoterm: CFR,EXW

Packaging & Delivery
Selling Units:
Piece/Pieces
Package Type:
bag/tray packing
1.product introduction
Vertical USB Connector is an interface standard used to connect computers to external devices.It allows the connection of external devices such as mice, keyboards, storage devices, printers, etc., through a single port.With convenience and reliability, USB connectors are widely used in personal computers and mobile devices.
Today, various device types use Universal Serial Bus (USB) as the standard connection type.They have created a compact, low-cost interface that facilitates computer communication and plays a pivotal role in the electrical appliance industry.
At present, there are different types of USB connectors available, and have different functional characteristics, mainly divided into the following:
USB Type-A: Universal, common USB interface, often used to connect computers or chargers.
USB Type-B: Mainly used to connect external devices, such as printers or scanners.
USB Type-C(Waterproof USB): The latest USB interface standard, with higher data transfer speed and more features, such as two-way data transfer and charging.
Micro-USB: Commonly used in mobile devices such as smartphones and tablets.
Mini-USB: A smaller USB port, commonly used in digital cameras and MP3 players.
Lightning cable: It is a relatively durable data cable. The exterior of the data cable is made of high-strength steel material, and the durability reaches industrial level.

2.product parameter
Electrical:
  1.Current Rating:1.0A/contact terminal
  2.Contact Resistance:30mΩ MAX
  3.Dielectric Withstanding Voltage:100V AC AT Sea Level
  4.Insulation Resistance:100MΩ MIN 250V DC
Mechanical:
  1.Mate force:0.51Kg-2.04Kg
    Unmate force:0.82Kg-2.04Kg
Material:
  1.Contact:Copper alloy
  2.Shell: SUS
Plating:
  1.Contact: Plated Gold in Mating Area;
    Tin On Solder Tails
  2.Shell:Nickel Plated


3.product picture

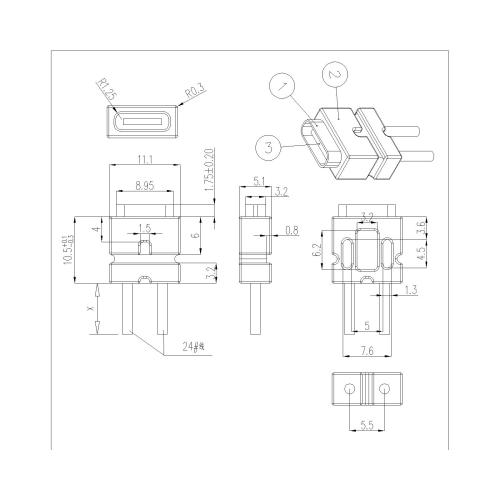

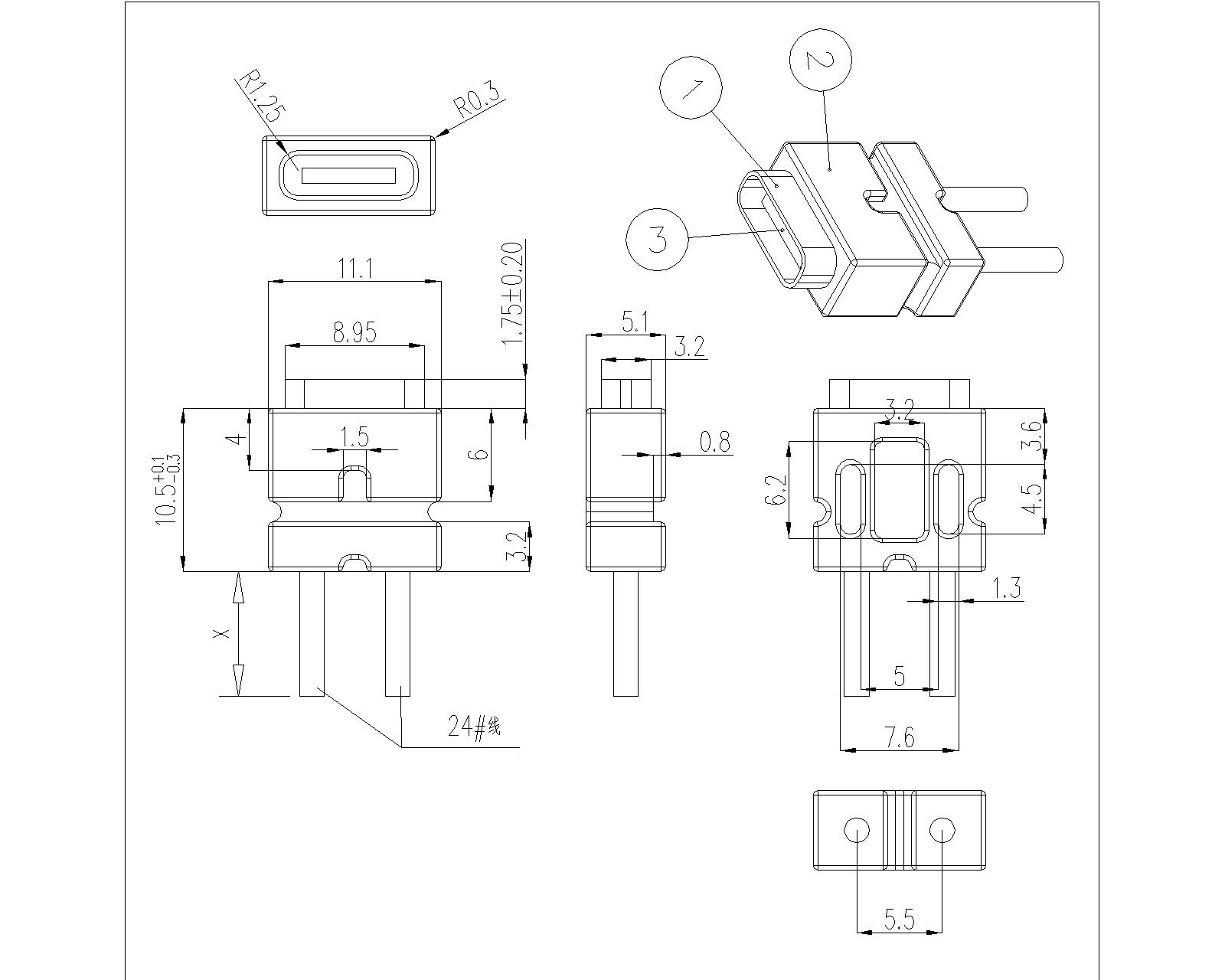

WU3.1FW04-S-L-X-X-X-X Type-C 2P Female Waterproof L=10.5,With Wire #24


4.FAQ

Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.

Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request.

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
