2P Female Waterproof Molding With Screw With Wire

Get Latest Price

Payment Type:

L/C,T/T,Paypal

Incoterm:

CFR,EXW

1000

Min. Order:

1000 Piece/Pieces

Transportation:

Ocean,Air,Express

Port:

shenzhen,huizhou

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: WU3.1FW03-S-L-X-X-X-X

Brand: Antenk

Supply Ability & Additional Information

Packaging: bag/tray packing

Transportation: Ocean,Air,Express

Place of Origin: China

Supply Ability: 100000/month

Certificate: ISO14001/ISO9001

Port: shenzhen,huizhou

Payment Type: L/C,T/T,Paypal

Incoterm: CFR,EXW

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: bag/tray packing

1.product introduction

Vertical USB Connector is an interface standard used to connect computers to external devices.It allows the connection of external devices such as mice, keyboards, storage devices, printers, etc., through a single port.With convenience and reliability, USB connectors are widely used in personal computers and mobile devices.

Today, various device types use Universal Serial Bus (USB) as the standard connection type.They have created a compact, low-cost interface that facilitates computer communication and plays a pivotal role in the electrical appliance industry.

At present, there are different types of USB connectors available, and have different functional characteristics, mainly divided into the following:

USB Type-A: Universal, common USB interface, often used to connect computers or chargers.

USB Type-B: Mainly used to connect external devices, such as printers or scanners.

USB Type-C(Waterproof USB): The latest USB interface standard, with higher data transfer speed and more features, such as two-way data transfer and charging.

Micro-USB: Commonly used in mobile devices such as smartphones and tablets.

Mini-USB: A smaller USB port, commonly used in digital cameras and MP3 players.

Lightning cable: It is a relatively durable data cable. The exterior of the data cable is made of high-strength steel material, and the durability reaches industrial level.

2.product parameter

1.MATERIAL:

MOLDING: LCP UL94 V-0

CONTACT: COPPER ALLOY

GOLD PLATED Min ON CONTACT AREA.100u’

Min TIN (LEAD FREE) ON SOLDER AREA,

SHELL:SUS304-H.T=0.30+0.03mm

50u” NICKEL PLATING OVER ALL

2.MECHANICAL:

INSERTION:5~20N.

EXTRACTION:8~20N AFTER TEST

DURABILITY: 10000 CYCLES

3.ELECTRICAL:

CURRENT: 3A FOR VBUS:

1.25A FOR GND PIN.

0.25A FOR OTHER

VOLTAGE: 20V MAX

WITHSTANDING VOLTAGE: 100V AC R.M.S.

CONTACT RESISTANCE:40mΩ MAX.

INSULATION RESISTANCE: 100MΩ MIN

4.ENVIRONMENTAL

TEMPERATURE RANGE -25℃ ~ +85℃

3.product picture

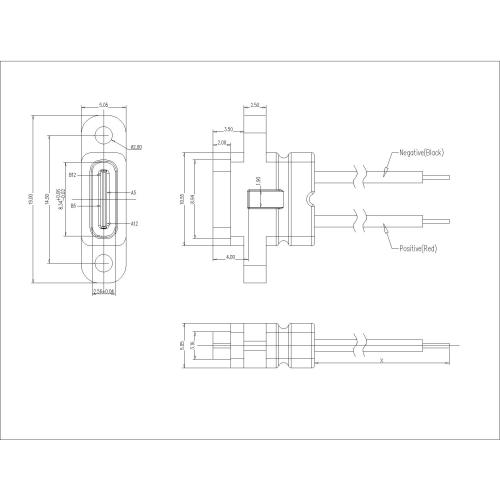

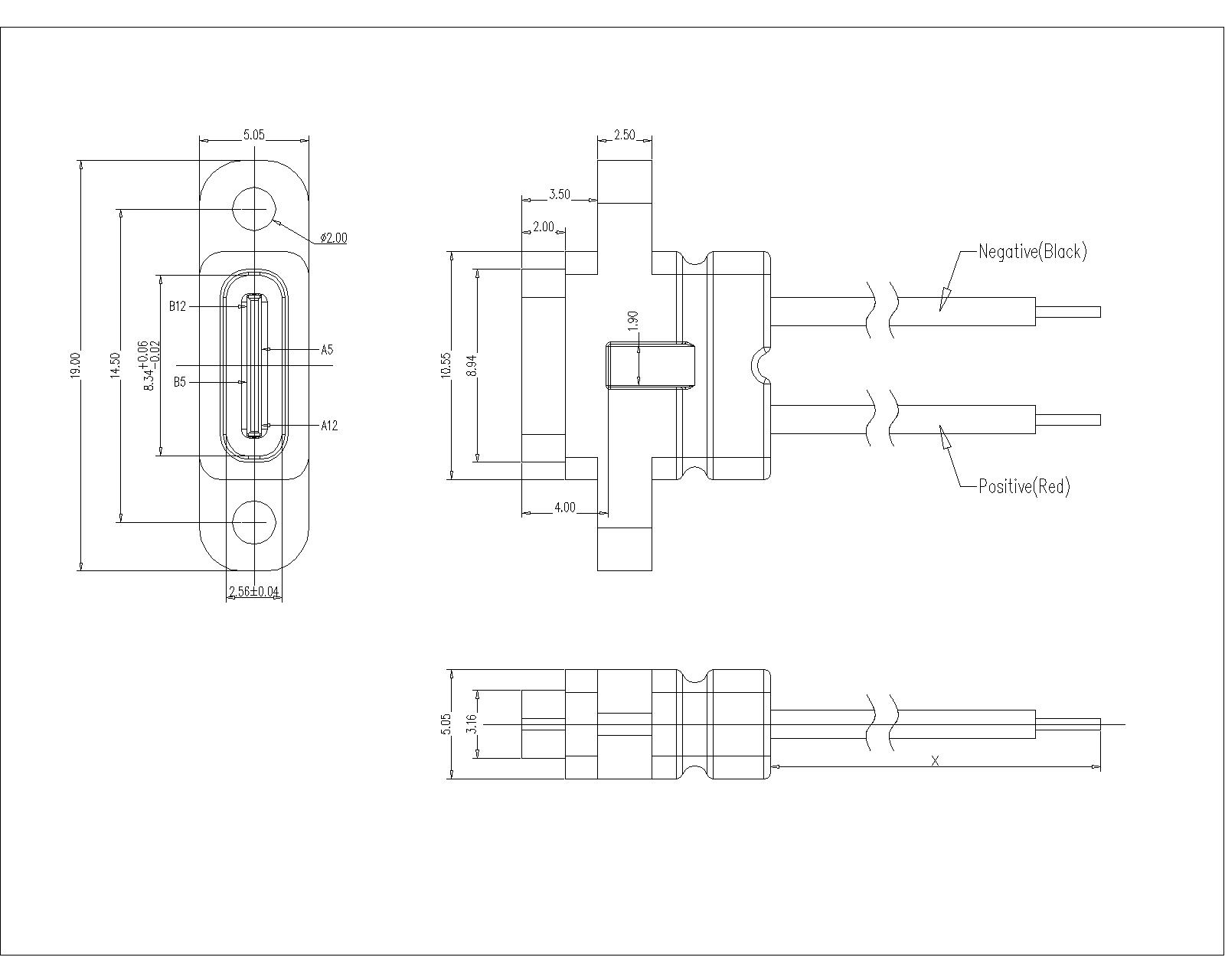

WU3.1FW03-S-L-X-X-X-X Type-C 2P Female Waterproof Molding With Screw Hole Solder Type With Wire

4.FAQ

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.
