2P Female Waterproof Molding Solder Type With Wire
  • 2P Female Waterproof Molding Solder Type With Wire

2P Female Waterproof Molding Solder Type With Wire

Payment Type:
L/C,T/T,Paypal
Incoterm:
CFR,EXW
1000
Min. Order:
1000 Piece/Pieces
Transportation:
Ocean,Air,Express
Port:
shenzhen,huizhou
Share:
Chat Now
  • Product Description
< >
Overview
Product Attributes

Model No.: WU3.1FW01-S-L-X-X-X-X

Brand: Antenk

Supply Ability & Additional Information

Packaging: bag/tray packing

Transportation: Ocean,Air,Express

Place of Origin: China

Supply Ability: 100000/month

Certificate: ISO14001/ISO9001

Port: shenzhen,huizhou

Payment Type: L/C,T/T,Paypal

Incoterm: CFR,EXW

Packaging & Delivery
Selling Units:
Piece/Pieces
Package Type:
bag/tray packing
1.product introduction
Vertical USB Connector is an interface standard used to connect computers to external devices.It allows the connection of external devices such as mice, keyboards, storage devices, printers, etc., through a single port.With convenience and reliability, USB connectors are widely used in personal computers and mobile devices.
Today, various device types use Universal Serial Bus (USB) as the standard connection type.They have created a compact, low-cost interface that facilitates computer communication and plays a pivotal role in the electrical appliance industry.
At present, there are different types of USB connectors available, and have different functional characteristics, mainly divided into the following:
USB Type-A: Universal, common USB interface, often used to connect computers or chargers.
USB Type-B: Mainly used to connect external devices, such as printers or scanners.
USB Type-C(Waterproof USB): The latest USB interface standard, with higher data transfer speed and more features, such as two-way data transfer and charging.
Micro-USB: Commonly used in mobile devices such as smartphones and tablets.
Mini-USB: A smaller USB port, commonly used in digital cameras and MP3 players.
Lightning cable: It is a relatively durable data cable. The exterior of the data cable is made of high-strength steel material, and the durability reaches industrial level.

2.product parameter
1.MATERIAL:
MOLDING:LCP UL94 V-0
CONTACT: COPPER ALLOY.
GOLD PLATED Min ON CONTACT AREA.100u
Min TIN (LEAD FREE) ON SOLDER AREA:
SHELL:SUS304-H,T=0.30±0.03mm
5Ou’ NICKEL PLATING OVER ALL
2.MECHANICAL:
INSERTION: 5~20N
EXTRACTION: 8~20N AFTER TEST
DURABILITY: 10000 CYCLES
3.ELECTRICAL
CURRENT: 3A FOR VBUS:
1.25A FOR GND PIN
0.25A FOR 0THER
VOLTAGE: 20 V MAX
WITHSTANDING VOLTAGE: 100V AC R.M.S.
CONTACT RESISTANCE: 40mΩ MAX.
INSULATION RESISTANCE: 100MΩ MIN
4.ENVIRONMENTAL
TEMPERATURE RANGE -25℃ ~ +85℃


3.product picture

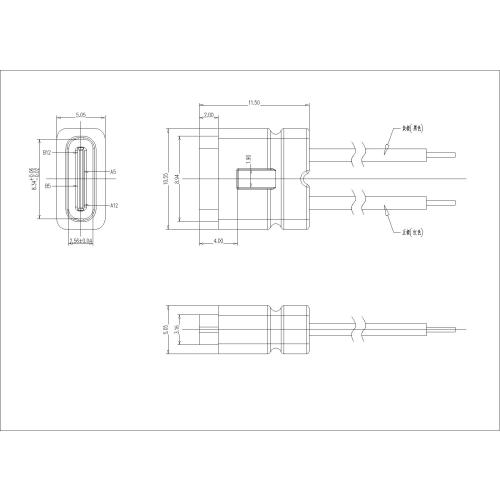

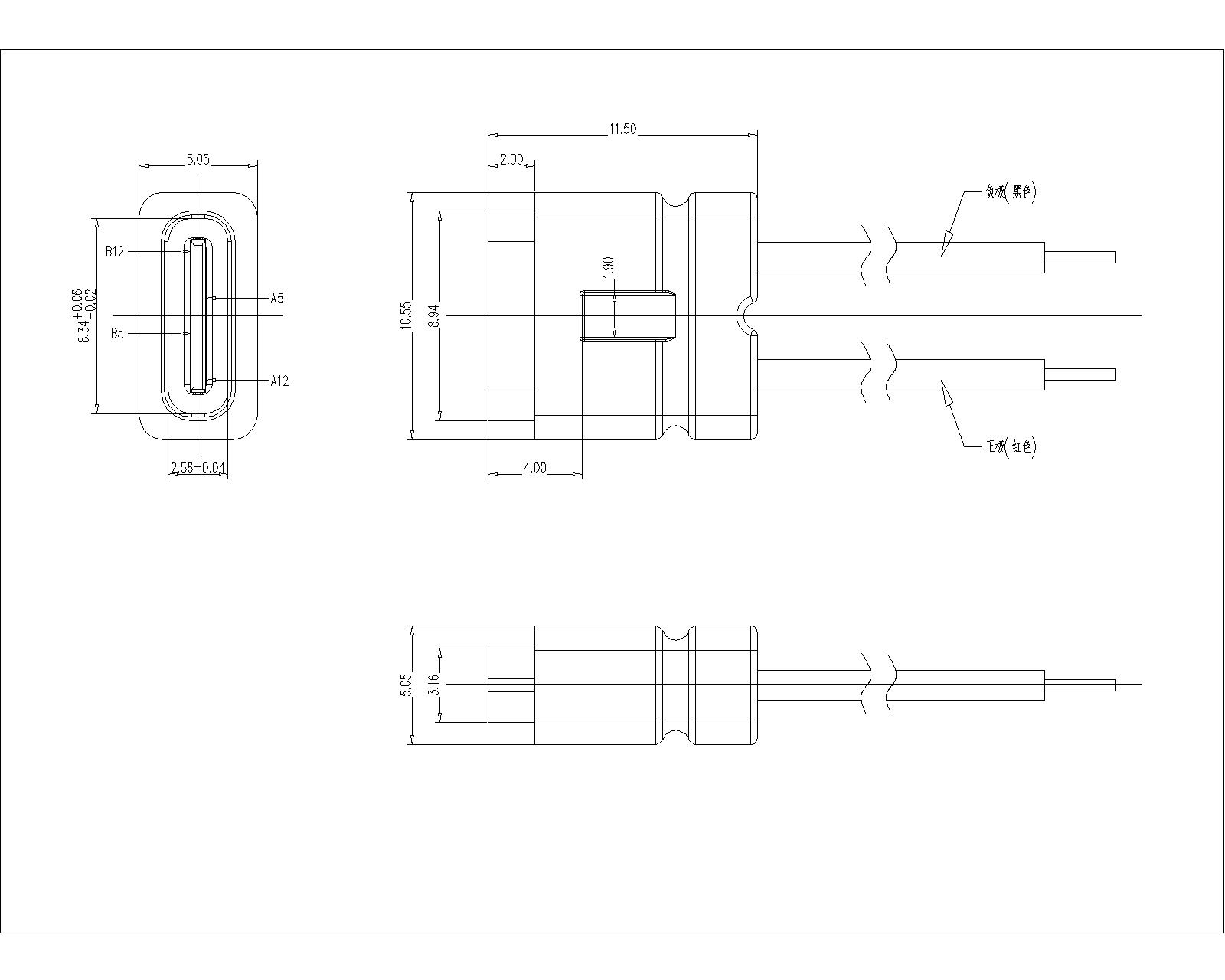

WU3.1FW01-S-L-X-X-X-X Type-C 2P Female Waterproof Molding Solder Type With Wire


4.FAQ

Q: What is your term of payment?

A: 30% down payment before producing and 70% balance payment before shipping.

Q: Which payment form you can accept?

A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.

Q: Which certificate do you have?

A: CE, FDA and ISO13485.
