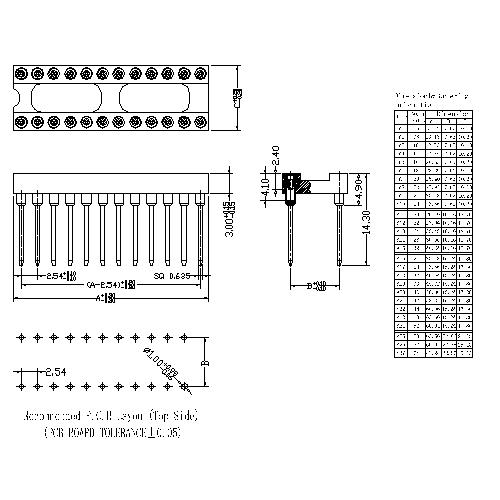

2.54mm Dual-in-line Socket Straight DIP (H=3 L=14.3)

The 2.54mm Dual-in-line Socket Straight DIP (H=3 L=14.3) is a versatile electronic component designed for easy integration in various circuit boards. With a pitch of 2.54mm, this socket provides a reliable connection for dual-in-line packages. The straight design ensures a secure fit and facilitates effortless installation. With a height of 3mm and a length of 14.3mm, this socket is compact and space-efficient. It is manufactured using high-quality materials to ensure durability and long-lasting performance. Whether you are working on a DIY project or a professional electronic application, the 2.54mm Dual-in-line Socket Straight DIP (H=3 L=14.3) is an essential component that guarantees seamless connectivity.

2.54mm Dual-in-line Socket Straight DIP (H=3 L=14.3) Square Pin connector

Specifications:

Current Rating: 1.0Amp

Contact Resistance: 10MΩ  max

Dielectric Strength: Min 1000 V RMS

Mechanical Life: Min 100 cycles

Operating Temperature:  -40°C  to  +105°C

Sleeve: Brass  CuZn36Pb3(C36000)

Contact Clip(4 finger): BeCu(C17200)

Contact Plating: Au or Sn Over Ni

Insulator Material: PPS+30%GF UL 94V-0

06p~16P Insulators without center bar

36p~52P Insulators with center two bar

64P  Insulators with center three  bar
