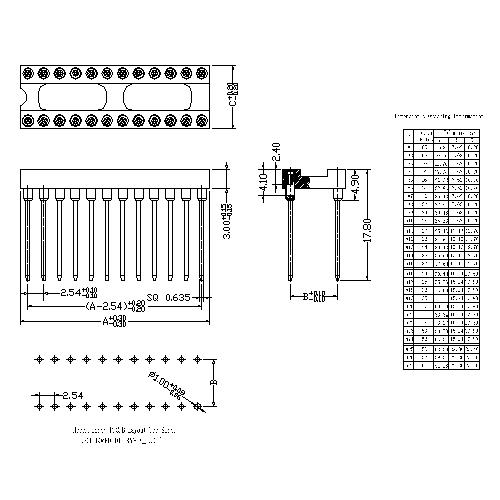

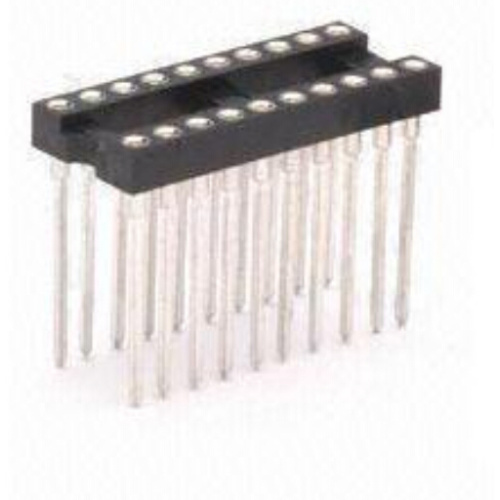

2.54mm Dual-in-line Socket Straight DIP(H=3 L=17.8)

Introducing the 2.54mm Dual-in-line Socket Straight DIP(H=3 L=17.8), the ultimate solution for seamless and secure connections in your electronic projects. This high-quality socket offers a compact design with a pitch of 2.54mm, making it compatible with a wide range of DIP components. With its straight form factor, it effortlessly fits into your circuit boards while ensuring a reliable and stable connection. The socket's durable construction and precision engineering guarantee long-lasting performance and hassle-free assembly. Whether you're a DIY enthusiast or a professional, this 2.54mm Dual-in-line Socket is a must-have for your electronic projects. Upgrade your connections today and experience unmatched reliability!

2.54mm Dual-in-line Socket Straight DIP (H=3 L=17.8) Square Pin connector

Specifications:
Current Rating: 1.0Amp
Contact Resistance: 10MΩ  max
Dielectric Strength: Min 1000 V RMS
Mechanical Life: Min 100 cycles
Operating Temperature: -40°C  to  +105°C
Sleeve: Brass  CuZn36Pb3(C36000)
Contact Clip(4 finger): BeCu(C17200)
Contact Plating: Au or Sn Over Ni
Insulator Material: PPS+30%GF UL 94V-0
06p~16P Insulators without center bar
36p~52P Insulators with center two bar
64P  Insulators with center three  bar
