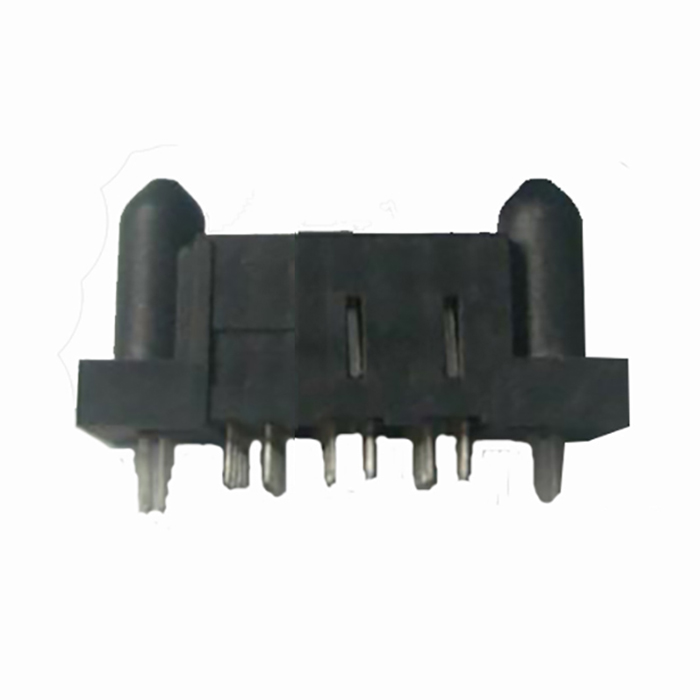

6.35MM 2P Power+8P Signal Female Power Connector

The 6.35MM 2P Power+8P Signal Female Power Connector is a high-quality and reliable connector designed for professionals in various industries. This connector features a 6.35mm power connector with 2 pins for power transmission and an additional 8 pins for signal transmission. It is built to withstand heavy-duty usage and provides a secure and stable connection. The connector is easy to install and ensures efficient power and signal transmission. It is perfect for professionals working with power and signal transmission systems, such as engineers, technicians, and electricians. Upgrade your connectivity with the 6.35MM 2P Power+8P Signal Female Power Connector.

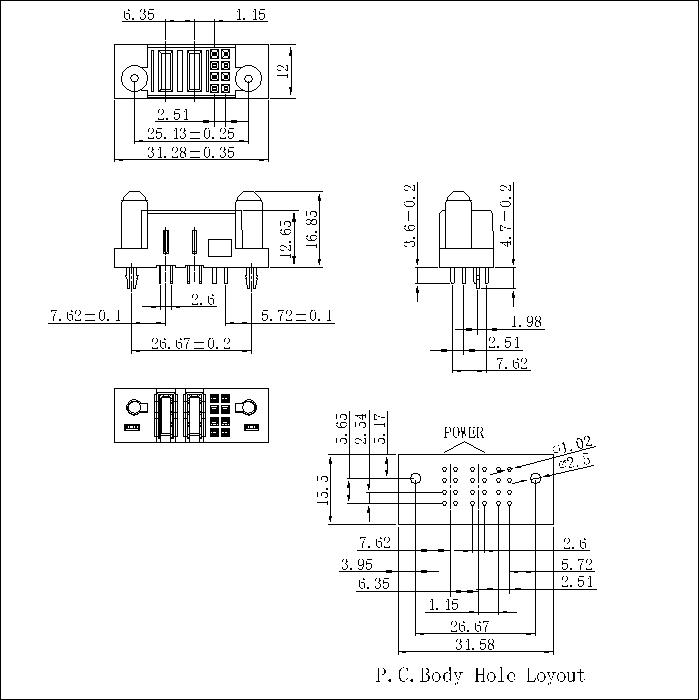

Shenzhen Antenk Electronics Co., Ltd. introduced a 6.35MM 2P Power+8P Signal Female
Straight Dip Power Connector  PSPF6.35S-0208G0G0AEX

Note:
1.Material:
 A.Terminal:Phosphor Copper C5191
 B.Housing:PA9T+30% G/F UL94V-0 Color: Black
2.Plating:
 Signal Contact: 30u-50u Nickel Plated, 1U Gold Plated
 Power Contact: 30u-50u Nickel Plated, 1U Gold Plated3.
3.Electrical Performance Requirements:
 Rated Voltage: Signal Contact: 60V; Power Contact: 250V
 Rated Current: Single Power Contact Max 40A; All Power Contacts
 Max 1.5A; Single Signal Contact Max 3A; All Signal Contacts Max 1.5A
 Withstand  Voltage:Leakage Current: Contact Voltage: 1000 VDC Less
 Than 1 mA / Min, Between Power Contacts and Between Power and Signal
 Contacts:2500Vdc / Min, Leakage Current Less Than 1mA
 Insulation resistance: Between Signal Contacts: 500MΩ;
                        Between Power Contacts: 500M Ω
                        And Signal Contact: 10000M Ω
 Working Temperature: -40~+125℃(Including The Temperature Rise of 40 ℃);
