6.35mm 2P 4P Signal Power Connector

Introducing the 6.35mm 2P 4P Signal Power Connector, the ultimate solution for seamless connectivity and power transmission! This popular product is designed to provide a reliable and efficient connection between devices, ensuring uninterrupted signal transmission and power supply. With its durable construction and precise engineering, this connector guarantees long-lasting performance even in demanding environments. The 6.35mm 2P 4P Signal Power Connector is versatile and compatible with various devices, making it the go-to choice for professionals and enthusiasts alike. Say goodbye to connectivity issues and experience superior performance with this must-have connector. Upgrade your setup now and enjoy a seamless and hassle-free connection!

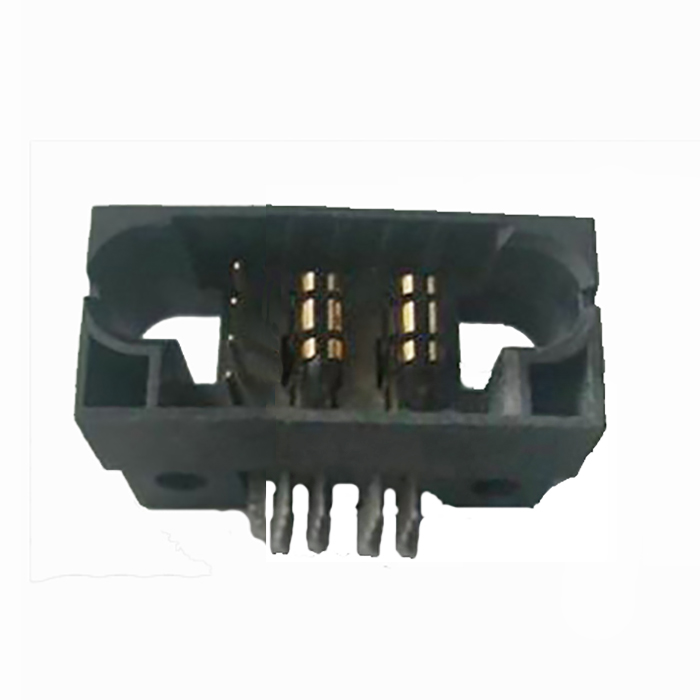

6.35mm 2P 4P Signal Male Straight Dip Power Connector

Specifications:

Note:
1.Material:
 A.Terminal:Phosphor Copper C5191
 B.Housing:PA9T+30% G/F UL94V-0 Color: Black
2.Plating:
 Signal Contact: 30u-50u Nickel Plated, 1U Gold Plated
 Power Contact: 30u-50u Nickel Plated, 1U Gold Plated3.
3.Electrical Performance Requirements:
 Rated Voltage: Signal Contact: 60V; Power Contact: 250V
 Rated Current: Single Power Contact Max 40A; All Power Contacts
 Max 1.5A; Single Signal Contact Max 3A; All Signal Contacts Max 1.5A
 Withstand  Voltage:Leakage Current: Contact Voltage: 1000 VDC Less
 Than 1 mA / Min, Between Power Contacts and Between Power and Signal
 Contacts:2500Vdc / Min, Leakage Current Less Than 1mA
 Insulation resistance: Between Signal Contacts: 500MΩ;
  Between Power Contacts: 500M Ω
  And Signal Contact: 10000M Ω

 Working Temperature: -40~+125℃(Including The Temperature Rise of 40 ℃);
