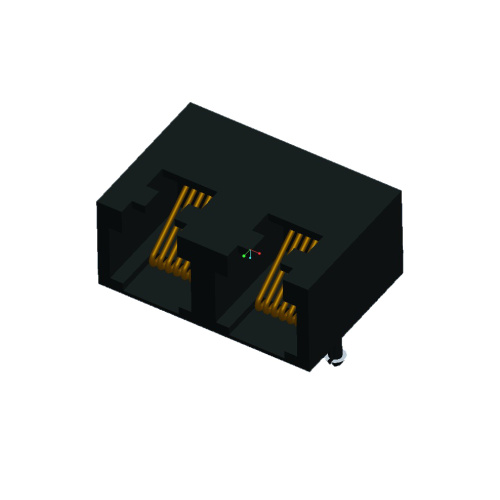

RJ11 Jack 6P6C Side entry 1X2Port Full plastic

Introducing the RJ11 Jack 6P6C Side entry 1X2Port Full plastic - the ultimate solution for all your telecommunication needs! This high-quality jack is designed to provide seamless connectivity and exceptional performance. With its 6P6C configuration, it ensures crystal-clear voice transmission and data transfer. The side entry design allows for convenient installation in tight spaces, making it ideal for residential and commercial settings. Crafted from durable full plastic material, this jack guarantees long-lasting durability and resistance to wear and tear. Upgrade your communication network today with the RJ11 Jack 6P6C Side entry 1X2Port Full plastic and experience unparalleled reliability and efficiency.

RJ11 Jack 6P6C Side entry 1X2Port, Full plastic

Specifications

MATERIAL:
  1.HOUSING MATERIAL:GLASS FILLED POYESTER UL94V-0.
  2.CONTACT MATERIAL:PHOSPHOR BRONZE t=0.3mm
  3.PLATING:SELECTING GOLD PLATING 1μ~50μ"OVER
            NICKEL  IN CONTACT AREA.150μ" TIN
            PLATIN.OVER NICKEL IN SOLDER AREA
  4.SHIELD:0.2mmTHICKNESS COPPER WITH NICKEL PLATEI
ELECTRICAL
  1.VOLTAGE RATING:125VAC RMS
  2.CURRENT RATING:1.5AMP
  3.CONTACT RESISTANCE:30MILLIOHMS MAX
  4.INSULATION RESISTANCE 500MEGOHMS MIN @500V DC
  5.DIELECTRIC WITHSTANDING RESISTANCE
                      :1000V AC RMS 50Hz. 1MIN
MECHANICAL
  1.DURRABILITY:750 CYCLES MIN
  2.PCB RETENTTON PRB-SOLDER:1 LB MIN
REVIRONMENTAL
  1.STORAGE:-40°C TO 85°C
  2.OPERATION:0°C  TO 70°C

RJ11 Jack 6P6C, Side entry, 1X2Port, Full plastic Dimensions:
