RJ11 Jack 6P6C Side entry Full plastic MINI

Introducing our RJ11 Jack 6P6C Side entry Full plastic MINI, the ultimate solution for seamless and reliable connectivity in your workplace. Designed with utmost precision, this compact yet powerful jack ensures optimal performance for all your communication needs. Crafted with high-quality materials, our RJ11 Jack guarantees exceptional durability and longevity. Its side entry design allows for easy installation and hassle-free maintenance. The full plastic construction ensures maximum insulation, preventing any interference or signal loss. Compatible with a wide range of devices, this jack is perfect for office telephones, fax machines, and other communication equipment. Trust in our RJ11 Jack 6P6C Side entry Full plastic MINI to deliver uninterrupted and crystal-clear voice and data transmission, enabling efficient and effective communication in your business environment.

RJ11 Jack 6P6C, Side entry,  1X1Port, Full plastic MINI TYPE

Specifications

MATERIAL:
  1.HOUSING MATERIAL:GLASS FILLED POYESTER UL94V-0.
  2.CONTACT MATERIAL:PHOSPHOR BRONZE t=0.3mm
  3.PLATING:SELECTING GOLD PLATING 1μ~50μ"OVER
      NICKEL  IN CONTACT AREA.150μ" TIN
      PLATIN.OVER NICKEL IN SOLDER AREA
  4.SHIELD:0.2mmTHICKNESS COPPER WITH NICKEL PLATEI
ELECTRICAL
  1.VOLTAGE RATING:125VAC RMS
  2.CURRENT RATING:1.5AMP
  3.CONTACT RESISTANCE:30MILLIOHMS MAX
  4.INSULATION RESISTANCE 500MEGOHMS MIN @500V DC
  5.DIELECTRIC WITHSTANDING RESISTANCE
                      :1000V AC RMS 50Hz. 1MIN
MECHANICAL
  1.DURRABILITY:750 CYCLES MIN
  2.PCB RETENTTON PRB-SOLDER:1 LB MIN
REVIRONMENTAL
  1.STORAGE:-40°C TO 85°C
  2.OPERATION:0°C  TO 70°C

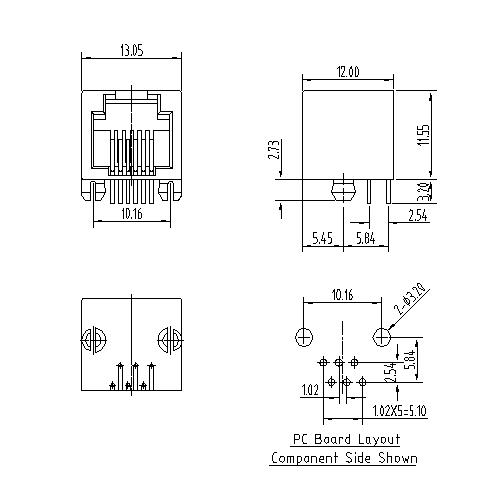

RJ11 Jack 6P6C, Side entry,  1X1Port, Full plastic MINI TYPE Dimensions:
