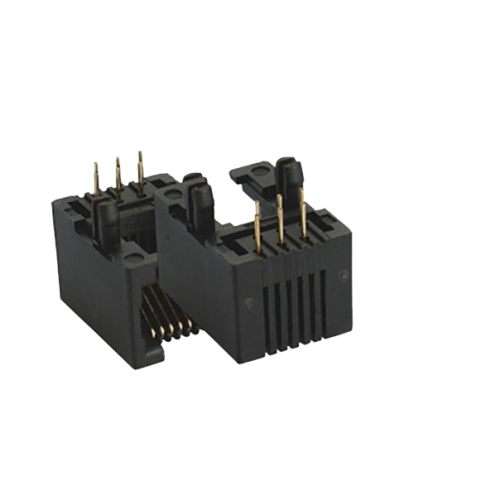

RJ11 Jack 6P6C side entry 1X1port

Introducing our top-of-the-line RJ11 Jack 6P6C side entry 1X1 port, designed to revolutionize your connectivity experience. This innovative product offers seamless and reliable connection for your telecommunication needs. With its compact and durable design, it fits perfectly in any space and guarantees long-lasting performance. The side entry feature allows for easy and convenient installation, saving you time and effort. Whether you're setting up a home office or upgrading your business infrastructure, our RJ11 Jack 6P6C side entry 1X1 port is the perfect choice for exceptional connectivity. Don't compromise on quality - choose our product for unparalleled reliability and efficiency.

RJ11 Jack 6P6C side entry 1X1port,Full plastic

Specifications:

MATERIAL:
  1.HOUSING MATERIAL :GLASS FILLED POYESTER UL94V-0.
  2.CONTACT MATERIAL :PHOSPHOR BRONZE t=0.3mm
  3.PLATING :SELECTING GOLD PLATING 1μ~50μ"OVER
       NICKEL  IN CONTACT AREA.150μ" TIN
        PLATIN.OVER NICKEL IN SOLDER AREA
  4.SHIELD:0.2mmTHICKNESS COPPER WITH NICKEL PLATEI
ELECTRICAL
  1.VOLTAGE RATING :125VAC RMS
  2.CURRENT RATING :1.5AMP
  3.CONTACT RESISTANCE:30MILLIOHMS MAX
  4.INSULATION RESISTANCE 500MEGOHMS MIN @500V DC
  5.DIELECTRIC WITHSTANDING RESISTANCE:1000V AC RMS 50Hz. 1MIN
MECHANICAL
  1.DURRABILITY :750 CYCLES MIN
  2.PCB RETENTTON PRB-SOLDER :1 LB MIN
REVIRONMENTAL
  1.STORAGE :-40°C TO 85°C
  2.OPERATION :0°C  TO 70°C

RJ11 Jack 6P6C side entry 1X1port,Full plastic Dimensions:
