2.54MM 36P Signal Power Connector

Important Information about the 2.54MM 36P Signal Power Connector

$500

≥1000
Piece/Pieces

Payment Type:

T/T,Paypal

Incoterm:

FOB,CIF,EXW,FCA

1000

Min. Order:

1000 Piece/Pieces

Transportation:

Ocean,Air,Express

Port:

Shenzhen

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: SPF2.54S-0036G0G0AEX

Brand: ANTENK

Place Of Origin: China

Supply Ability & Additional Information

Packaging: bag packing,Tube packing, reel packing

Productivity: 2000K/month

Transportation: Ocean,Air,Express

Place of Origin: China

Supply Ability: 2000K/month

Certificate: ISO9001

HS Code: 8536909000

Port: Shenzhen

Payment Type: T/T,Paypal

Incoterm: FOB,CIF,EXW,FCA

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: bag packing,Tube packing, reel packing

Introducing the 2.54MM 36P Signal Power Connector, a robust and high-performance solution for seamless electrical connections. Designed with precision engineering, this connector ensures reliable transmission of signals and power in various industrial applications. Its compact size and 36-pin configuration allow for efficient space utilization while maintaining optimal functionality. With exceptional durability and superior conductivity, this connector guarantees long-lasting performance even in demanding environments. The 2.54MM 36P Signal Power Connector is the perfect choice for professionals seeking a dependable and efficient solution for their electrical connectivity needs.

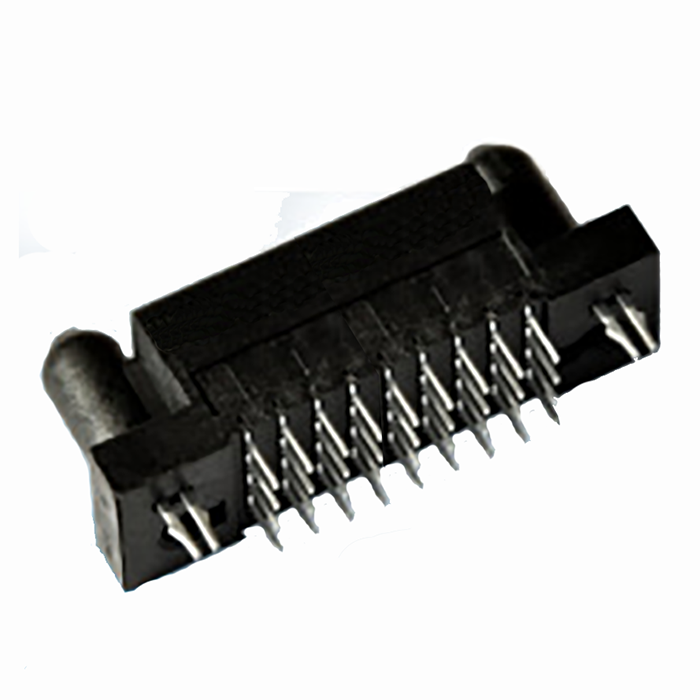

2.54MM 36P Signal Female Straight Dip Power Connector

Specifications:
1.Material:
A.Terminal:Phosphor Copper C5191
B.Housing:PA9T+30% G/F UL94V-0 Color: Black
2.Plating:
Signal Contact: 30u-50u Nickel Plated, 1U Gold Plated
Power Contact: 30u-50u Nickel Plated, 1U Gold Plated3.
3.Electrical Performance Requirements:
Rated Voltage: Signal Contact: 60V; Power Contact: 250V
Rated Current: Single Power Contact Max 40A; All Power Contacts
Max 1.5A; Single Signal Contact Max 3A; All Signal Contacts Max 1.5A
Withstand Voltage:Leakage Current: Contact Voltage: 1000 VDC Less
Than 1 mA / Min, Between Power Contacts and Between Power and Signal
Contacts:2500Vdc / Min, Leakage Current Less Than 1mA
Insulation resistance: Between Signal Contacts: 500MΩ;
Between Power Contacts: 500M Ω And Signal Contact: 10000M Ω
Working Temperature: -40~+125℃(Including The Temperature Rise of 40 ℃);
