2.54MM 20P Signal Female Power Connector

"Highly Reliable 2.54MM 20P Signal Female Power Connector - Perfect for All Your Power Connectivity Needs!"

Get Latest Price

Payment Type:

T/T,Paypal,Western Union

Incoterm:

FOB,CIF,EXW,FCA

1000

Min. Order:

1000 Bag/Bags

Transportation:

Ocean,Air

Port:

SHENZHEN,SHENZHEN

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: SPF2.54S-0020XG0AEX

Brand: ANTENK

Supply Ability & Additional Information

Packaging: bag packing,Tube packing, reel packing

Productivity: 100000K/month

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 100000K/month

Certificate: ISO9001

HS Code: 8536909000

Port: SHENZHEN,SHENZHEN

Payment Type: T/T,Paypal,Western Union

Incoterm: FOB,CIF,EXW,FCA

Packaging & Delivery

Selling Units:: Bag/Bags

Package Type:: bag packing,Tube packing, reel packing

Introducing the "Mighty Mini Connector" - the superhero of all connectors! This 2.54MM 20P Signal Female Power Connector may be small in size, but it packs a punch when it comes to connecting power signals. It's like having a mini Wonder Woman at your fingertips, ready to save the day with its super-strong connection capabilities. With this connector, you'll never have to worry about power outages or weak signals again. It's so tiny, you might mistake it for a speck of dust, but trust us, it's a powerful force to be reckoned with. Get your hands on the "Mighty Mini Connector" today and join the league of extraordinary connectors!

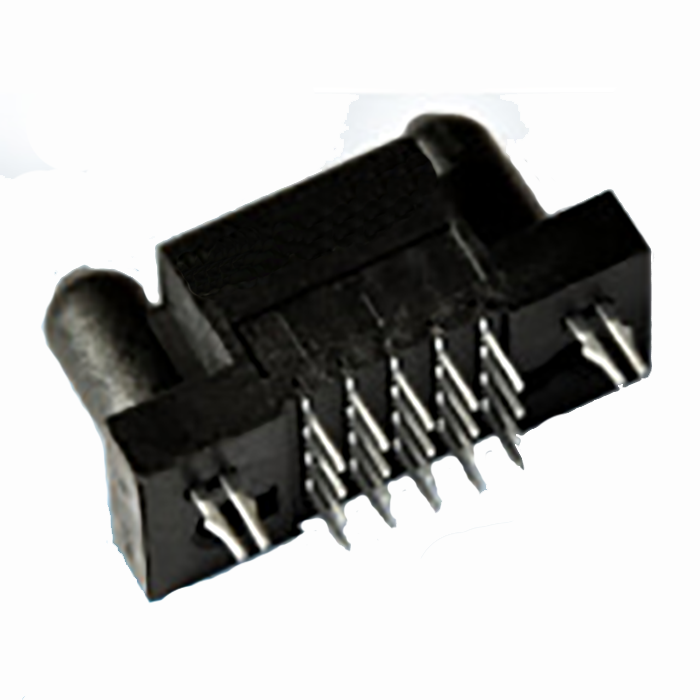

Shenzhen Antenk Electronics Co., Ltd. introduced a 2.54MM 20P Signal Female
Straight Dip Power Connector SPF2.54S-0020XG0AEX

Note:
1.Material:
A.Terminal:Phosphor Copper C5191
B.Housing:PA9T+30% G/F UL94V-0 Color: Black
2.Plating:
Signal Contact: 30u-50u Nickel Plated, 1U Gold Plated
Power Contact: 30u-50u Nickel Plated, 1U Gold Plated3.
3.Electrical Performance Requirements:
Rated Voltage: Signal Contact: 60V; Power Contact: 250V
Rated Current: Single Power Contact Max 40A; All Power Contacts
Max 1.5A; Single Signal Contact Max 3A; All Signal Contacts Max 1.5A
Withstand Voltage:Leakage Current: Contact Voltage: 1000 VDC Less
Than 1 mA / Min, Between Power Contacts and Between Power and Signal
Contacts:2500Vdc / Min, Leakage Current Less Than 1mA
Insulation resistance: Between Signal Contacts: 500MΩ;
Between Power Contacts: 500M Ω
And Signal Contact: 10000M Ω
Working Temperature: -40~+125℃(Including The Temperature Rise of 40 ℃);
