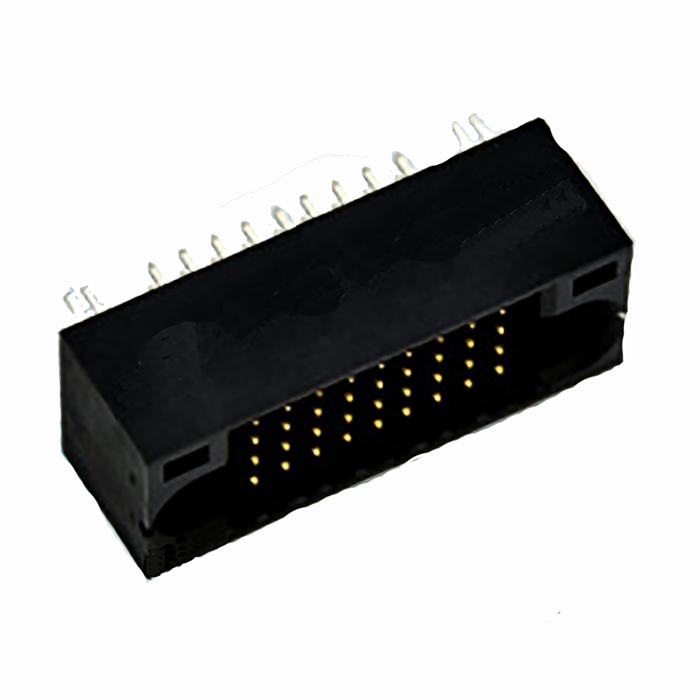

2.54mm 36Pin Signal Male Power Connector

Introducing the "Mighty Mini-Macho Connector" - the superhero of all connectors! This 2.54mm 36Pin Signal Male Power Connector is here to save the day, connecting your devices with unmatched precision and power. With its miniature size, it's like having a connector on steroids! It can handle any power surge, signal transmission, or even a coffee spill (well, almost). Whether you're a professional tech wizard or just a regular Joe trying to connect your gadgets, this connector will make you feel like a true superhero. So, say goodbye to tangled wires and hello to the Mighty Mini-Macho Connector – the only sidekick you'll ever need!

2.54MM 36P Signal Male Straight Dip Power Connector

1.Material:
 A.Terminal:Phosphor Copper C5191
 B.Housing:PA9T+30% G/F UL94V-0 Color: Black
2.Plating:
 Signal Contact: 30u-50u Nickel Plated, 1U Gold Plated
 Power Contact: 30u-50u Nickel Plated, 1U Gold Plated3.
3.Electrical Performance Requirements:
 Rated Voltage: Signal Contact: 60V; Power Contact: 250V
 Rated Current: Single Power Contact Max 40A; All Power Contacts
 Max 1.5A; Single Signal Contact Max 3A; All Signal Contacts Max 1.5A
 Withstand  Voltage:Leakage Current: Contact Voltage: 1000 VDC Less
 Than 1 mA / Min, Between Power Contacts and Between Power and Signal
 Contacts:2500Vdc / Min, Leakage Current Less Than 1mA
 Insulation resistance: Between Signal Contacts: 500MΩ;
Between Power Contacts: 500M Ω And Signal Contact: 10000M Ω

 Working Temperature: -40~+125℃(Including The Temperature Rise of 40 ℃);
