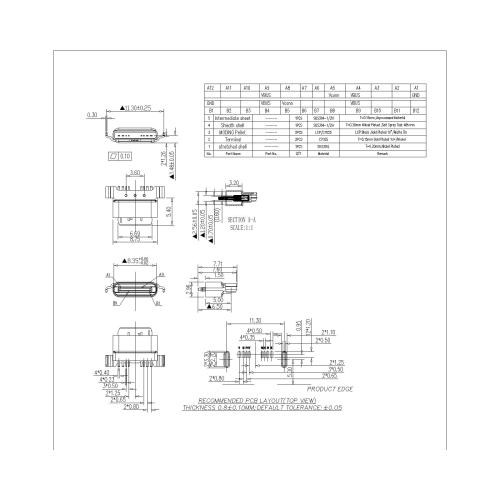

Type-C 8P Female 90° SMT H7.6

Get Latest Price

Payment Type:

L/C,T/T,Paypal

Incoterm:

CFR,EXW

Min. Order:

1 Piece/Pieces

Transportation:

Ocean,Air,Express

Port:

shenzhen,huizhou

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: WU3.1FM37-S-L-A-X-X

Supply Ability & Additional Information

Packaging: reel packing

Transportation: Ocean,Air,Express

Supply Ability: 100000/month

Port: shenzhen,huizhou

Payment Type: L/C,T/T,Paypal

Incoterm: CFR,EXW

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: reel packing

1.product introduction

The Universal Serial Bus (USB) connector is an interface standard used to connect computers to external devices.It allows the connection of external devices such as mice, keyboards, storage devices, printers, etc., through a single port.With convenience and reliability, USB connectors are widely used in personal computers and mobile devices.

Today, various device types use Universal Serial Bus (USB) as the standard connection type.They have created a compact, low-cost interface that facilitates computer communication and plays a pivotal role in the electrical appliance industry.

At present, there are different types of USB connectors available, and have different functional characteristics, mainly divided into the following:

USB Type-A: Universal, common USB interface, often used to connect computers or chargers.

USB Type-B: Mainly used to connect external devices, such as printers or scanners.

USB Type-C: The latest USB interface standard, with higher data transfer speed and more features, such as two-way data transfer and charging.

Micro-USB: Commonly used in mobile devices such as smartphones and tablets.

Mini-USB: A smaller USB port, commonly used in digital cameras and MP3 players.

Lightning cable: It is a relatively durable data cable. The exterior of the data cable is made of high-strength steel material, and the durability reaches industrial level.

2.product parameter

1.MATERIAL:

1.1 HOUSING:SEE TABLE ORDERING INFORMATION

1.2 CONTACTS:Copper Alloy(C7025)

1.3 SHELL:Stainless steel

2.ELECTRICAL CHARACTERISTICS:

2.1 CONTACT RESISTANCE:40mΩ Max FOR INTIAL.10mΩ CHANGE

AFTER TEST. MEASURE at 20mv, 100mA.

2.2 CONTACT CURRENT RATING:3A FOR VBUS PIN;1.25A FOR

VCONN and GND PIN;0.25A FOR all THE OTHER PIN.

2.3 VOLTAGE RATING:30V

2.4 DIELECTRIC WITHSTANDING VOLTAGE:100 V R.M.S.

2.5 INSULATION RESISTANCE 100 MEGOHMS MIN

3.MECHANICAL PERFORMANCE:

3.1 INSERT FORCE:0.51-2.04Kg

3.2 EXTRACT FORCE:0.82-2.04Kg

3.3 AFTER DURABILITY:0.61-2.04Kg

3.4 DURABILITY:10000 CYCLES

4.EVIRONMENTAL:

4.1 OPERATION TEMPERATURE : -20°C to +85°C

3.product picture

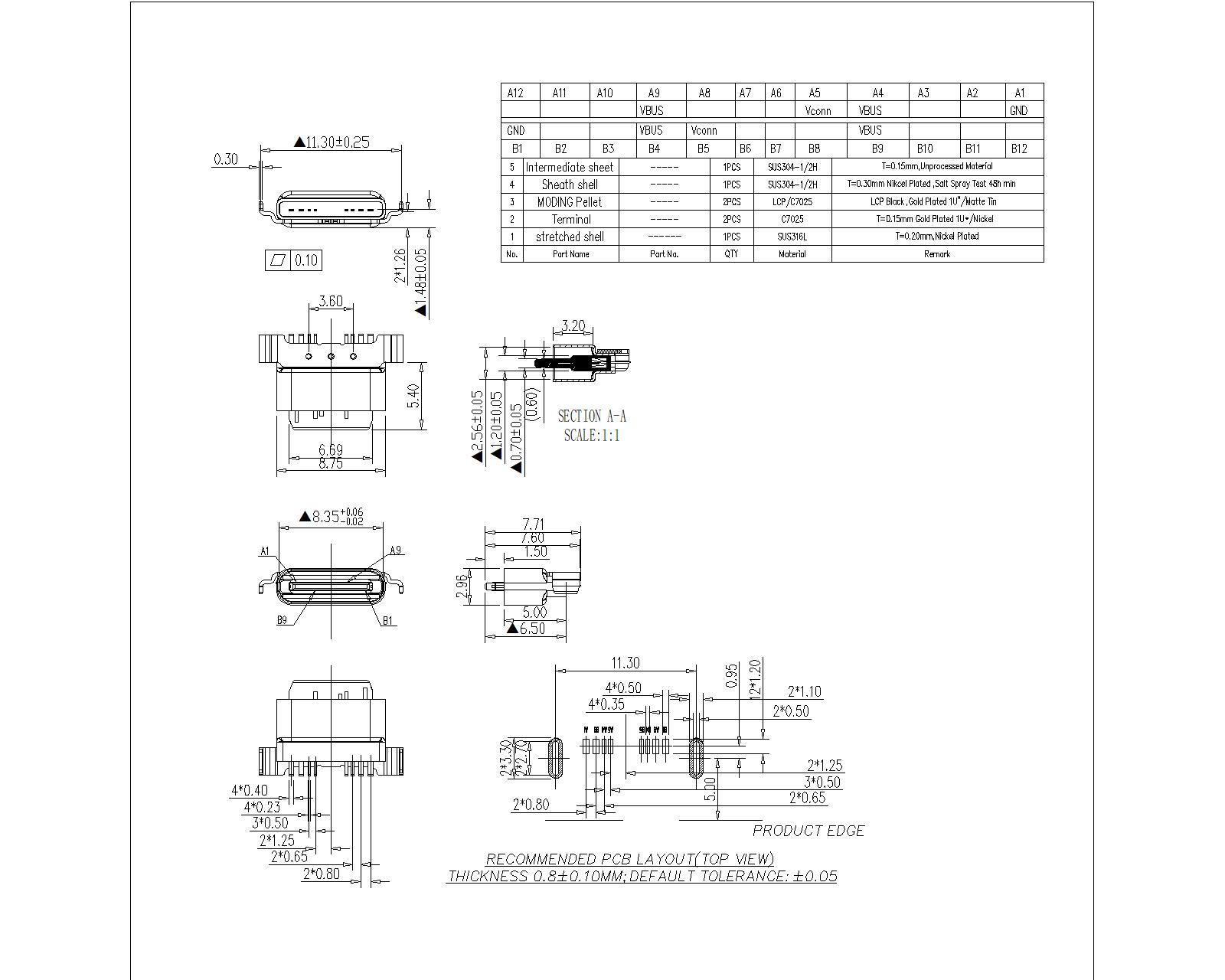

WU3.1FM37-S-L-A-X-X Type-C 8P Female 90° SMT H=7.6,With Two Legs DIP Type

4.FAQ

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.

Q: What’s your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
