12P Female Waterproof SMT Offset Stretch
  • 12P Female Waterproof SMT Offset Stretch

12P Female Waterproof SMT Offset Stretch

Payment Type:
L/C,T/T,Paypal
Incoterm:
CFR,EXW
1
Min. Order:
1 Piece/Pieces
Transportation:
Ocean,Air,Express
Port:
shenzhen,huizhou
Share:
Chat Now
  • Product Description
< >
Overview
Product Attributes

Model No.: WU3.1FM45-S-X-C-X-X

Brand: Antenk

Supply Ability & Additional Information

Packaging: tray packing

Transportation: Ocean,Air,Express

Place of Origin: China

Supply Ability: 100000/month

Certificate: ISO9001/ISO14001

Port: shenzhen,huizhou

Payment Type: L/C,T/T,Paypal

Incoterm: CFR,EXW

Packaging & Delivery
Selling Units:
Piece/Pieces
Package Type:
tray packing
1.product introduction
The Universal Serial Bus (USB) connector is an interface standard used to connect computers to external devices.It allows the connection of external devices such as mice, keyboards, storage devices, printers, etc., through a single port.With convenience and reliability, USB connectors are widely used in personal computers and mobile devices.
Today, various device types use Universal Serial Bus (USB) as the standard connection type.They have created a compact, low-cost interface that facilitates computer communication and plays a pivotal role in the electrical appliance industry.
At present, there are different types of USB connectors available, and have different functional characteristics, mainly divided into the following:
USB Type-A: Universal, common USB interface, often used to connect computers or chargers.
USB Type-B: Mainly used to connect external devices, such as printers or scanners.
USB Type-C: The latest USB interface standard, with higher data transfer speed and more features, such as two-way data transfer and charging.
Micro-USB: Commonly used in mobile devices such as smartphones and tablets.
Mini-USB: A smaller USB port, commonly used in digital cameras and MP3 players.
Lightning cable: It is a relatively durable data cable. The exterior of the data cable is made of high-strength steel material, and the durability reaches industrial level.

2.product parameter
1.MATERIAL:
    1.1 HOUSING:SEE TABLE ORDERING INFORMATION
    1.2 CONTACTS:Copper Alloy(C7025)
    1.3 SHELL:Stainless steel
2.ELECTRICAL CHARACTERISTICS:
    2.1 CONTACT RESISTANCE:40mΩ Max FOR INTIAL.10mΩ CHANGE
           AFTER TEST. MEASURE at 20mv, 100mA.
    2.2 CONTACT CURRENT RATING:3A FOR VBUS PIN;1.25A FOR
           VCONN and GND PIN;0.25A FOR all THE OTHER PIN.
    2.3 VOLTAGE RATING:30V
    2.4 DIELECTRIC WITHSTANDING VOLTAGE:100 V R.M.S.
    2.5 INSULATION RESISTANCE 100 MEGOHMS MIN
3.MECHANICAL PERFORMANCE:
    3.1 INSERT FORCE:0.51-2.04Kg
    3.2 EXTRACT FORCE:0.82-2.04Kg
    3.3 AFTER DURABILITY:0.61-2.04Kg
    3.4 DURABILITY:10000 CYCLES
4.EVIRONMENTAL:
    4.1 OPERATION TEMPERATURE : -20°C to +85°C

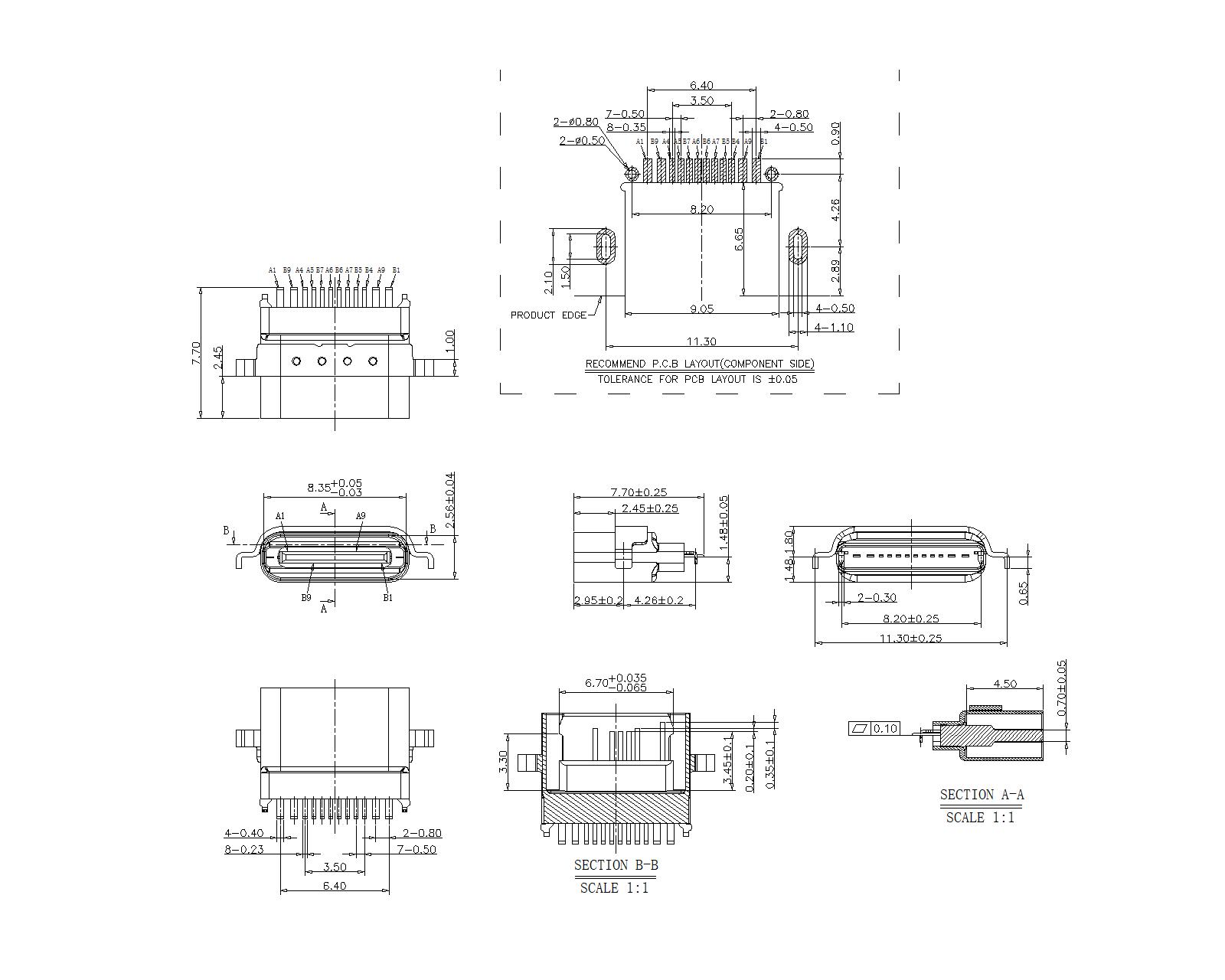

3.product picture
WU3.1FM45-S-X-C-X-X Type-C 12P Female Waterproof 90° SMT Offset Stretch the first two feet of the shell with SMT DIP Type

4.FAQ

Q: What is your term of payment?

A: 30% down payment before producing and 70% balance payment before shipping.

Q: Which payment form you can accept?

A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.

Q: Which certificate do you have?

A: CE, FDA and ISO13485.
