Type-C Female Waterproof SMT Offset Type Connector

Get Latest Price

Payment Type:

L/C,T/T,Paypal

Incoterm:

CFR,EXW

Min. Order:

1 Piece/Pieces

Transportation:

Ocean,Air,Express

Port:

shenzhen,huizhou

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: WU3.1FM34-S-F-P-X-D-E

Supply Ability & Additional Information

Packaging: reel packing

Transportation: Ocean,Air,Express

Supply Ability: 100000/month

Port: shenzhen,huizhou

Payment Type: L/C,T/T,Paypal

Incoterm: CFR,EXW

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: reel packing

1.product introduction

The Universal Serial Bus (USB) connector is an interface standard used to connect computers to external devices.It allows the connection of external devices such as mice, keyboards, storage devices, printers, etc., through a single port.With convenience and reliability, USB connectors are widely used in personal computers and mobile devices.

Today, various device types use Universal Serial Bus (USB) as the standard connection type.They have created a compact, low-cost interface that facilitates computer communication and plays a pivotal role in the electrical appliance industry.

At present, there are different types of USB connectors available, and have different functional characteristics, mainly divided into the following:

USB Type-A: Universal, common USB interface, often used to connect computers or chargers.

USB Type-B: Mainly used to connect external devices, such as printers or scanners.

USB Type-C: The latest USB interface standard, with higher data transfer speed and more features, such as two-way data transfer and charging.

Micro-USB: Commonly used in mobile devices such as smartphones and tablets.

Mini-USB: A smaller USB port, commonly used in digital cameras and MP3 players.

Lightning cable: It is a relatively durable data cable. The exterior of the data cable is made of high-strength steel material, and the durability reaches industrial level.

2.product parameter

1. ELECTRICAL CHARACTERISTICS:

1.1. RATING: 3A;

1.2. CONTACT RESISTANCE: 30 mΩ MAX.(INITIAL);

1.3. DIELECTRIC WITHSTANDING: 100V AC MIN.;

1.4. INSULATION RESISTANCE: 100MΩ MIN.;

2. DURABILITY: 10,000 CYCLES MIN.;

3. INSERTION FORCE: 5-20N;

4. EXTRACTION FORCE: 6-20N;

5. WATER PROOFNESS:THIS PRODUCT IS BASED ON IPX6.

6. PLUG INTERFACE DIMENSIONS CONFORM TO USB2.0 SPEC.

7. PACKAGING: TAPE & REEL.

3.product picture

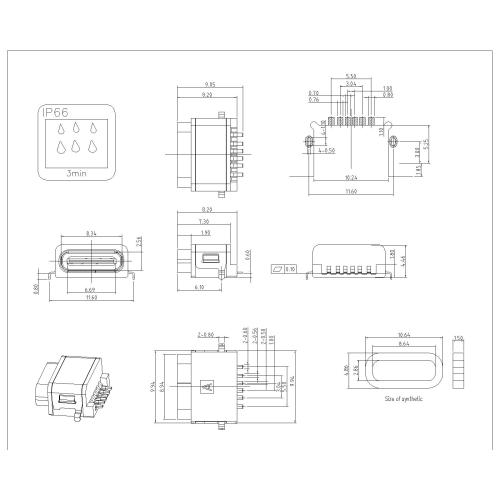

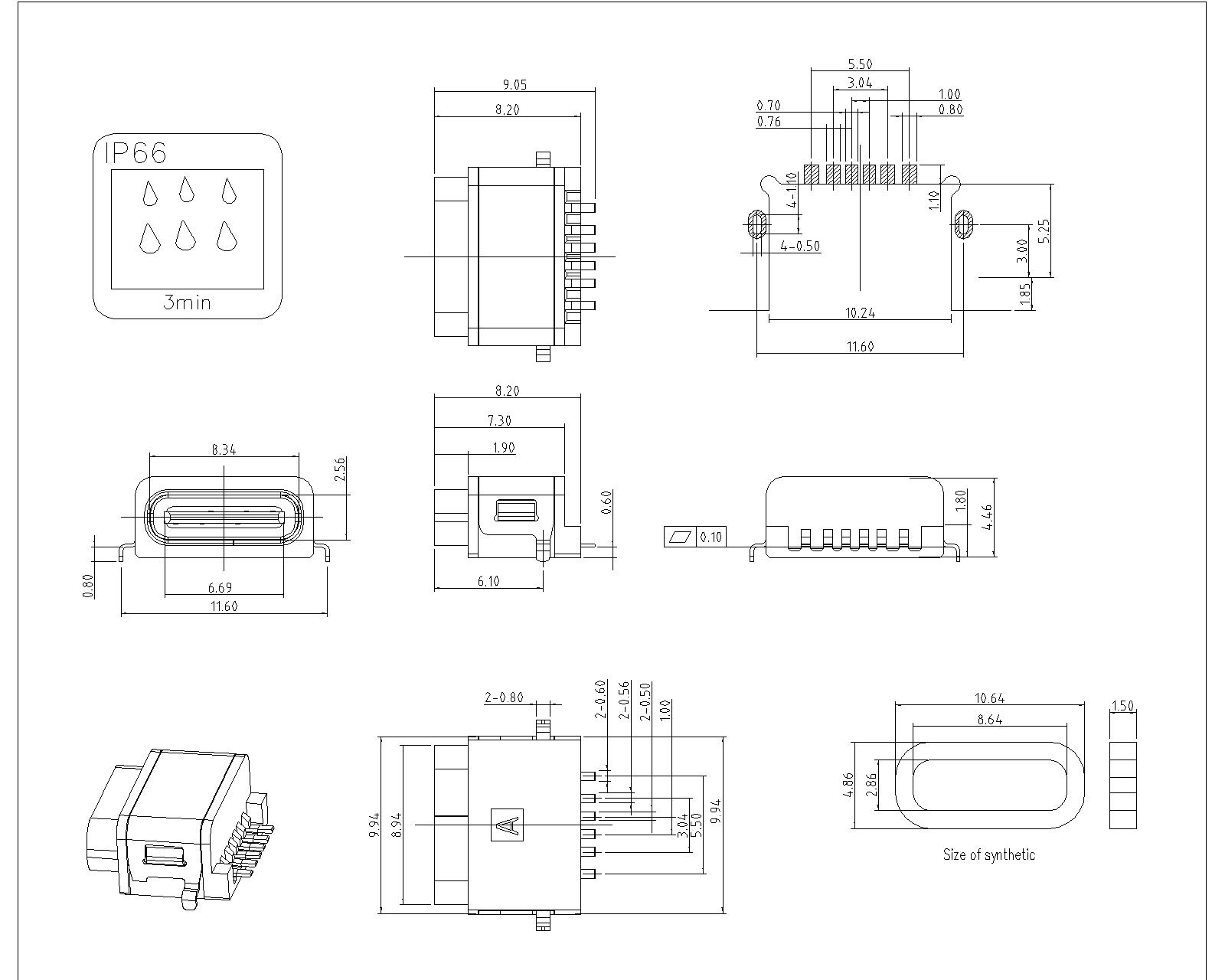

WU3.1FM34-S-F-P-X-D-E Type-C 6P Female Waterproof 90° SMT Offset Type H=8.2,With Two Legs DIP Type

4.FAQ

Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request.

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
