Type-C 6P Female Waterproof SMT H7.35

Get Latest Price

Payment Type:

L/C,T/T,Paypal

Incoterm:

CFR,EXW

1000

Min. Order:

1000 Piece/Pieces

Transportation:

Ocean,Air,Express

Port:

shenzhen,huizhou

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: WU3.1FM29-S-L-B-G0-D

Brand: Antenk

Supply Ability & Additional Information

Packaging: bag/tray packing

Transportation: Ocean,Air,Express

Place of Origin: China

Supply Ability: 100000/month

Certificate: ISO9001/ISO14001

Port: shenzhen,huizhou

Payment Type: L/C,T/T,Paypal

Incoterm: CFR,EXW

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: bag/tray packing

1.product introduction

The Universal Serial Bus (USB) connector is an interface standard used to connect computers to external devices.It allows the connection of external devices such as mice, keyboards, storage devices, printers, etc., through a single port.With convenience and reliability, USB connectors are widely used in personal computers and mobile devices.

Today, various device types use Universal Serial Bus (USB) as the standard connection type.They have created a compact, low-cost interface that facilitates computer communication and plays a pivotal role in the electrical appliance industry.

At present, there are different types of USB connectors available, and have different functional characteristics, mainly divided into the following:

USB Type-A: Universal, common USB interface, often used to connect computers or chargers.

USB Type-B: Mainly used to connect external devices, such as printers or scanners.

USB Type-C: The latest USB interface standard, with higher data transfer speed and more features, such as two-way data transfer and charging.

Micro-USB: Commonly used in mobile devices such as smartphones and tablets.

Mini-USB: A smaller USB port, commonly used in digital cameras and MP3 players.

Lightning cable: It is a relatively durable data cable. The exterior of the data cable is made of high-strength steel material, and the durability reaches industrial level.

2.product parameter

1. Material:

1.1 Housing：LCP+30%G.F

1.2 Terminal：H65，T=0.20mm；Gold Plated 1U" Over Nickel

1.3 Shell：Steel，T=0.30mm；Nickel Plated

2. Specification：

2.1 Current Rating：3.0A

2.2 Contact Resistance：40mΩ MAX

2.3 Insulation Resistance：100MΩ MIN 250V DC

2.4 Dielectric Withstand Voltage: 100V AC

2.5 Solder-ability：temperature 265±5°C，time 5±0.5s

2.6 Insertion Force：2.0kgf MAX

Withdrawal Force:0.6kgf MIN

2.7 Durability：5000次

2.8 Temperature range：-30°C～+80°C

3.product picture

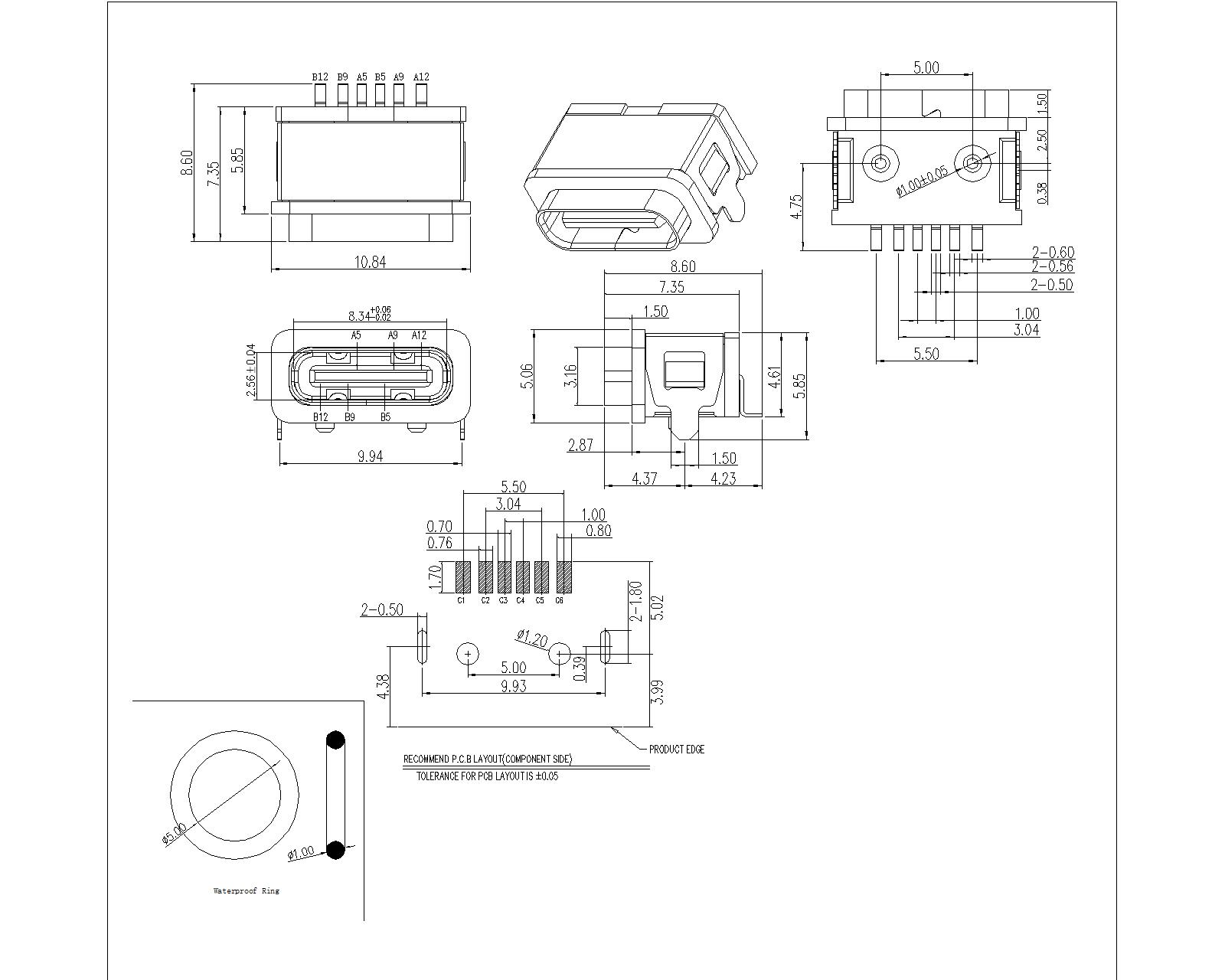

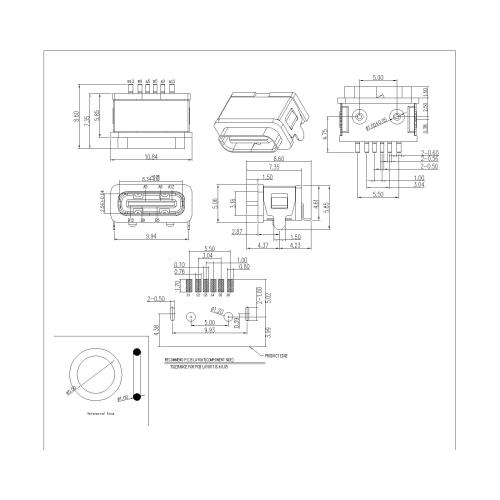

WU3.1FM29-S-L-B-G0-D Type-C 6P Female Waterproof 90° SMT H=7.35,With Two Boss,With Two Legs DIP Type

4.FAQ

Q: Do you have the test and audit service?

A: Yes, we can assist to get the designated test report for product and the designated factory audit report.

Q: What’s is your shipping service?

A: We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the shipping port.

Q: Can you provide the FBA shipping service?

A: Yes, we have the good experience in providing the professional FBA service.
