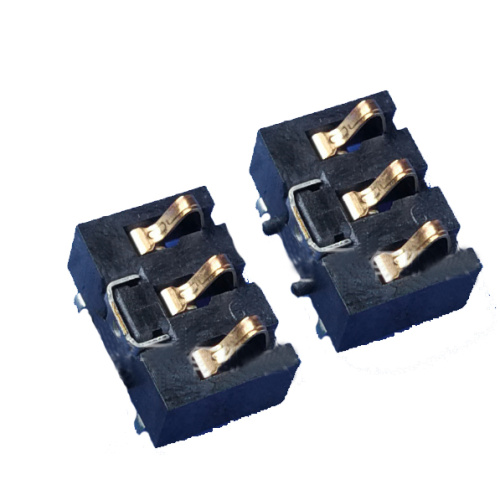

3.0mm Pitch Battery Clip Contact Connector

Specifications of 3.0mm Pitch Battery Clip Contact Connector

$500

≥1000
Piece/Pieces

Payment Type:

L/C,T/T,Paypal

Incoterm:

FOB,CFR,CIF,EXW

1000

Min. Order:

1000 Piece/Pieces

Transportation:

Ocean,Air,Express

Port:

Shenzhen

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: ABT22-03LCXD

Brand: Antenk

Place Of Origin: China

Interface Type: D-SUB(VGA)

Housing: Plastic

Pin: Brass

Poles: Other

Application: Other

Certification: CE

Gender: Male

Material: Copper

Support Card Number: Other

Operating Frequency: High Frequency

Classification: Wired Broadband Connection

Inner Packing: Tray

Supply Ability & Additional Information

Packaging: bag packing,Tube packing, reel packing

Productivity: 2000K/Month

Transportation: Ocean,Air,Express

Place of Origin: China

Supply Ability: 2000K/Month

Certificate: ISO 9001-2015

HS Code: 8536909000

Port: Shenzhen

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: bag packing,Tube packing, reel packing

The 3.0mm Pitch Battery Clip Contact Connector is a reliable and durable product designed to securely connect batteries. With its 3.0mm pitch, it ensures a tight and stable connection, preventing any power loss or interruptions. Made from high-quality materials, this connector is built to withstand long-term use and provide optimal performance. It is easy to install and compatible with various battery types. Whether you need it for personal or professional use, this battery clip contact connector is a must-have accessory for anyone looking to ensure a reliable power connection.

3.0mm Pitch Battery Clip Contact Connector

Specifications:
1.MATERIALS:
1.1 PIN:Copper alloy
1.2 Finish:Contact:gold flash all over 50-100 micro inch
(1.27-2.54 micron)nickel under plated all over
1.3 Soler tab:50-100(1.27-2.54 micron)micro inch tin 10-100
micro inch(1.27-2.54 micron)nick under plated
2.Electronical Characteristic:
2.1 Voltage rating :250 V AC min
2.2 Current rating:2.0A min
2.3 Dielectric strength :1000VAC for 1minute min
2.4 Insulation resistance:1000 meg ohm min
2.5 Contact resistance:30 milloum max
2.6 Operation temperature:-55℃ - +125℃
2.7 Product withstanding reflow soldering 260°for 10s
3.Mechanical Characteristic:
3.1 Durability:5000 cycles
3.2 Normal force at mated postion:100g min
2.3 Normal force at full stoke:110g min
