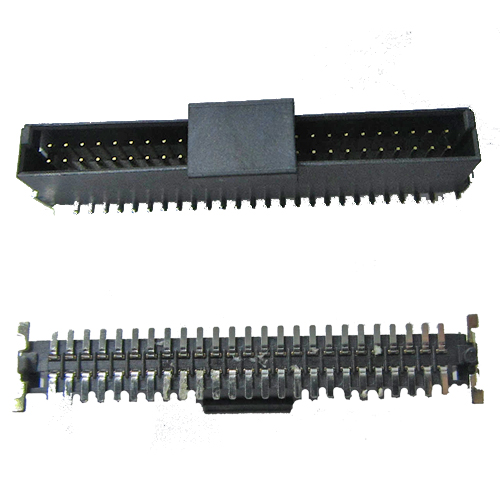

1.27mm SMC Male Vertical Type Headers

Introducing our highly sought-after 1.27mm SMC Male Vertical Type Headers, designed specifically for professionals seeking top-notch connectivity solutions. These headers boast exceptional quality and reliability, making them an ideal choice for various industries. With a compact and vertical design, they effortlessly fit into tight spaces, optimizing circuit board layouts. The SMC male connectors ensure secure and stable connections, guaranteeing uninterrupted data transmission. Crafted with precision and durability in mind, these headers are built to withstand rigorous professional environments. Trust in our 1.27mm SMC Male Vertical Type Headers to deliver unparalleled performance and streamline your projects with ease.

1.27mm SMC Male Vertical Type Headers

Specifications:
Insulator Material:High Temp,Thermoplastic,UL94V-0 Board Lock Material:Brass
Contact Material:Phospher Bronze
Contact Plating:Au (1μ"/ 5μ"/ 30μ" Min.) on Contact Area.
 Au (1μ" Min.) or Sn (100μ" Min.) on Soldertail.
 Nickle (Contact - 80μ" Min. / Soldertail - 50μ" Min.)
Board Lock Plating: Sn(100μ" Min.) over Nickel (40μ" Min.)
Current Resistance:1.2A Max.       Volage-Withestand:500V AC For 1 Minute
Conductor Resistance:Max:25mΩ     Insulation Resistance:Min:1000MΩ Min
Operating Temp.:-55°C ~ +125°C
Max.Processing Temp.:230°C for 30~60 seconds. 260°C for 10 seconds.
Durability Test:500 mating cycles  Insertion Force:0.8N Max. (Per Contact)
Withdrawal Force:0.4N Min. (Per Contact)
