1.27mm Right Angle SMT Type Connector

"1.27mm Right Angle SMT Type Connector: The Perfect Solution for When Your Boss Says 'Make It Snappy!'"

$500

≥1000
Piece/Pieces

Payment Type:

L/C,T/T,Paypal

Incoterm:

FOB,CIF,EXW

1000

Min. Order:

1000 Piece/Pieces

Transportation:

Ocean,Air,Express

Port:

Shenzhen

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: ATK-SMC01XXXXX

Brand: ANTENK

Place Of Origin: China

Interface Type: Other

Housing: Other

Pin: Other

Poles: Other

Application: Other

Gender: Other

Material: Copper

Support Card Number: Other

Operating Frequency: High Frequency

Classification: Other

Supply Ability & Additional Information

Packaging: bag packing,Tube packing, reel packing

Productivity: 2000K/month

Transportation: Ocean,Air,Express

Place of Origin: China

Supply Ability: 2000K/month

Certificate: ISO9001

HS Code: 8536909000

Port: Shenzhen

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CIF,EXW

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: bag packing,Tube packing, reel packing

Introducing the game-changer in connectivity - the 1.27mm Right Angle SMT Type Connector! Designed to revolutionize your electronic devices, this connector offers seamless integration and unmatched performance. Its compact size and right-angle design make it perfect for space-constrained applications, ensuring a snug fit and optimal functionality. With its high-quality construction and reliable connection, this connector guarantees exceptional signal transmission, minimizing data loss and maximizing efficiency. Whether you're working on PCB designs, robotics, or consumer electronics, this connector is a must-have. Upgrade your projects with the 1.27mm Right Angle SMT Type Connector and experience the future of connectivity today!

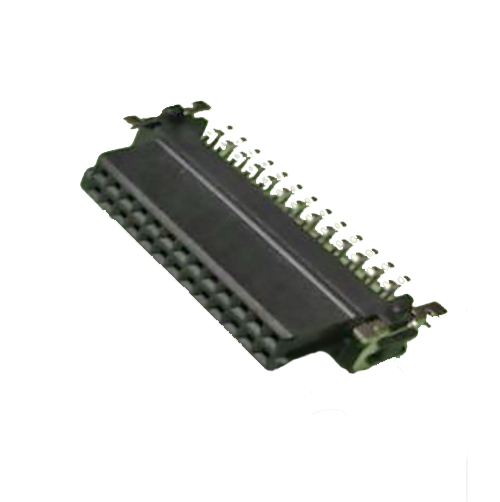

1.27 SMC Female Connector Right Angle SMT Type

Specifications:

Insulator Material:High Temp,Thermoplastic,UL94V-0 Board Lock Material:Brass
Contact Material:Phospher Bronze
Contact Plating:Au (1μ"/ 5μ"/ 30μ" Min.) on Contact Area.
Au (1μ" Min.) or Sn (100μ" Min.) on Soldertail.
Nickle (Contact - 80μ" Min. / Soldertail - 50μ" Min.)
Board Lock Plating: Sn(100μ" Min.) over Nickel (40μ" Min.)

Current Resistance:1.2A Max.

Volage-Withestand:500V AC For 1 Minute

Conductor Resistance:Max:25mΩ

Insulation Resistance:Min:1000MΩ Min
Operating Temp.:-55°C ~ +125°C
Max.Processing Temp.:230°C for 30~60 seconds. 260°C for 10 seconds.
Durability Test:500 mating cycles Insertion Force:0.8N Max. (Per Contact)
Withdrawal Force:0.4N Min. (Per Contact)

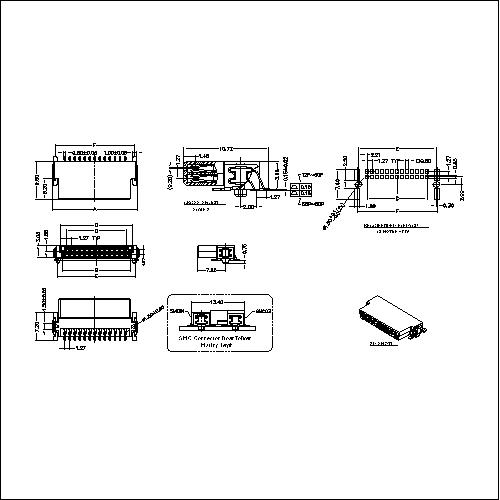

ATK-SMC01XXXXX 1.27 SMC Female Connector Right Angle SMT Type
