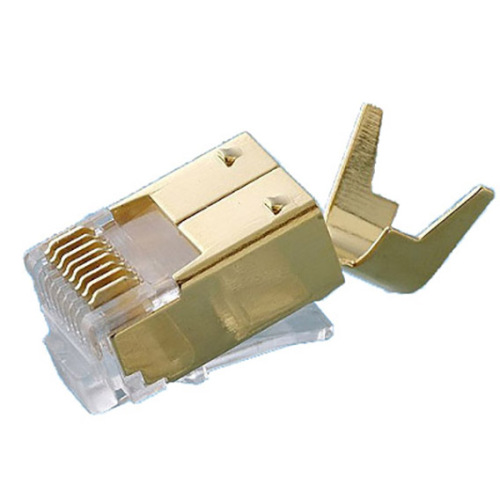

Plug 8P8C FTP CAT6 4UP 4DOWN Short Body

Introducing the Plug 8P8C FTP CAT6 4UP 4DOWN Short Body - a versatile and high-performance networking solution. Designed for seamless connectivity, this product guarantees exceptional data transfer speeds and reliable performance. With its short body design, it offers a compact and space-saving solution for any networking setup. The 8P8C FTP CAT6 connectors ensure secure and stable connections, while the 4UP 4DOWN configuration allows for convenient and efficient cable management. Whether you're setting up a home network or a professional office environment, the Plug 8P8C FTP CAT6 4UP 4DOWN Short Body is the perfect choice for all your networking needs.

Plug 8P8C FTP/CAT6/4UP 4DOWN SHORT BODY Specification

1.Electrial Characteristics:
 1.1 250V AC max at 2 Amps
 1.2 Dielectric Withstangding:1000V DC/Min.<0.5A
 1.3 Insulation Resistance:>500MΩ,1000V DC/Min
 1.4 Contact Resistance:<20MΩ
2.Mechanical Characteristics:
 2.1 Cable to Plug tensile strength:20LBs(89N)min
 2.2 Durability:2000 mating cycles
3.Material:PC
4.Inspection For Environmental Protection
  Based On The Performed Tests On Submitted Sample,
  The Test Results Are Compliant With The Limits
  Of Rohs And Reach
5.Operating Temperature:-40° - +125°

Plug 8P Serial8P CAT6 ATRP8P8C6T-XXX-002 UTP CAT6 6UP 2DOWN Dimensions:
