Plug 6P6C Serial unshielded Long Body

The Plug 6P6C Serial unshielded Long Body is a reliable and durable product designed for seamless connectivity. With its 6P6C configuration, it ensures a secure and stable connection for your devices. The long body design adds convenience and flexibility, allowing you to easily reach tight spaces. This plug is unshielded, making it suitable for various applications without compromising signal quality. Whether you need to connect telecommunication devices, computer networks, or other compatible equipment, this plug is a perfect choice. Invest in the Plug 6P6C Serial unshielded Long Body for hassle-free and efficient connections.

 Modular Plug 6P6C Description

Telephone Modular Plugs
Gold Plated Contacts
6 Positions 6 Conductors
Male Telecom Connectors
For Flat Telephone Cable

6p6c long body unshielded telephone crystal head six core telephone line connector Specification

1.Electrical Test:
 A:250V AC max at 2 Amps
 B:Dielectric with standing 500volts AC
 C:Insulation Resistance:500 mega Ω
 D:Termination Resistance:35 mega Ω
2.Mechanical:
 A:Cable to Plug tensile strength
   20LBs(89N)min
 B:Durability:1000 mating cycles

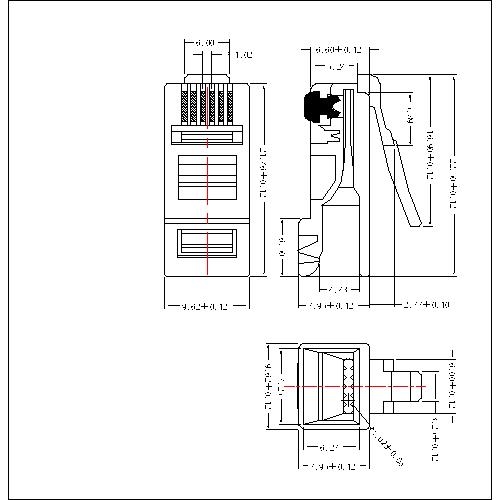

Plug 6P6C Serial  unshielded Type (Long BODY) ATRP6P6C-XXX-003 Dimensions:

Antenk Modular Plugs

The Modular Plugs consist of unshielded and shielded varieties. They offer compact size, high reliability and will meet FCC Rules and Regulations, Part 68; and the high performance Category 5 plugs exceed TIA/EIA-568A requirements. Modular Plugs accommodate both single or multicore tinsel, solid and stranded wire for telephone or non-telephone applications.
