Vertical SMT Micro USB Female Socket

Introducing our latest innovation, the Vertical SMT Micro USB Female Socket! Designed with precision and functionality in mind, this cutting-edge socket offers seamless connectivity and convenience. Its vertical design allows for easy installation and space-saving benefits, making it ideal for compact electronic devices. Crafted with high-quality materials, this socket ensures durability and long-lasting performance. With its micro USB compatibility, it effortlessly connects to a wide range of devices, providing fast and reliable data transfer and charging capabilities. Upgrade your electronic projects with the Vertical SMT Micro USB Female Socket and experience unparalleled efficiency and reliability.

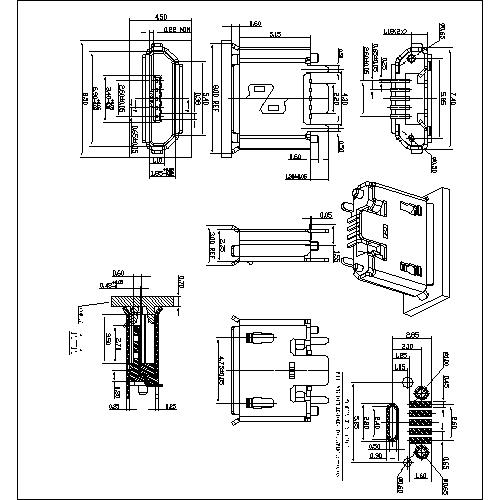

Vertical SMT Micro USB Female socket

SPECIFICATIONS:
1.Electronical Characteristics:
 1.1 Current Rating:1A
 1.2 Dielectric Withstanding Voltage:250V DC
 1.3 Contact Resistance:50MΩ Max
 1.4 Insulation Resistance:100MΩ Min 250V DC
2.Material And Plating:
 2.1 Housing:LCP UL94V-0
 2.2 Contact:C2680R-H,50u" Nickel Underplating Over
             All,1u" Gold Plated On Contact Area
 2.3 Shell:SUS,80u" Nickel Plated
3.Mechanical Characteristics:
 3.1 PIN Strength Back:0.5kgf Min
 3.2 Wetting property:Tempreture235±5°,Time5±0.5s
 3.3 Total Mating Force:3.57kgf Max
 3.4 Total Unmating Force:1.00kgf Min
 3.5 Durability:5000 Cycles
 3.6 Temperature Resistance:250±5°,Two Miniutes
 3.7 Operating Tempreture:-30° +80°
