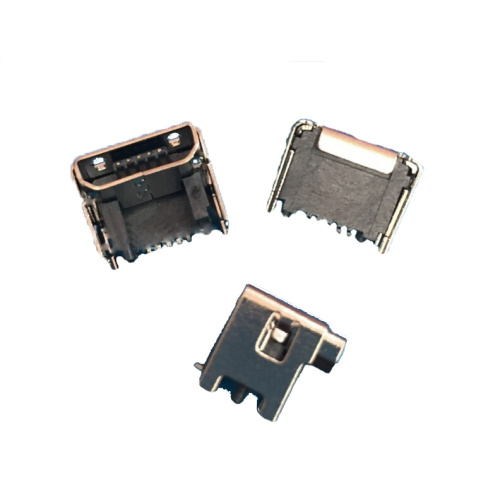

MICRO USB 5P B Type Receptacle Connector

"Request for Approval: MICRO USB 5P B Type Receptacle Connector Purchase"

$500

≥1000
Piece/Pieces

Payment Type:

T/T,Paypal

Incoterm:

FOB,CIF,EXW,FCA

1000

Min. Order:

1000 Piece/Pieces

Transportation:

Ocean,Air,Express

Port:

SHENZHEN,

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: MUFM33-XXXXX

Brand: ANTENK

Place Of Origin: China

Interface Type: Usb

Housing: Other

Pin: Brass

Poles: Other

Application: Other

Certification: Other

Gender: Male

Material: Steel

Support Card Number: Other

Operating Frequency: High Frequency

Classification: Other

Supply Ability & Additional Information

Packaging: bag packing,Tube packing, reel packing

Productivity: 2000K/month

Transportation: Ocean,Air,Express

Place of Origin: China

Supply Ability: 2000K/month

Certificate: ISO9001

HS Code: 8536909000

Port: SHENZHEN,

Payment Type: T/T,Paypal

Incoterm: FOB,CIF,EXW,FCA

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: bag packing,Tube packing, reel packing

Introducing the "ZapMaster 5000" - the Micro USB 5P B Type Receptacle Connector that will revolutionize your charging game! Tired of fumbling around with tangled cords? Say goodbye to that mess and hello to the ultimate charging experience. This connector is so tiny, it's practically invisible! It's like having a magical unicorn that effortlessly charges your devices. Plus, with its 5P B Type technology, it's like having five charging wizards working simultaneously! So, whether you're charging your phone, tablet, or even your pet rock, the ZapMaster 5000 has got you covered. Get yours today and join the charging revolution!

Micro USB 5P B Type Receptacle Connector

Specifications:

1.Electronical Characteristics:
1.1 Current rating: 1A Max.
1.2 Dielectric withstanding voltage:500V AC at sea level
1.3 Contact resistance: 50Milliohms Max.
1.4 Insulation resistance: 100MEGA ohms Min.
1.5 Temperature range: -30°C~80°C
2.Material And Plating:
2.1 Housing:LCP,UL94V-0,Black
2.2 Contact:Copper alloy,T=0.15mm,50U" min nickel
underplating overall,Gold plating selective on contact
area,50U" min tin plating on solder tail
2.3 Shell:Strainless steel,T=0.3mm,
40U" min nickel underplating overall
2.4 Cover:Strainless steel,T=0.25mm,
40U" min nickel underplating overall
3.Mechanical Characteristics:
3.1 Mating Force:35N Max.
3.2 Unmating force:10N Min.Initial,8-20N After 10000 cycles

3.3 Dirability:10000 cycles

2D Drawing:
