0.8 Floating Board to Board Connector

The 0.8 Floating Board to Board Connector is a versatile and reliable electronic component designed for seamless connectivity. With its compact size and precise construction, this connector ensures a secure and stable connection between two circuit boards. The floating feature allows for slight misalignment and ensures optimal performance even in challenging conditions. This connector is easy to install and offers excellent electrical conductivity, making it ideal for a wide range of applications including consumer electronics, automotive, and industrial equipment. Trust the 0.8 Floating Board to Board Connector for efficient and durable interconnectivity in your electronic projects.

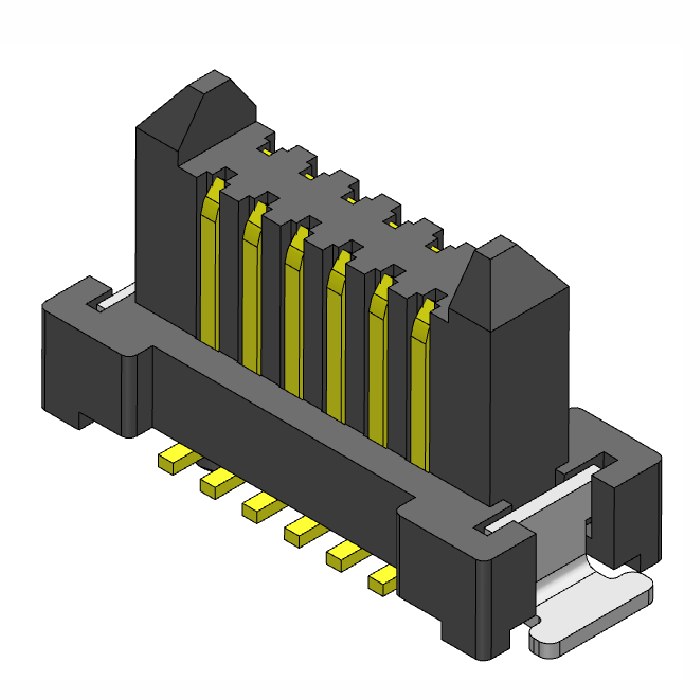

0.8MM Floating Board to Board Male Plug Connector With Post Mating Height 6.0mm

Specifications:
Current Rating:0.5Amp
Insulation Resistance:500MΩ Min.
Dielectric Withstanding Voltage:250VAC
Contact Resistance:100mΩ Max.
Operating Temperature:-40°C to +105°C
Materials
Contact Material:Bronze
Insulator Material:High Temperature Thermoplastic, UL 94V-0 LCP or The Equivalent Material

All Materials Must Meet GREENCONN Hazardous Substances Control Standards.
