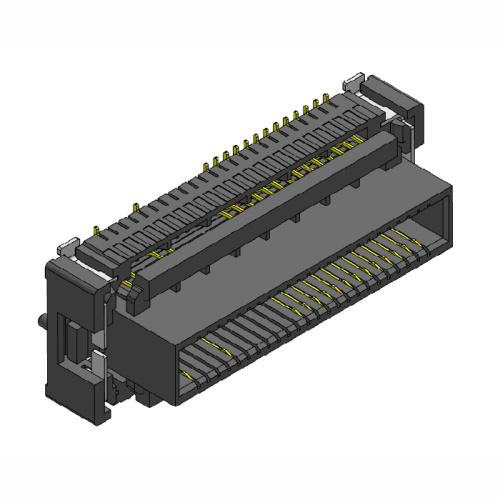

0.8MM Floating Female Board to Board

Introducing the 0.8MM Floating Female Board to Board connector - the ultimate solution for professionals who want their circuit boards to have a little "me" time! This connector is so light and airy, it practically floats on air, giving your boards the freedom they've always dreamed of. Say goodbye to boring, rigid connections and hello to a connector that's as flexible as your yoga instructor. With its 0.8MM thickness, it's like the supermodel of connectors - thin, sleek, and oh-so-glamorous. So, whether you're designing the next space shuttle or a toaster that can dance, this connector will ensure your boards stay connected in style. Get ready to witness the magic of floating boards - it's a sight that'll have even the most serious professionals cracking a smile!

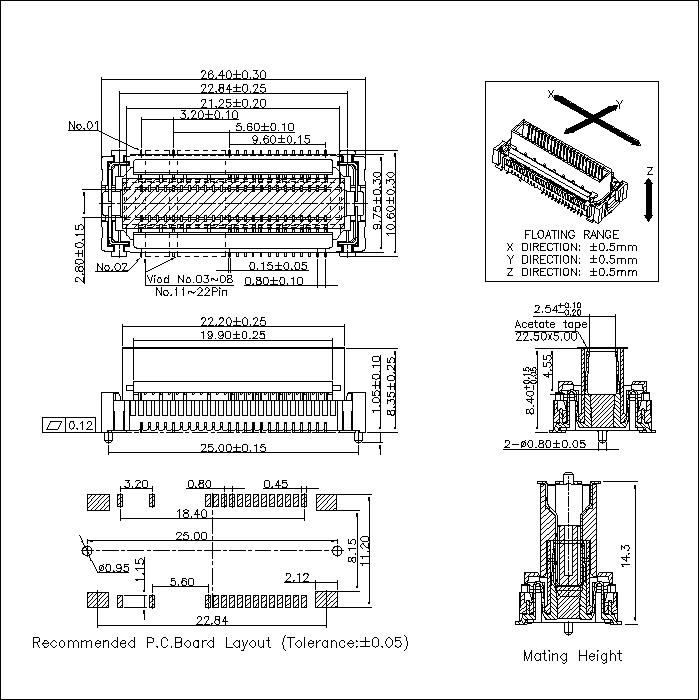

0.8MM Floating Board to Board Female Socket Connector With Post Mating Height 14.3MM

Specifications
Current Rating: 0.5Amp
Insulation Resistance: 500MΩ Min.
0.8PITCH Dielectric Withstanding Voltage:250VAC
3.2PITCH Dielectric Withstanding Voltage:300VAC
Contact Resistance:100mΩ Max.
Operating Temperature:-40°C to +105°C
Materials
Contact Material:Bronze
Insulator Material:High Temperature Thermoplastic, UL 94V-0 LCP or The Equivalent Material
All Materials Must Meet GREENCONN Hazardous Substances Control Standards.
