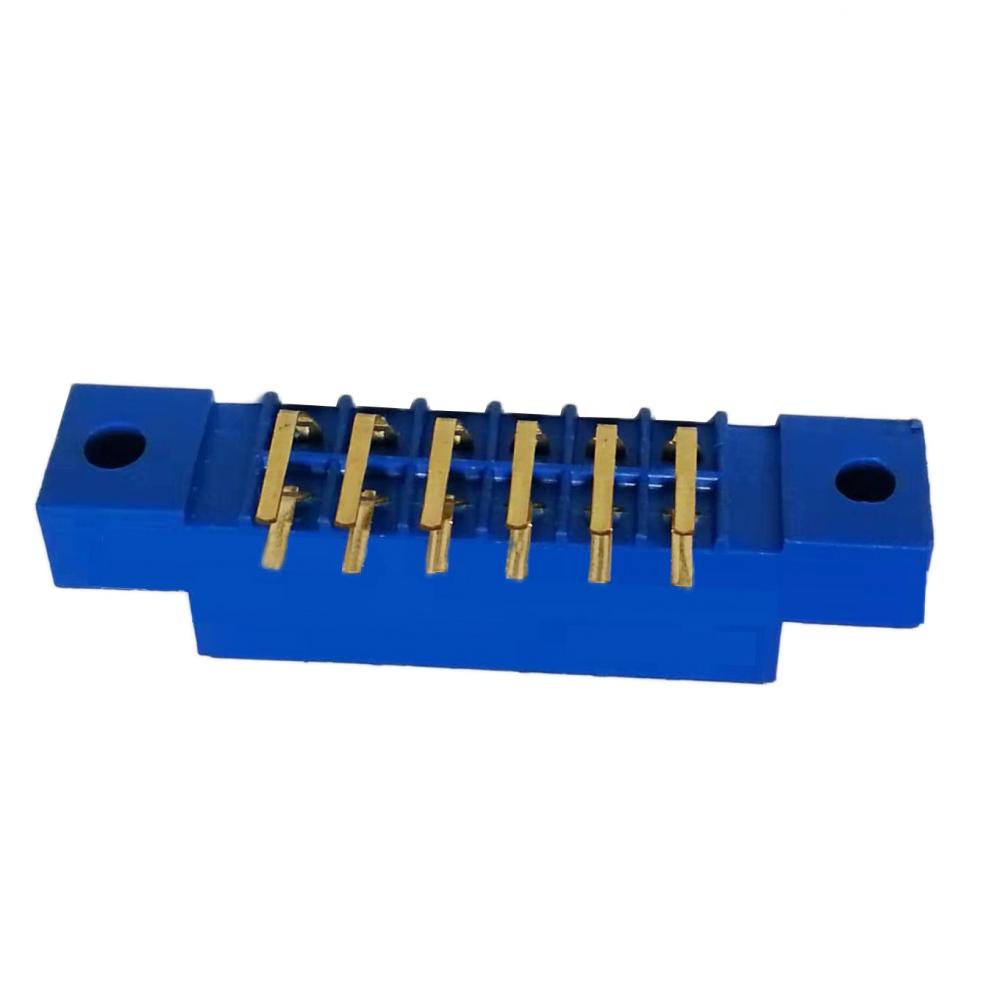

3.96mm Slot Mounted Ears DIP Connectors

Introducing our latest innovation, the 3.96mm Slot Mounted Ears DIP Connectors! These connectors are a game-changer in the world of electronic components. With their sleek design and superior functionality, they are perfect for various applications in the electronics industry. The slot-mounted ears ensure easy and secure installation, saving valuable time and effort. These connectors offer exceptional durability and reliability, guaranteeing a long lifespan for your electronic devices. With a 3.96mm pitch, they provide excellent connectivity and signal transmission. Say goodbye to connectivity issues and hello to seamless performance with our 3.96mm Slot Mounted Ears DIP Connectors. Upgrade your electronic projects today!

3.96mm Slot Right Angle DIP Connectors with mounting ears

Specifications:
1.CURRENT RATING:3AMP
2.DIELECTRIC WITHSTANDING VOLTAGE:1000V AC RMS 60Hz. 1MIN
3.CONTACT RESISTANCE:20 MILLIOHMS MAX
4.INSULATION RESISTANCE:5000 MEGOHMS MIN.At 500V DC
5.OPERATION TEMPERATURE:-55°C TO +105°C
6.INSERTION FORCE:0.4Kgf MAX.Per Pair
Insulator:PBT(UL94V-0)
CONTACT:BRASS OF PHOSPHOR BRONZE GOLD PLATED ON CONTACT AREA
TIN PLATED ON SOLDER TAILS,OVER NICKEL

2D Drawing:
