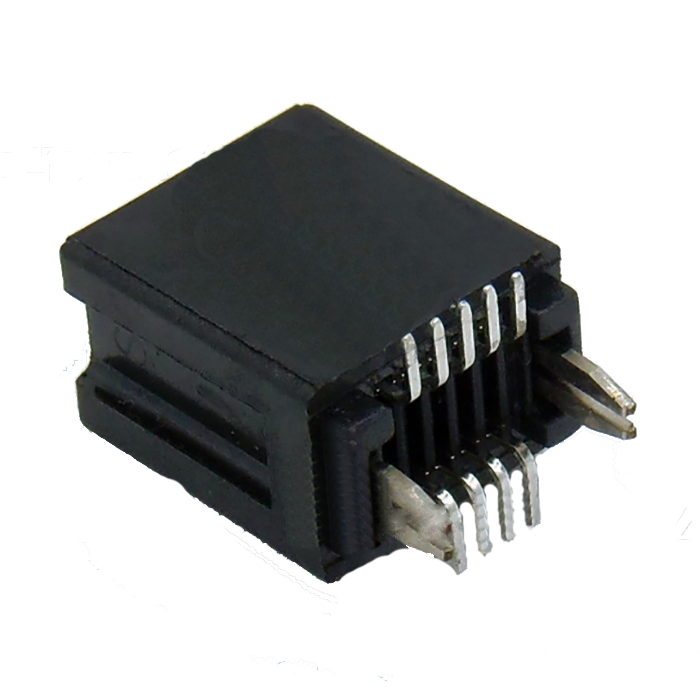

2.54mm Pitch EDGE Slot SMT Connector

"Enhancing Connectivity: Introducing the 2.54mm Pitch EDGE Slot SMT Connector for Improved Performance"

$500

≥1000
Bag/Bags

Payment Type:

T/T,Paypal

Incoterm:

FOB,CIF,EXW,FCA

1000

Min. Order:

1000 Bag/Bags

Transportation:

Ocean,Air,Express

Port:

SHENZHEN

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: ECM-XBWS0XBXXX

Brand: ANTENK

Place Of Origin: China

Interface Type: Ac/Dc

Housing: Plastic

Pin: Brass

Poles: Other

Application: Other

Certification: Other

Material: Brass

Support Card Number: Other

Operating Frequency: High Frequency

Classification: Other

Gender: Male

Supply Ability & Additional Information

Packaging: bag packing,Tube packing, reel packing

Productivity: 2000K/month

Transportation: Ocean,Air,Express

Place of Origin: China

Supply Ability: 2000K/month

Certificate: ISO9001

HS Code: 8536909000

Port: SHENZHEN

Payment Type: T/T,Paypal

Incoterm: FOB,CIF,EXW,FCA

Packaging & Delivery

Selling Units:: Bag/Bags

Package Type:: bag packing,Tube packing, reel packing

The 2.54mm Pitch EDGE Slot SMT Connector is a versatile and reliable electronic component designed for seamless integration into various electronic devices. With a compact size and a pitch of 2.54mm, this connector ensures a secure and stable connection between circuit boards. It features an EDGE slot design, allowing for easy insertion and removal of the connector. The surface mount technology (SMT) ensures hassle-free installation on PCBs, saving time and effort. This connector is manufactured using high-quality materials, ensuring durability and long-lasting performance. Whether used in computers, telecommunication devices, or other electronic applications, the 2.54mm Pitch EDGE Slot SMT Connector is a reliable choice for your connectivity needs.

2.54mm EDGE Slot SMT W/O CLIP AND CUP Connectors

Specifications:
1.CURRENT RATING:3AMP
2.DIELECTRIC WITHSTANDING VOLTAGE:1000V AC RMS 60Hz. 1MIN
3.CONTACT RESISTANCE:20 MILLIOHMS MAX
4.INSULATION RESISTANCE:5000 MEGOHMS MIN.At 500V DC
5.OPERATION TEMPERATURE:-55°C TO +85°C
6.INSERTION FORCE:0.4Kgf MAX.Per Pair
Withdrawal Force:0.25Kgf MAX.Per Pair
Insulator:PBT (UL94V-0)
CONTACT:BRASS OR PHOSHHOR BRONZE GOLG PLATED ON
CONTACT AREA
TIN PLATED ON SOLDER TAILS,OVER NICKEL
