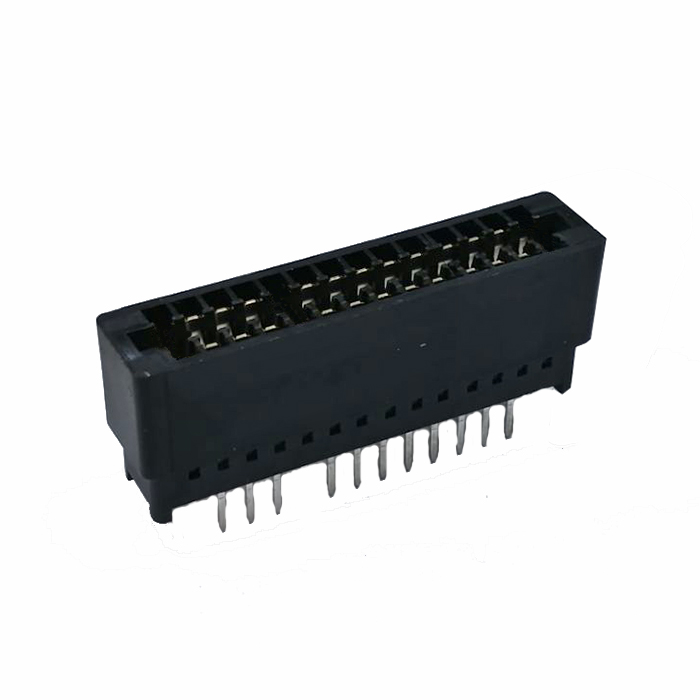

2.54mm 28P Slot Straight DIP Empty PIN Connectors

"Essential Tools for Precision Electronics: Explore the Versatility of 2.54mm 28P Slot Straight DIP Empty PIN Connectors"

$500

≥1000
Bag/Bags

Payment Type:

T/T,Paypal

Incoterm:

FOB,CIF,EXW,FCA

1000

Min. Order:

1000 Bag/Bags

Transportation:

Ocean,Air,Express

Port:

SHENZHEN,

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: ECCS-28BXS0PB06

Brand: ANTENK

Place Of Origin: China

Interface Type: Ac/Dc

Housing: Plastic

Pin: Brass

Poles: Other

Application: Other

Certification: Other

Gender: Male

Material: Brass

Support Card Number: Other

Operating Frequency: High Frequency

Classification: Other

Supply Ability & Additional Information

Packaging: bag packing,Tube packing, reel packing

Productivity: 100000K/month

Transportation: Ocean,Air,Express

Place of Origin: China

Supply Ability: 100000K/month

Certificate: ISO9001

HS Code: 8536909000

Port: SHENZHEN,

Payment Type: T/T,Paypal

Incoterm: FOB,CIF,EXW,FCA

Packaging & Delivery

Selling Units:: Bag/Bags

Package Type:: bag packing,Tube packing, reel packing

Introducing our high-quality 2.54mm 28P Slot Straight DIP Empty PIN Connectors, designed to meet all your connectivity needs. These connectors are meticulously crafted with precision to ensure seamless and reliable connections. With 28 pins, they offer ample space for multiple connections, making them perfect for various electronic applications. The straight DIP design allows for easy insertion and removal, saving you time and effort. These connectors are empty, providing you with the flexibility to customize them according to your specific requirements. Trust our 2.54mm 28P Slot Straight DIP Empty PIN Connectors to deliver exceptional performance and durability for all your connectivity projects.

2.54mm 28P Slot Straight DIP Pumping and Plugging Connectors

SPECIFICATION
1.CURRENT RATING:3AMP
2.DIELECTRIC WITHSTANDING VOLTAGE:1000V AC RMS 60Hz. 1MIN
3.CONTACT RESISTANCE:20 MILLIOHMS MAX
4.INSULATION RESISTANCE:5000 MEGOHMS MIN.At 500V DC
5.OPERATION TEMPERATURE:-45°C TO +200°C
6.INSERTION FORCE:0.4Kgf MAX.Per Pair
Withdrawal Force:0.25Kgf Mac.Per Pair
Insulator:PBT+G.F.(UL94V-0)
CONTACT:BRASS OF PHOSPHOR BRONZE GOLD PLATED ON CONTACT AREA
TIN PLATED ON SOLDER TAILS,OVER NICKEL
