Mini display port plug(Straight straddle type)

"Efficient and Versatile Mini Display Port Plug for Seamless Connectivity"

$500

≥1000
Piece/Pieces

Payment Type:

L/C,Paypal,T/T

Incoterm:

FOB,CIF,EXW

1000

Min. Order:

1000 Piece/Pieces

Transportation:

Ocean,Air

Port:

shenzhen

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Company Overview
Company Photos
Production Certification

< >

Overview

Product Attributes

Model No.: MDP-MXX02

Brand: antenk

Place Of Origin: China

Application: Pcb

Gender: Female

Contacts: 20p

Supply Ability & Additional Information

Packaging: reel & tape,bag

Productivity: 100000/month

Transportation: Ocean,Air

Place of Origin: china

Supply Ability: 100000/month

Certificate: iso9001

HS Code: 8536909000

Port: shenzhen

Payment Type: L/C,Paypal,T/T

Incoterm: FOB,CIF,EXW

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: reel & tape,bag

Introducing our Mini Display Port Plug, the perfect solution for seamless connectivity between your devices. Designed with precision and functionality in mind, this straight straddle type plug ensures a secure and stable connection for your Mini Display Port-enabled devices. With its compact size and durable construction, it easily fits into tight spaces while providing exceptional performance. Whether you're connecting your laptop to a monitor, projector, or HDTV, our Mini Display Port Plug guarantees high-quality video and audio transmission. Say goodbye to unreliable connections and experience the convenience and reliability of our Mini Display Port Plug. Upgrade your connectivity today!

Mini Display Port receptacle (straddle 1.6mm straight legs)

notes :
material
body:LCP,UL94V-0 rated;color:white insertion
(molding):LCP,UL 94V-0 rated:
shell:brass.
plating:nickel plating
contact:phosphor bronze
plating:tin plating on contact area:
electrical specification
operation voltage 30 VAC max.
current rating :0.5 A per contact.
contact resistance:30 mΩ max.
insulation resistance:100 MΩ min.
dielectric withstanding voltage:500 V AC min.
mechanical
insertion force:4.5kg/f max.
withdrawal force:1.0~4.0kg/f
durability:10000 cycles.
environmental
operating temperature:-40℃ to +80℃

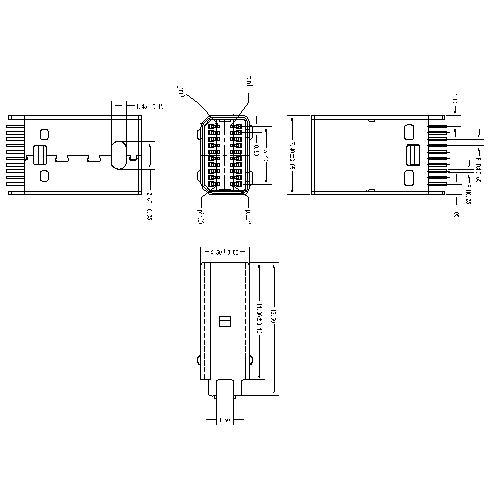

Mdp Mxx02 Mini Display Port Plug Straight Straddle Type Jpg

Product Categories : Display Port And Mini Display Port

Company Overview

ANTENK Electronics Co., Ltd(with the trade mark of "Antenk") was established in 2007. We specialize in producing precise Board to Board,Automotive Connector,Terminal Block Series,Battery Connector,Din41612 Connector,Round hole row needle, round hole row mother, IC socket,battery holders Series,Male Pin Headers Series,Female Pin Headers Series,Modular Jack RJ45 Series,D-Subminiature Connectors Series,Box Header Connector,IDC Socket Connector,SCSI Connectors Series, Power Signal Connector, Wire to Board Connector, Modular Jack, Terminal Block, Wire Harnesses,Cable Assemblies, I/O Connector. Through 15 years of development, we have grown into a leading manufacturer in Asia. We have passed IATF16949:2016. ISO9001:2008 and ISO1400 Certification as well. Mostly of our products have been approved by UL, SGS and RoHS. Since its foundation, ANTENK sticks to the principle of specialization and tries its best to supply customers with products of high quality at competitive prices, by the precision high-speed punch molding, precise plastic injection molding and automatic assembly with the support of a skilled R&D and management team. The factory, with 12000M² floor plant, has about 250 employees and owns 15 sets precision molding devices, 9 sets Japan & Taiwan precision high-speed punch machines, more than 300 sets Various types of plastic molds and more than 100 sets hardware terminal molds, 10 sets laboratory testing equipments and over 50 sets machines for automatic assembly that can provide customer with over 10 types and 10,000 different specification connectors parts, company have import-export handles rights. And up to 70% products are exported to Euro-American countries. Mainly customers: Foxconn, Flextronics, Molex, Amphenol, FCI, Siemens etc. famous companies.
