Display Port Female SMT With Boss

"Enhance Your Display Connectivity with Display Port Female SMT With Boss"

$500

≥1000
Piece/Pieces

Payment Type:

L/C,Paypal,T/T

Incoterm:

FOB,CIF,EXW

1000

Min. Order:

1000 Piece/Pieces

Transportation:

Ocean,Air

Port:

shenzhen

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Company Overview
Company Photos
Production Certification

< >

Overview

Product Attributes

Model No.: DP-FXX10

Brand: antenk

Place Of Origin: China

Application: Pcb

Gender: Female

Contacts: 20p

Supply Ability & Additional Information

Packaging: reel & tape,bag

Productivity: 100000/month

Transportation: Ocean,Air

Place of Origin: china

Supply Ability: 100000/month

Certificate: iso9001

HS Code: 8536909000

Port: shenzhen

Payment Type: L/C,Paypal,T/T

Incoterm: FOB,CIF,EXW

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: reel & tape,bag

Introducing our latest innovation, the Display Port Female SMT with Boss. This cutting-edge product is designed to revolutionize your connectivity experience. With its sleek and compact design, it seamlessly connects your devices, ensuring high-quality video and audio transmission. The built-in boss feature guarantees a secure and stable connection, eliminating any worries of accidental disconnection. Whether you're a professional gamer, content creator, or a business executive, this Display Port Female SMT with Boss is a must-have accessory for your setup. Upgrade your connectivity game and enjoy uninterrupted, crystal-clear visuals with this exceptional product.

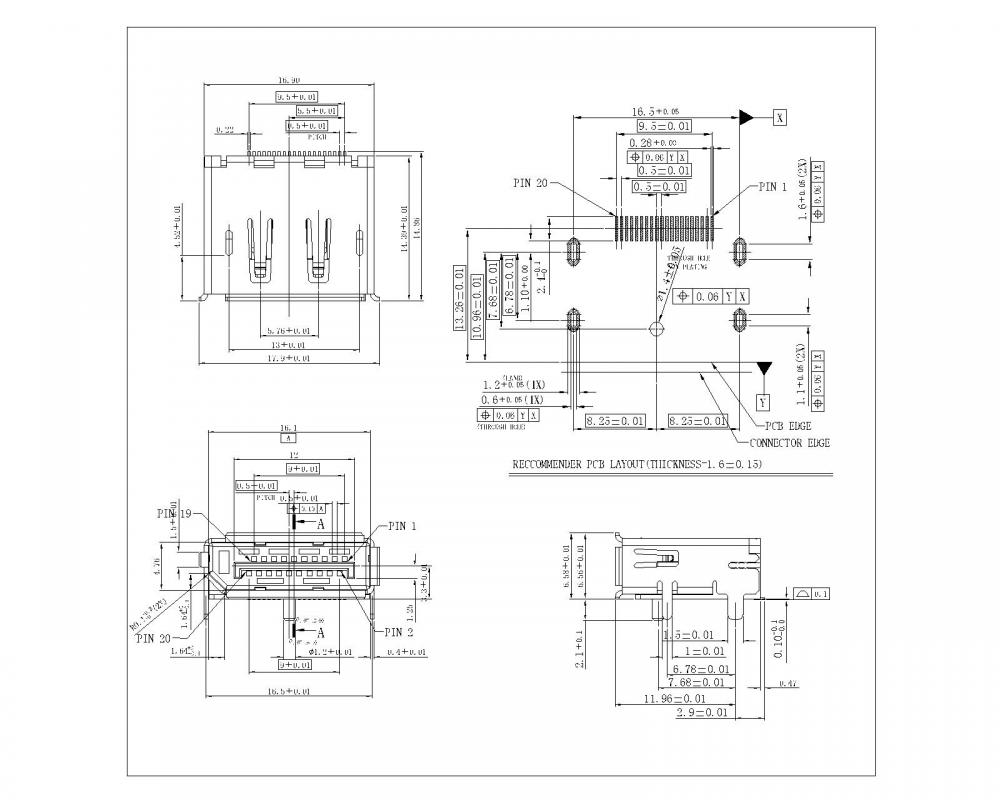

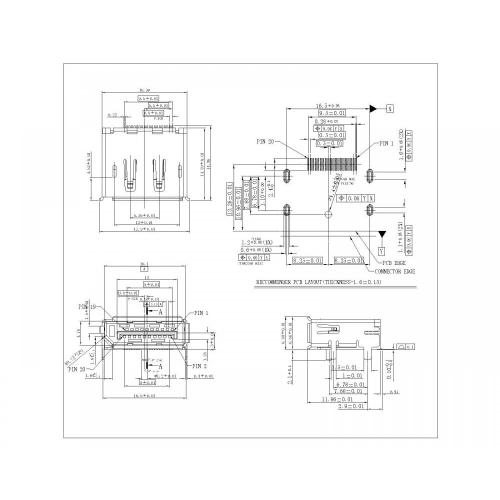

Display Port Female SMT With Boss

NOTE:
1.MATERIAL :
1.1 HOUSING: LCP. UL94V-0
COLOR: BLACK.
1.2 CONTACT: C2680 T=O 20mm.
1.3 SHIELD: C2680 T=0.40mm.
1.4 COVER: LCP UL94V-0
2.FINISH:
2.1 CONTACT: COLD(1U") PLATING IN CONTACT AREA.
80u"MIN Tin PLATED IN SOLDER AREA,
50u" MIN. NICKEL UNDERPLATED OVERALL
2.2 SHIELD: 50u" MIN. NICKEL UNDERPLATED OVERALL.
3.MECHANICAL CHARACTERISTICS
5.1 RATING CURRENT: 0.5A
3.2 RATING VOLTAGE: 40V
3.3 CONTACT RESISTANCE: 40 m0 MAX
3.4 INSULATION RESISTANCE:
o UNMATED: 100MO MIN AT 500 VDC
b. MATED:
10M OHMS MIN AT 150 VDC
3.5 DIELECTRIC WITHSTANDING VOLTAGE: 500V AC/ 1MINUTE
3.6 DURABILTY: 10000 CYCLES.
3.7 MATING FORCE: 4.5KGF MAX.
UNMATING FORCE: 1~4 KGF.
3.5 OPERATING TEMPERATURE: -20°C-+85°C
3.9 STORAGE TEMPERATURE: - 200°C-+65°C
4. NOTES:
4.1 ALL COMPONENTS ARE RoHS COMPLIANT
4.2 RESISTANCE TO SOLDERING HEAT: 265C FOR 10 SECONDS.

Product Categories : Display Port And Mini Display Port
