Display Port FemalePlain Top Without Edge Curl

"Efficient and Reliable Display Port Female SMT Solution for Seamless Connectivity"

$500

≥1000
Piece/Pieces

Payment Type:

L/C,Paypal,T/T

Incoterm:

FOB,CIF,EXW

1000

Min. Order:

1000 Piece/Pieces

Transportation:

Ocean,Air

Port:

shenzhen

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Company Overview
Company Photos
Production Certification

< >

Overview

Product Attributes

Model No.: DP-FXX15

Brand: antenk

Place Of Origin: China

Application: Pcb

Gender: Female

Contacts: 20p

Supply Ability & Additional Information

Packaging: reel & tape,bag

Productivity: 100000/month

Transportation: Ocean,Air

Place of Origin: china

Supply Ability: 100000/month

Certificate: iso9001

HS Code: 8536909000

Port: shenzhen

Payment Type: L/C,Paypal,T/T

Incoterm: FOB,CIF,EXW

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: reel & tape,bag

Introducing our latest innovation in display port technology - the Display Port Female SMT Plain Top Without Edge Curl. This cutting-edge product offers seamless connectivity and enhanced performance for high-resolution displays. Designed with precision and reliability in mind, our display port features a female SMT connector that ensures a secure and stable connection. With its plain top design, it eliminates edge curling, providing a sleek and professional appearance. Compatible with a wide range of devices, this display port is perfect for businesses seeking a superior visual experience. Upgrade your display setup with our Display Port Female SMT Plain Top Without Edge Curl and enjoy unrivaled clarity and performance.

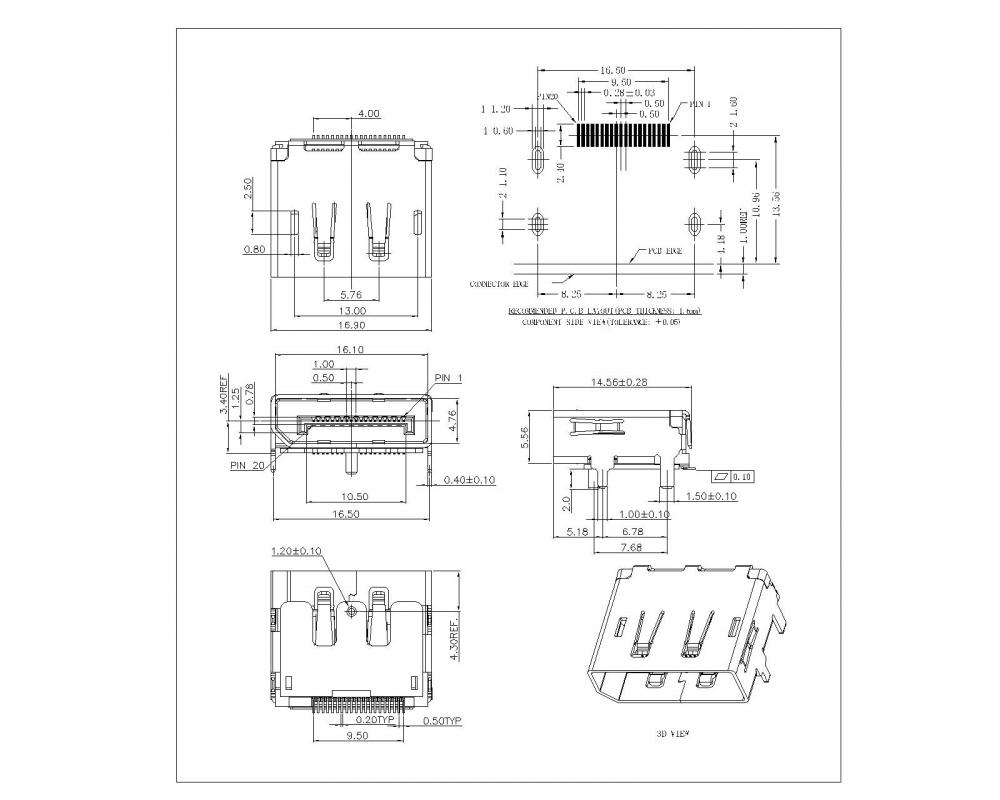

Display Port Female SMT Plain Top Without Edge Curl

NOTE:
1.MATERIAL :
1.1 HOUSING: LCP. UL94V-0
COLOR: BLACK.
1.2 CONTACT: C2680 T=O 20mm.
1.3 SHIELD: C2680 T=0.40mm.
1.4 COVER: LCP UL94V-0
2.FINISH:
2.1 CONTACT: COLD(1U") PLATING IN CONTACT AREA.
80u"MIN Tin PLATED IN SOLDER AREA,
50u" MIN. NICKEL UNDERPLATED OVERALL
2.2 SHIELD: 50u" MIN. NICKEL UNDERPLATED OVERALL.
3.MECHANICAL CHARACTERISTICS
5.1 RATING CURRENT: 0.5A
3.2 RATING VOLTAGE: 40V
3.3 CONTACT RESISTANCE: 40 m0 MAX
3.4 INSULATION RESISTANCE:
o UNMATED: 100MO MIN AT 500 VDC
b. MATED:
10M OHMS MIN AT 150 VDC
3.5 DIELECTRIC WITHSTANDING VOLTAGE: 500V AC/ 1MINUTE
3.6 DURABILTY: 10000 CYCLES.
3.7 MATING FORCE: 4.5KGF MAX.
UNMATING FORCE: 1~4 KGF.
3.5 OPERATING TEMPERATURE: -20°C-+85°C
3.9 STORAGE TEMPERATURE: - 200°C-+65°C
4. NOTES:
4.1 ALL COMPONENTS ARE RoHS COMPLIANT
4.2 RESISTANCE TO SOLDERING HEAT: 265C FOR 10 SECONDS.

DP-FXX15 Display Port SMT Plain Top Without Edge Curl
